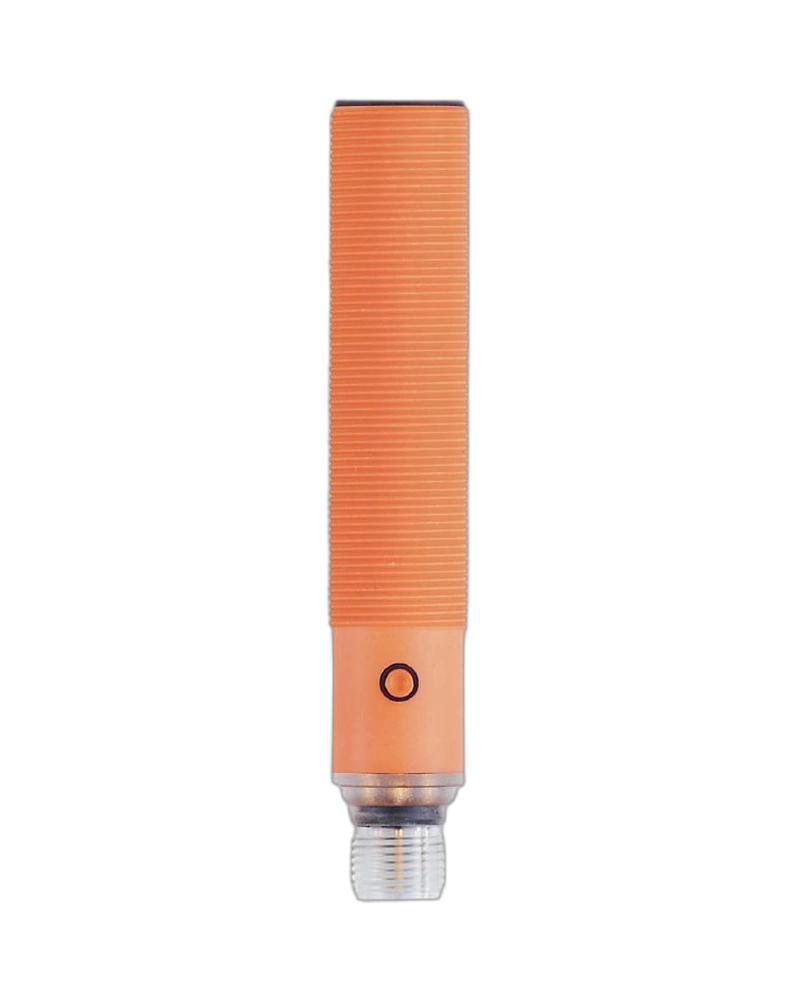

UGT206 is a long-range IFM ultrasonic sensor with IO-Link communication for advanced industrial automation. It provides detection up to approximately 2200 mm using a 200 x 200 mm reference target and offers programmable switching outputs. Ultrasonic sensing enables non-contact detection independent of object colour and surface characteristics. The sensor includes parameterisation functions, visible indication and an M18 threaded housing for machine integration.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
UGT206 is designed for applications where extended ultrasonic detection distance and flexible machine integration are required. Its non-contact sensing principle allows reliable detection without depending on optical contrast. The sensor is particularly suitable for industrial automation tasks involving long-distance object monitoring.
The sensor is designed for a sensing range of up to approximately 2200 mm with the specified target. This makes it useful for conveyors, material handling systems and large machine installations. Ultrasonic operation provides a practical solution for targets that may be difficult to detect using conventional optical sensors.
IO-Link communication supports parameterisation, diagnostics and process-data access. The sensor offers programmable switching behaviour and teach functions, allowing engineers to configure detection according to machine requirements. This improves flexibility during installation and supports easier maintenance.
UGT206 uses an M18 threaded housing and provides visible LED indication for switching and echo status. Its industrial design supports continuous use in automated equipment. The sensor is suitable for production lines, logistics systems and material-handling applications where reliable long-range detection is required.
Up to 2200 mm sensing range
IO-Link communication
Programmable switching outputs
PNP electrical design
NO/NC configurable function
Non-contact ultrasonic detection
Temperature compensation
M18 threaded construction
Visible LED indication
Industrial automation suitability
Long-range object detection
Conveyor monitoring
Material handling
Machine automation
Object positioning
Packaging systems
Production line monitoring
Warehouse automation
Distance monitoring
Industrial process control
| Specification | UGT206 – UG-02200GOKG/IO-LINK/US |
|---|---|
| Product type | Ultrasonic sensor |
| Brand | IFM |
| Model | UG-02200GOKG/IO-LINK/US |
| Sensing range | 200...2200 mm |
| Reference target | 200 x 200 mm |
| Electrical design | PNP |
| Output function | NO/NC parameterisable |
| Communication | IO-Link |
| Operating voltage | 10...30 V DC |
| Current consumption | 55 mA |
| Protection class | III |
| Reverse polarity protection | Yes |
| Power-on delay | <0.3 s |
| Converter frequency | 200 kHz |
| Switching frequency | 2 Hz |
| Switching output current | 100 mA |
| Max. voltage drop | 2.2 V |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Aperture angle | 14° ±2° |
| Hysteresis | <2% |
| Switch point drift | -2...2% |
| Repeatability | 1% |
| Protection rating | IP67 |
| Ambient temperature | -20...70 °C |
| Manufacturer | IFM electronic |
