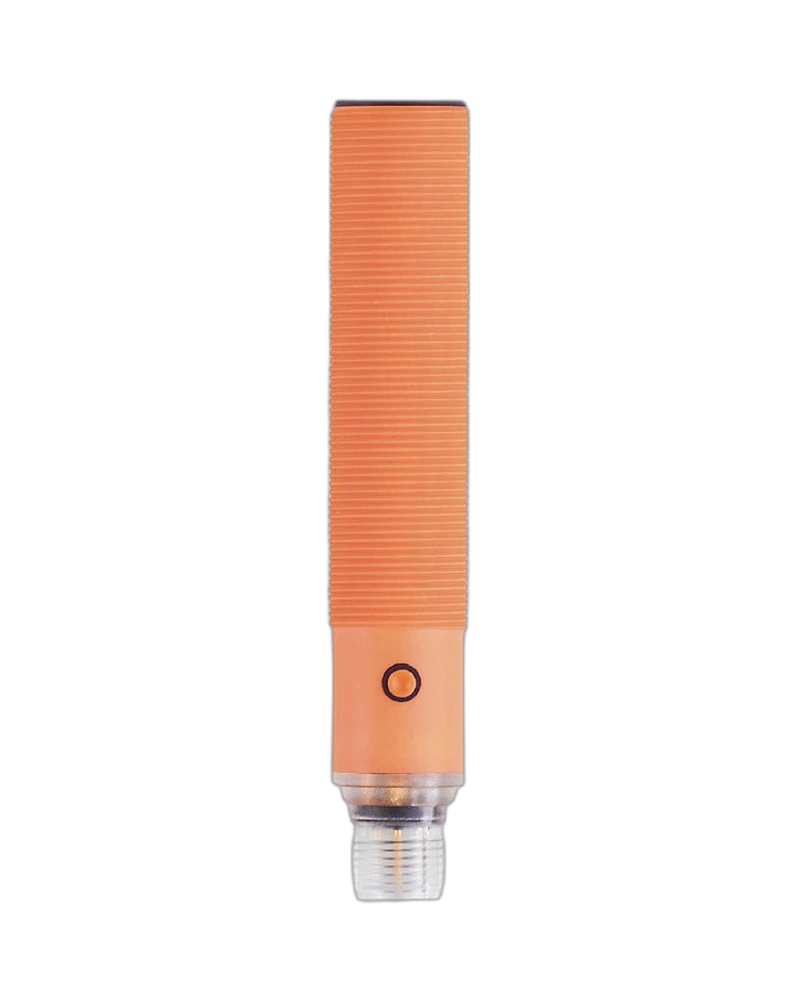

UGT205 is an IFM IO-Link ultrasonic sensor intended for extended-range industrial object detection and measurement. It provides non-contact sensing over approximately 150 to 1600 mm and combines programmable switching with an analogue voltage output. IO-Link supports convenient parameterisation and diagnostics, while the M18 threaded housing simplifies installation. The sensor is suitable for automated machinery, conveyor systems, packaging lines, material handling and distance-monitoring applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
UGT205 provides ultrasonic sensing for industrial applications requiring reliable detection over an extended range. Its non-contact operating principle makes it suitable for targets with different colours and surface characteristics. The threaded housing provides a practical mounting arrangement for machine builders and automation engineers.
The sensor offers a 150 to 1600 mm sensing range with the specified reference target. Its ultrasonic technology enables dependable detection where optical sensing may be affected by target appearance. This makes it useful for position monitoring, object presence detection and distance-related automation functions.
UGT205 provides IO-Link communication together with a programmable switching signal and analogue voltage output. The combination enables both switching control and distance-related process information. Parameterisation through IO-Link can simplify commissioning and allow sensor functions to be adapted to changing machine requirements.
The sensor is designed for integration into automated machinery and control systems. Its programmable switching function, analogue signal and IO-Link communication provide flexible control options. The compact M18 threaded construction supports installation on conveyors, packaging machines and material-handling equipment.
150...1600 mm sensing range
IO-Link communication
Analogue 0...10 V output
Programmable switching output
PNP electrical design
NO/NC configurable output
M18 threaded housing
Non-contact detection
Teach function
Industrial automation compatibility
Distance measurement
Object detection
Conveyor monitoring
Packaging machinery
Material handling
Machine positioning
Production automation
Process monitoring
Level-related applications
Industrial control systems
| Specification | UGT205 – UG-01600E2KG/IO-LINK/US |
|---|---|
| Product type | Ultrasonic sensor |
| Brand | IFM |
| Model | UG-01600E2KG/IO-LINK/US |
| Sensing range | 150...1600 mm |
| Reference target | 200 x 200 mm |
| Electrical design | PNP |
| Output function | NO/NC parameterisable |
| Digital outputs | 1 |
| Analogue outputs | 1 |
| Analogue output | 0...10 V |
| Operating voltage | 10...30 V DC |
| Current consumption | 55 mA |
| Protection class | III |
| Reverse polarity protection | Yes |
| Power-on delay | <0.3 s |
| Converter frequency | 230 kHz |
| Switching frequency | 3 Hz |
| Output current | 100 mA |
| Communication | IO-Link |
| Minimum analogue load | 3000 Ω |
| Short-circuit protection | Yes |
| Overload protection | Yes |
| Housing | Threaded |
| Thread | M18 x 1 |
| Manufacturer | IFM electronic |
