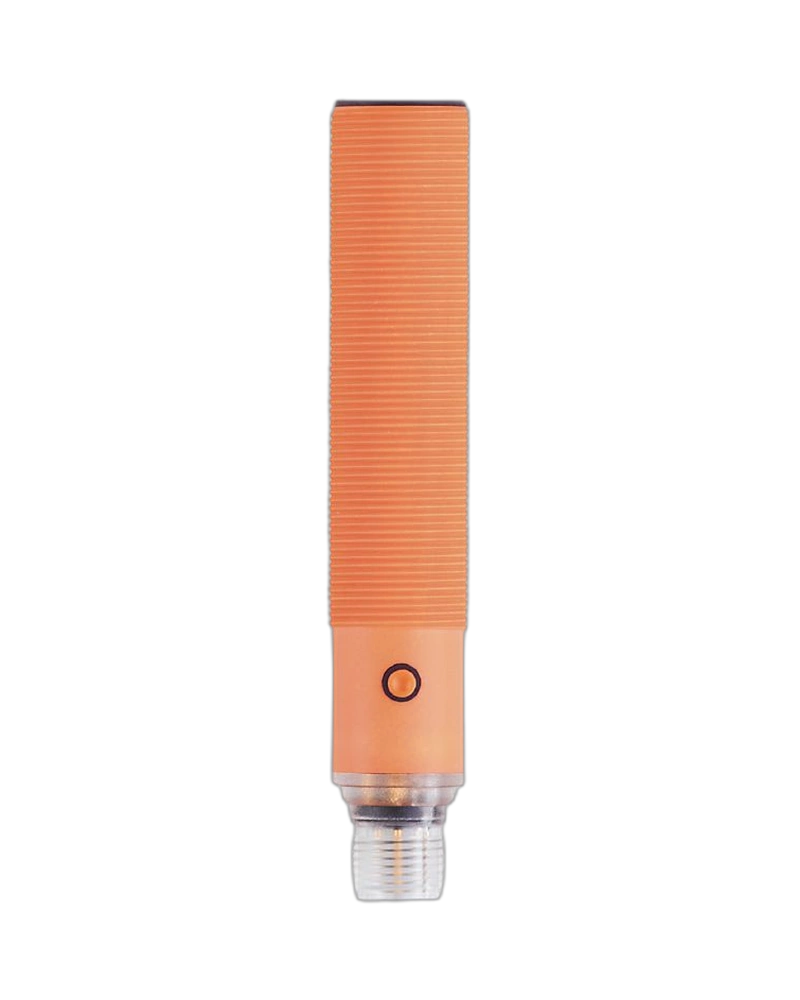

UGT204 is an IFM IO-Link ultrasonic sensor designed for long-range, non-contact object detection and distance monitoring. It provides a sensing range of 150 to 1600 mm with a 200 x 200 mm reference target and supports programmable sensor functions through IO-Link. The M18 threaded housing allows straightforward machine installation. Its configurable switching behaviour, analogue output capability and diagnostic communication make it suitable for advanced automation and process-monitoring applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
UGT204 combines ultrasonic sensing with IO-Link communication for flexible industrial automation. The sensor detects objects without physical contact, allowing it to work with targets whose colour or surface appearance may vary. Its long detection range makes it suitable for machine applications where conventional short-range sensing is insufficient.
The sensor provides a sensing range of 150 to 1600 mm using the specified 200 x 200 mm target. Ultrasonic sensing enables reliable distance-related detection and helps maintain stable performance across different target appearances. It is useful for object positioning, presence monitoring and material-handling applications.
IO-Link provides a convenient communication channel for sensor configuration, diagnostics and process information. Parameter options include switching behaviour, timing and teach functions. This allows machine builders to configure the sensor according to individual application requirements and simplifies commissioning and maintenance.
UGT204 uses an M18 threaded housing for practical installation in industrial machinery. Its configurable outputs and analogue signal capabilities support integration into automated control systems. The sensor is suitable for production equipment, conveyor systems and process-monitoring applications requiring flexible ultrasonic detection.
150...1600 mm sensing range
Ultrasonic non-contact detection
IO-Link communication
PNP electrical design
Programmable output function
Analogue output capability
M18 threaded housing
Temperature compensation
Teach and parameterisation functions
Industrial automation design
Object distance monitoring
Conveyor systems
Material handling
Machine automation
Position detection
Packaging equipment
Production monitoring
Object presence detection
Process automation
Factory automation
| Specification | UGT204 – UG-01600E1KG/IO-LINK/US |
|---|---|
| Product type | Ultrasonic sensor |
| Brand | IFM |
| Model | UG-01600E1KG/IO-LINK/US |
| Sensing range | 150...1600 mm |
| Reference target | 200 x 200 mm |
| Blind zone | 150 mm |
| Electrical design | PNP |
| Output function | NO/NC parameterisable |
| Communication | IO-Link |
| Operating voltage | 10...30 V DC |
| Current consumption | 55 mA |
| Protection class | III |
| Reverse polarity protection | Yes |
| Power-on delay | <0.3 s |
| Converter frequency | 230 kHz |
| Switching output | Digital |
| Analogue output | Available |
| Analogue output resolution | <3 mm |
| Temperature compensation | Yes |
| Hysteresis | <2% |
| Switch point drift | -2...2% |
| Repeatability | 1% |
| Housing | Threaded |
| Thread | M18 x 1 |
| Manufacturer | IFM electronic |
