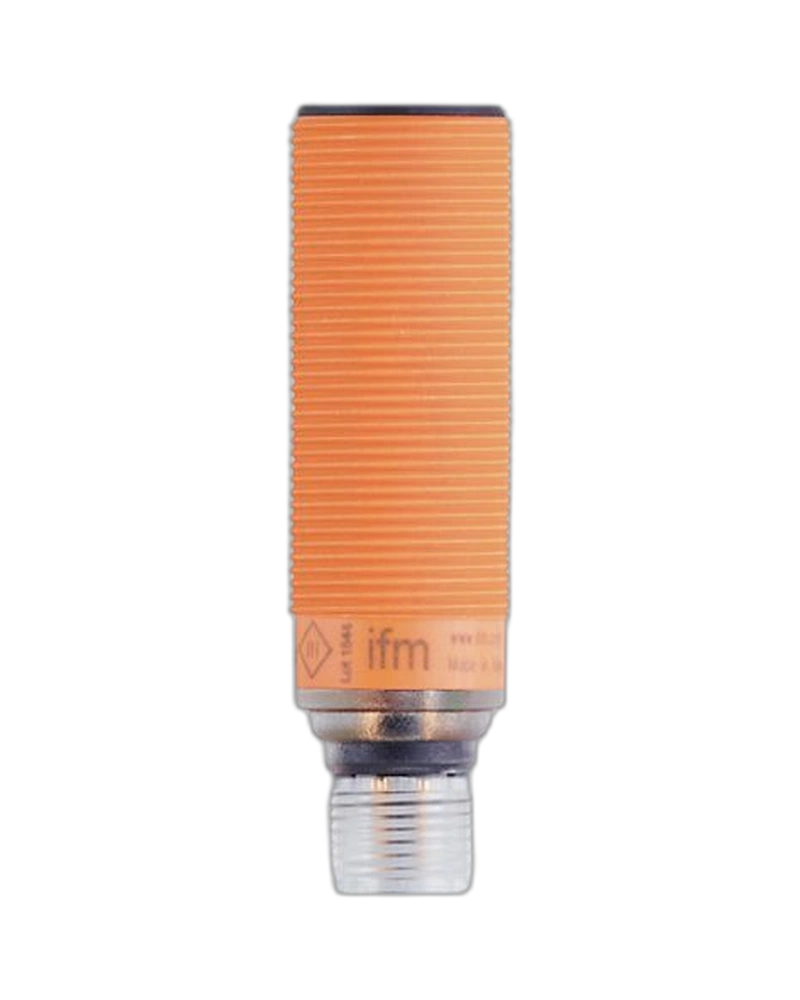

The IFM UGT200 ultrasonic sensor provides precise non-contact object and distance detection over a 40 to 300 mm sensing range. It features an M18 x 1 threaded housing, 15° ±2° aperture angle, temperature compensation and 2 mm resolution. With IP67 protection and an operating temperature range of -20 to 70 °C, it is suitable for reliable industrial automation, presence detection, positioning, level monitoring and short-range distance measurement applications
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The UGT200 is a compact ultrasonic sensor designed for reliable short-range object and distance detection. It provides a 40 to 300 mm sensing range with a defined 200 x 200 mm target. Its ultrasonic operating principle enables non-contact detection of suitable objects. The M18 x 1 threaded housing provides straightforward machine mounting. The sensor is suitable for industrial automation and process monitoring applications.
UGT200 is suitable for short-distance position, presence and distance monitoring. Its compact M18 housing allows installation in machine frames, conveyors and production equipment. The sensor can be used where non-contact detection is required without relying on conventional optical sensing. The yellow switching LED and green echo LED provide visual operating information. Its defined accuracy after warm-up supports consistent measurement applications.
40–300 mm sensing range
40 mm blind zone
Ultrasonic sensing technology
2 mm resolution
1% repeatability
15° ±2° aperture angle
Temperature compensation
IP67 protection
M18 x 1 threaded housing
Yellow and green LED indication
Short-range object detection
Position monitoring
Presence detection
Distance measurement
Level monitoring
Conveyor applications
Packaging machinery
Assembly equipment
Machine automation
Industrial process monitoring
| Specification | Details |
|---|---|
| Product Code | UGT200 |
| Model | UGC00300EOKG/US |
| Sensor Type | Ultrasonic sensor |
| Sensing Range | 40–300 mm |
| Reference Target | 200 x 200 mm |
| Blind Zone | 40 mm |
| Aperture Angle | 15° ±2° |
| Temperature Compensation | Yes |
| Hysteresis | <1% |
| Switch Point Drift | -5 to 5% |
| Repeatability | 1% |
| Resolution | 2 mm |
| Operating Temperature | -20 to 70 °C |
| Storage Temperature | -30 to 80 °C |
| Protection Rating | IP67 |
| Housing | Cylindrical/threaded |
| Thread | M18 x 1 |
| Length | 60.5 mm |
| Weight | 56 g |
| Housing Material | PBT / PA / epoxy glass ceramics |
| Display | Yellow switching LED |
| Echo Indication | Green LED |
| Aperture | Cylindrical |
| Accessories Supplied | 2 x M18 lock nuts and rubber washers |
| Pack Quantity | 1 piece |
