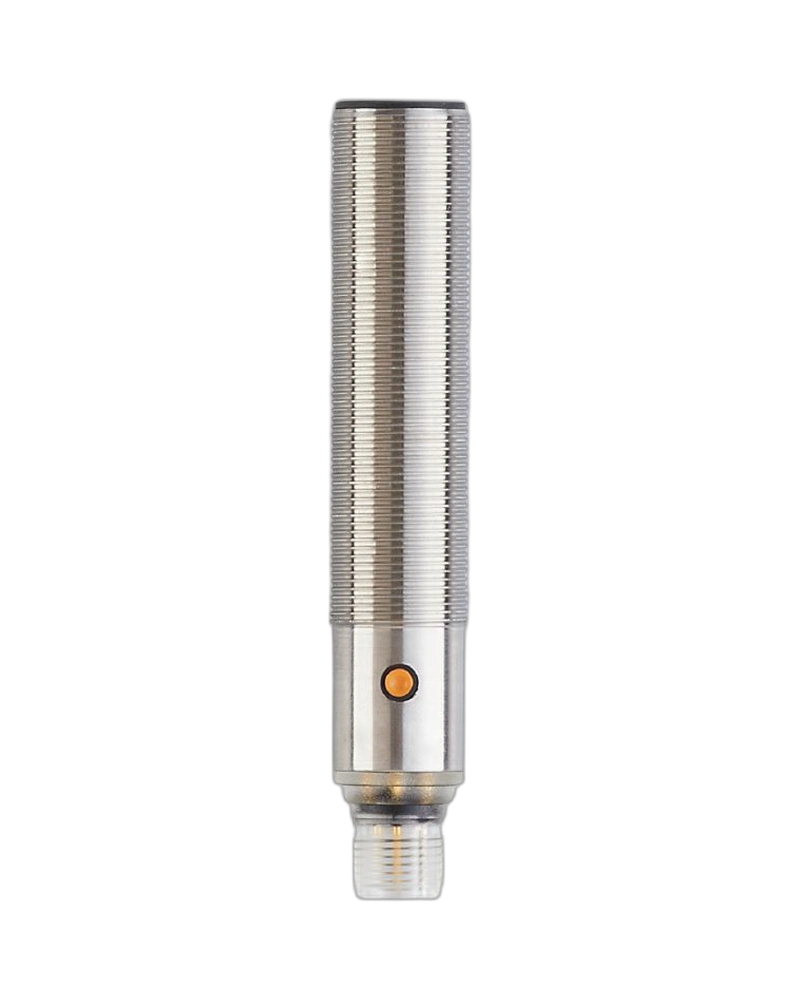

The IFM UGR501 ultrasonic sensor is designed for reliable non-contact object and distance detection over a sensing range of up to 2200 mm. It uses an M18 x 1 threaded housing, 10–30 V DC supply and IO-Link communication for convenient parameterisation and diagnostics. The PNP output can be configured for normally open or normally closed operation. Temperature compensation, protection functions and a focused 14° aperture angle support dependable industrial automation performance.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The UGR501 uses ultrasonic technology for non-contact detection of objects and distances. It is designed for applications where reliable sensing is required independent of many object colour variations. Its M18 x 1 threaded housing allows convenient machine mounting. IO-Link communication provides access to configuration and diagnostic functions. The sensor is suitable for industrial automation, material handling and process applications.
The extended sensing range makes UGR501 suitable for larger machine layouts and longer detection distances. Ultrasonic sensing allows reliable object detection without mechanical contact. Its 2 Hz switching frequency is appropriate for many position and presence applications. IO-Link supports flexible parameterisation and monitoring. The M18 threaded format provides practical integration into industrial equipment.
2200 mm sensing range
Ultrasonic detection
IO-Link communication
10–30 V DC operation
PNP output
NO/NC programmable
14° ±2° aperture angle
Temperature compensation
Short-circuit protection
Overload protection
Long-distance object detection
Level monitoring
Conveyor systems
Packaging machinery
Material handling
Industrial automation
Position monitoring
Presence detection
Tank and vessel monitoring
Production equipment
| Specification | Details |
|---|---|
| Product Code | UGR501 |
| Model | UGA02200EOKG/IO-LINK/US |
| Sensor Type | Ultrasonic sensor |
| Housing | Threaded |
| Thread | M18 x 1 |
| Operating Voltage | 10–30 V DC |
| Current Consumption | 55 mA |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Power-On Delay | <0.3 s |
| Converter Frequency | 200 kHz |
| Output | 1 digital output |
| Electrical Design | PNP |
| Output Function | NO/NC parameterisable |
| Maximum Voltage Drop | 2.2 V |
| Permanent Current | 100 mA |
| Switching Frequency | 2 Hz |
| Short-Circuit Protection | Yes |
| Overload Protection | Yes |
| Sensing Range | <2200 mm |
| Reference Target | 200 x 200 mm |
| Aperture Angle | 14° ±2° |
| Temperature Compensation | Yes |
| Communication | IO-Link |
| Pack Quantity | 1 piece |
