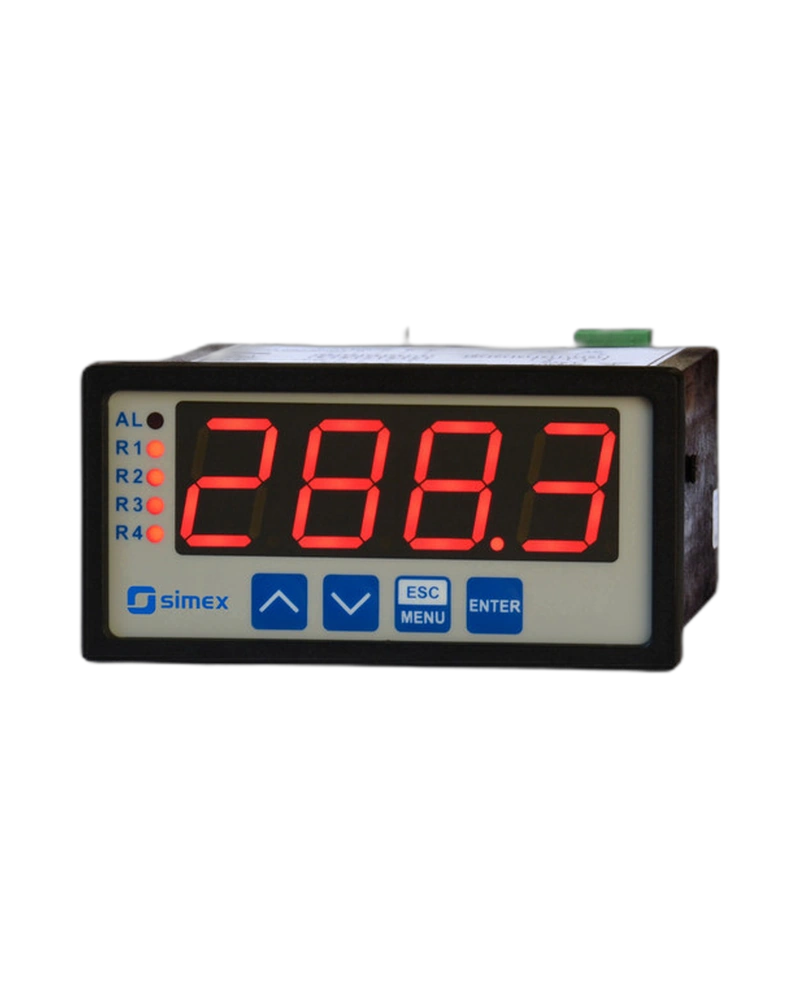

SUR-94

SUR-94 is a SIMEX industrial measurement and control solution designed for dependable integration into process monitoring and automation systems. Its configuration brings together practical measurement, indication, signal handling and control functions in a format suited to industrial use.

Flexible Measurement and Input Capability

SUR-94 supports flexible signal handling for applications where different process, electrical or temperature signals need to be brought into one instrument. The available input configuration includes 1 universal input; 0/4...20 mA; 0/1...5 V; 0/2...10 V; 0...60/75/100/150 mV; and TC K -200...+1370 °C; S -50...+1768 °C; J -210...+1200 °C; T -200...+400 °C; N -200...+1300 °C; R -50...+1768 °C; B +250...+1820 °C; E -200...+1000 °C. This flexibility helps simplify instrument selection when a system requires multiple signal types or ranges.

Reliable Outputs and Control

For integration with external equipment, SUR-94 provides defined output and control capabilities. The available configuration includes 5 A / 250 V AC resistance load; 3 A / 250 V AC reactance load and I=30 mA, U=30 V DC, P=100 mW. These options allow measured values and control states to be connected to the wider automation system according to the selected configuration.

Clear Indication and Industrial Communication

The SUR-94 combines local indication with communication capabilities where provided by the configuration. Available details include 4 × 20 mm red or green; RS-485 / Modbus RTU; and 1200...115200 bit/s; 8N1 / 8N2. This makes the instrument suitable for installations where operators need clear local information while the device also exchanges data with a control or monitoring system.

Configurable Functions

Configuration and signal-processing functions give SUR-94 additional flexibility beyond basic indication. Its listed capabilities include -100...+600 °C; 0...24 mA maximum, 700 Ω maximum load, 13-bit resolution; 2.8...24 mA maximum, 600 Ω at 24 V DC, 13-bit resolution; 0...11 V maximum, minimum 2000 Ω load, 13-bit resolution; Linear, square-root, quadratic, user-defined and cylindrical-tank volume characteristics; Signal peak-value detection; and Local keyboard and/or free S-Config configuration. These functions can help adapt the instrument to the required measurement method, display behaviour and operating workflow without changing the underlying product platform.

Power, Protection and Construction

The physical and electrical design of SUR-94 is defined by its available power supply, environmental and construction characteristics. The listed configuration includes 16...35 V AC; 19...50 V DC; 85...260 V AC/DC; 11.4...15 V AC/DC; 0...+50 °C; -20...+50 °C; IP20 case/connection clips; IP65 front; optional integrated frame; NORYL-GFN2S E1; Panel mounting; and 96 × 48 × 100 mm. These details provide the information needed to assess compatibility with the intended installation environment and system requirements.

Key Product Benefits

• 20 mm LED display.
• Universal input with current, voltage, mV, RTD and thermocouple ranges.
• Automatic cold-junction compensation.
• Linearized RTD/TC characteristics.
• Alternating-relay pump-control function.
• Relay/OC and analogue outputs.
• RS-485 / Modbus RTU.

Designed for Industrial Integration

SUR-94 is suited to installations where dependable measurement, clear indication and straightforward integration are important. Its combination of signal capabilities, configurable functions, outputs and interface options provides a practical platform for connecting measurement tasks with industrial monitoring and automation equipment.

Technical Information

Detailed model information is provided in the specification and feature tables, including available signal ranges, outputs, communication interfaces, functions, power requirements and construction details. Review the tables for the exact configuration and technical values of SUR-94.
