Product Overview

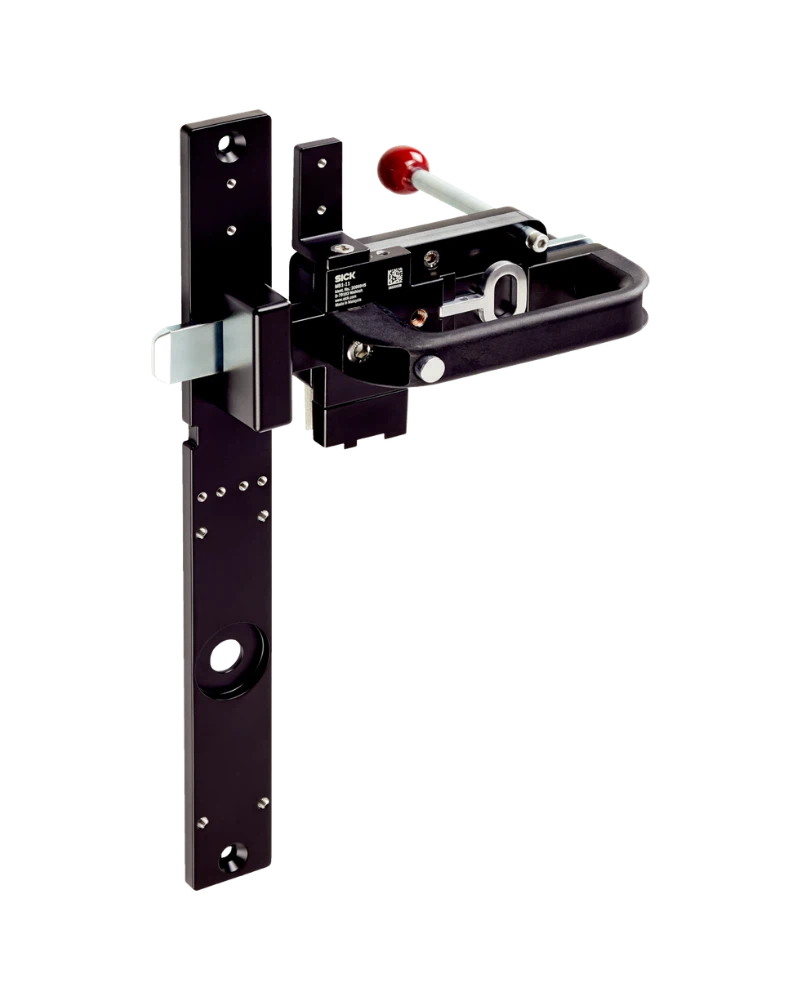

The SICK MB1 Safety Switch is a complete safety device designed for reliable actuation in industrial environments. It includes a bolt unit with a short frame plate and adapters specifically engineered for mounting actuators. The set features an ANSI-compliant locking mechanism, ensuring compliance with key safety standards. The catch release button provides a secure escape release function, enabling safe manual intervention when required. With a robust design incorporating VISTAL® material for the handle and zinc-coated steel components, the MB1 offers durability under demanding conditions. Its modular structure supports easy installation and integration into various safety-critical systems. This product is ideal for applications requiring both mechanical reliability and compliance with international safety regulations.

Key Features and Technology

The MB1 Safety Switch incorporates an ANSI-compliant locking mechanism to ensure secure and standardized operation in accordance with recognized safety standards. The catch release button enables quick and reliable manual escape during emergencies, supporting safe operator intervention. A frame plate with latching function enhances mechanical stability and ensures consistent actuation performance. The unit is constructed using high-performance materials: VISTAL® for the handle, zinc-coated steel for the bolt unit, aluminum (coated) for sliding carriage and base plate, and polyketone for internal components. These materials provide excellent resistance to wear, corrosion, and environmental stress. The design emphasizes ease of use while maintaining robustness in safety-critical applications.

Technical Characteristics

The MB1 Safety Switch has a net unit weight of 1.356 kilograms and a total unit weight of 1.475 kilograms. It is constructed from VISTAL® for the handle, steel with zinc coating for the bolt unit, aluminum (coated) for sliding carriage, base plate, and frame plate, and polyketone for internal components. The safety switch includes adapters for actuator mounting via the MB1-BRNC adapter, which can be securely installed using provided safety screws. These features ensure compatibility with a range of actuator types while maintaining high reliability in operational environments.

Configuration and Integration

The MB1 Safety Switch is configured with an adapter for actuator mounting (MB1-BRNC), allowing seamless integration into existing mechanical systems. The provided safety screws enable secure installation of the adapters, ensuring stable and repeatable positioning. This modular design simplifies setup and maintenance while supporting standard mounting practices. Users can mount actuators directly onto the frame plate using the included adapter, making it suitable for both new installations and retrofitting applications. The combination of standardized components and clear mounting instructions ensures straightforward integration into safety circuits without requiring specialized tools or modifications.

Operating Environment

The MB1 Safety Switch is designed to operate reliably in standard industrial environments. It is constructed with corrosion-resistant materials, including zinc-coated steel and coated aluminum, which provide protection against environmental exposure such as moisture and humidity. The unit is suitable for use in temperatures within typical industrial ranges, though specific limits are not provided in the documentation. Its robust construction ensures long-term performance under normal operating conditions. However, it should be installed in environments free from excessive mechanical stress or chemical attack that could compromise material integrity.

Industrial Applications

The SICK MB1 Safety Switch is suitable for use in a variety of industrial safety applications where reliable actuation and emergency release are required. It is commonly used in machinery guarding, where manual override or escape functions are essential during maintenance or emergencies. The ANSI-compliant locking mechanism ensures compatibility with safety systems requiring standardized features. Its modular design allows integration into automated processes involving mechanical actuators, such as conveyor systems, lifting equipment, and machine tools. The combination of durability, compliance, and ease of installation makes the MB1 a trusted solution in environments where operator safety is paramount.
