It uses Through-beam (Emitter) sensing. The nominal sensing distance is 60m (ExG=2).
The sensing principle is Through-beam (Emitter). The nominal sensing distance is 60m (ExG=2).
The optical emission is Red.
The operating voltage is 10 … 30 VDC. No-load supply current is ≤ 25 mA.
Maximum ripple is ≤ 5 Vpp. Ingress protection is rated IP67.
The housing material is PBT. Dimensions are M18 and the connection is M12 Connector.
The operating temperature range is -20 °C … +55 °C.
Storage temperature is -40 °C … +75 °C.

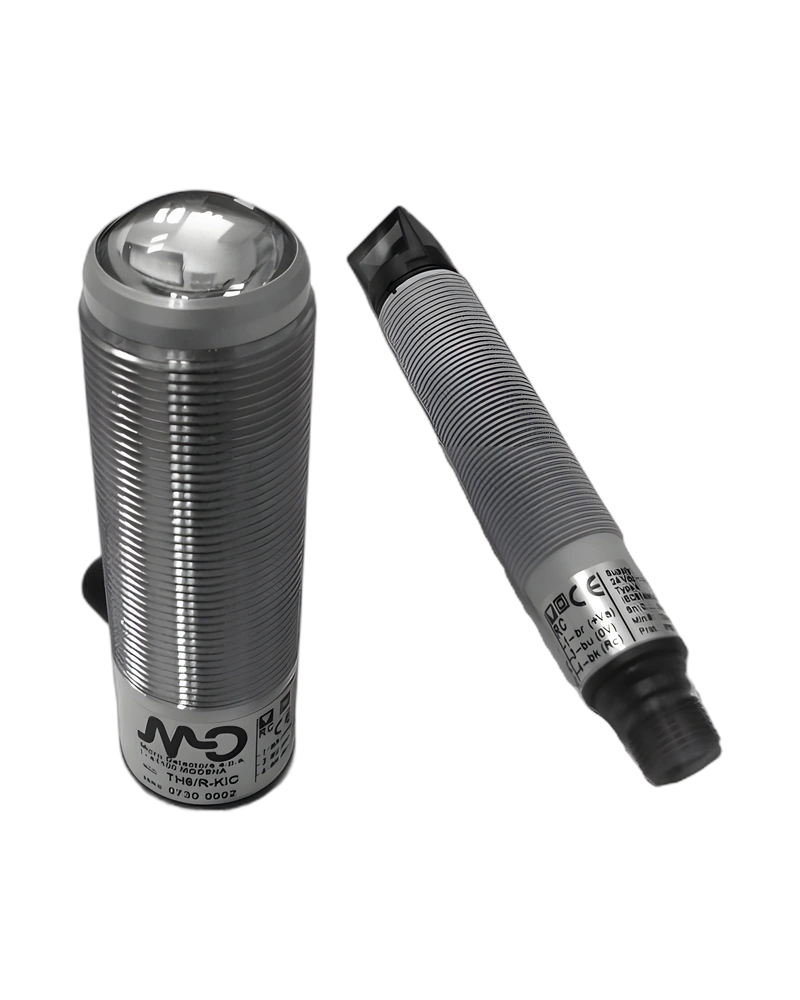

The manufacturer part number is TH6/E-KIA. This model is manufactured by M.D. Micro Detectors. Humidity is 15% … 95%.
Safety parameters is Type:. Type is 4.
| Specification | Details |
|---|---|
| Model | TH6/E-KIA |
| Manufacturer part number | TH6/E-KIA |
| Manufacturer | M.D. Micro Detectors |
| Humidity | 15% … 95% |
| Housing material | PBT |
| Operating temperature | -20 °C … +55 °C |
| Dimensions | M18 |
| Connection | M12 Connector |
| Storage temperature | -40 °C … +75 °C |
| Safety parameters | Type: |
| Type | 4 |
| Operating principle | Through-beam (Emitter) |
| Nominal sensing distance | 60m (ExG=2) |
| Thermal drift Sr | ≤ 10% |
| Degree of protection | IP67 |
| Maximum ripple | ≤ 5 Vpp |
| Operating voltage | 10 … 30 VDC |
| No-load supply current | ≤ 25 mA |
| Emission | Red |
