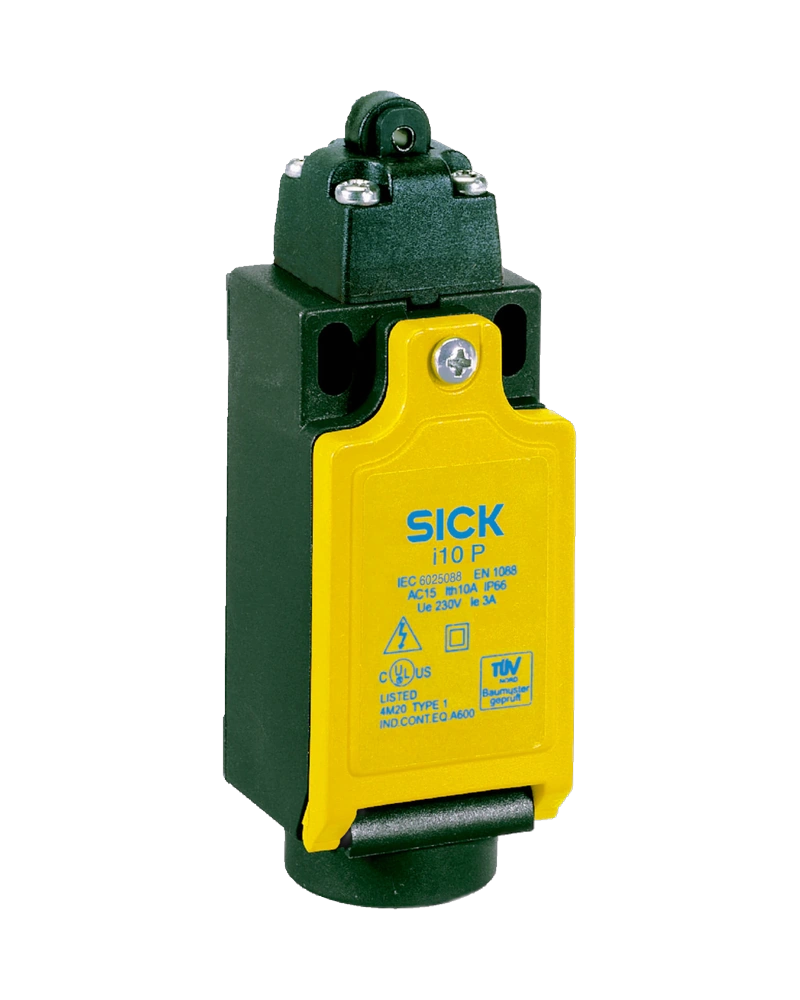

The SICK i10P safety switch is a robust electro-mechanical safety device designed for reliable operation in demanding industrial environments. Classified as Type 1 according to EN ISO 14119, it provides safe mechanical protection against hazardous conditions. With a slow action switching element, the i10P ensures precise and predictable response characteristics during actuation. Engineered with a durable glass-fiber reinforced thermoplastic housing, this switch offers excellent resistance to environmental stressors while maintaining long-term performance. It is suitable for applications requiring individual wiring and diagnostics, ensuring safe operation without series connection capabilities. The device supports both 24 V DC and 240 V AC operation, making it compatible with a range of industrial control systems.
The i10P safety switch employs an electro-mechanical principle to ensure reliable and fail-safe operation. Its slow action switching element provides consistent performance under dynamic conditions, minimizing false triggering risks. The device is designed for high actuation frequency, supporting up to 6,000 operations per hour without degradation in functionality. It features a simple cable gland connection (M20) with a conductor cross section limit of ≤ 2.5 mm², enabling straightforward integration into existing systems. With no safe series connection capability, each switch must be individually wired and monitored for diagnostics. The combination of mechanical robustness and precise switching behavior ensures dependable safety performance in critical applications.
The i10P is rated for a maximum operating current of 3 A at both 24 V DC and 240 V AC. It has an insulation rating of 250 V and an impulse withstand voltage of 2,500 V AC, ensuring protection against electrical stress. The switching voltage threshold is ≥ 5 V DC, with a switching current of 5 mA at 5 V DC to ensure reliable signal transmission. Short-circuit protection is provided via F15, safeguarding the device during fault conditions. The housing is constructed from glass-fiber reinforced thermoplastic, offering excellent mechanical and chemical resistance. The unit weighs 0.11 kg (unit weight: 0.123 kg), contributing to compact design without compromising durability.
The i10P is configured for individual wiring only, with no support for safe series connections. Each switch must be connected independently and monitored through diagnostics to ensure operational integrity. The connection type uses a cable gland with one M20 thread, allowing secure attachment of cables with conductor cross sections up to 2.5 mm². This setup simplifies installation while maintaining compliance with safety standards. Integration requires direct wiring to control circuits, where the switch’s switching output can be used in safety-related logic systems. Diagnostics are enabled through individual circuit monitoring, ensuring continuous verification of safe operation.
The i10P is designed for operation across a wide ambient temperature range from –25 °C to +80 °C, making it suitable for both cold and hot industrial environments. It can be stored within the same temperature range of –25 °C to +80 °C, ensuring readiness for deployment in diverse conditions. The enclosure is rated IP66 (IEC 60529), providing full protection against dust ingress and water jets from any direction. This makes it ideal for use in outdoor or high-moisture environments such as manufacturing lines, conveyors, or material handling systems where exposure to environmental elements is common.
The SICK i10P safety switch is suitable for use in a variety of industrial safety applications requiring reliable mechanical actuation. It can be employed in machine guarding, emergency stop functions, and position detection where fail-safe operation is essential. Its electro-mechanical design ensures consistent performance under repeated use, with an actuation frequency up to 6,000 operations per hour. The device’s robust housing and environmental protection make it ideal for integration into automated systems exposed to dust, moisture, or vibration. Applications include packaging lines, material handling equipment, and assembly processes where safe mechanical interlocks are required.
| Specification | Value |
|---|---|
| Connection type | Cable gland, 1 x M20 Conductor cross section ≤ 2.5 mm² |
| Weight | 0.11 kg |
| Storage temperature | –25 °C ... +80 °C |
| Material | Housing Glass-fiber reinforced thermoplastic |
| Actuation frequency | ≤ 6,000 /h |
| value | IP66 (IEC 60529) |
| Connection type Cable gland, 1 x M20 Conductor cross section ≤ 2.5 mm² | Connection type | Cable gland, 1 x M20 | Conductor cross section | ≤ 2.5 mm² |
| Rated operating current (voltage) | 3 A (240 V AC) 3 A (24 V DC) |
| Rated insulation voltage U i | 250 V |
| Rated impulse withstand voltage U imp | 2,500 V AC |
| Short-circuit protection | F15 |
| Switching voltage | ≥ 5 V DC |
| Switching current (switching voltage) | 5 mA (5 V DC) |
| Enclosure rating | IP66 (IEC 60529) |
| Ambient operating temperature | –25 °C ... +80 °C |
| Unit weight | 0.123 Kilograms |
| Net unit weight | 0.123 Kilograms |
