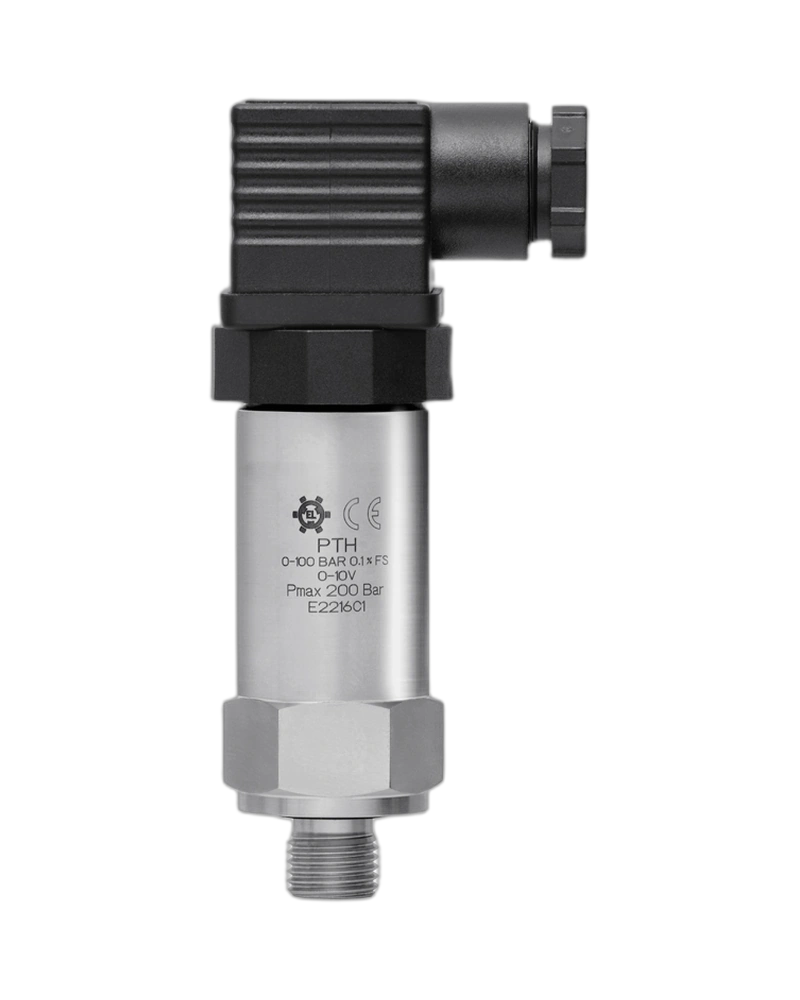

The ELETTROTEC PTH400GEIWMR14 - PTH - High accuracy pressure sensor - PTH - High accuracy pressure sensor - PTH - High accuracy pressure sensor is an industrial Pressure Transmitter intended for professional equipment and system applications, with product-specific technical characteristics available for selection and integration. Key characteristics include Supply voltage: 24 Vdc; Accuracy: ≤ 0,5% F.S. standard (0,1% F.S.) @ 25°C; Maximum temperature (in contact with fluid): -25°C …+125°C.

Product Overview

The PTH400GEIWMR14 - PTH - High accuracy pressure sensor - PTH - High accuracy pressure sensor is a Pressure Transmitter intended for professional industrial applications.

Technical Characteristics

Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.

Key Features

• Operating voltage of 24 Vdc for compatible electrical systems.
• Accuracy of ≤ 0,5% F.S. standard (0,1% F.S.) @ 25°C for precise measurement or control.
• Maximum temperature (in contact with fluid) of -25°C …+125°C for application-specific selection and integration.
• Output type of Voltage 0-10V 3 poles minimum load 5KΩ – Current 4/20mA 2 poles I ≤ 20 mA for application-specific selection and integration.
• Thread of G 1/4” parallel for straightforward system integration.
• Response time of ≤ 5 ms for fast system reaction.
• Body material of Stainless steel AISI 316 for durable industrial use.
• Dimensions of Body Ch. 24 Max. height 60mm for installation and space planning.

Applications

The PTH400GEIWMR14 - PTH - High accuracy pressure sensor - PTH - High accuracy pressure sensor can be considered for industrial systems and equipment requiring a Pressure Transmitter. Final suitability should be evaluated against the complete system requirements.

Selection Considerations

Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.

Product Summary

The PTH400GEIWMR14 - PTH - High accuracy pressure sensor - PTH - High accuracy pressure sensor is an industrial Pressure Transmitter. Selection should be based on the documented characteristics and the requirements of the intended application.
