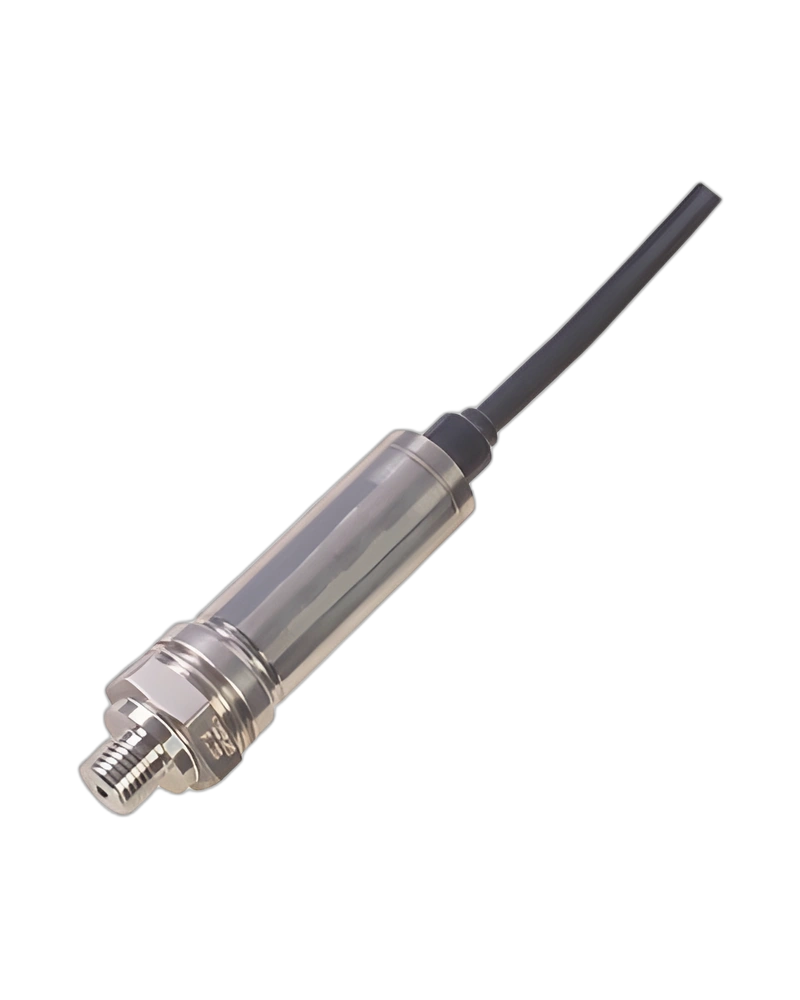

The series TXP-E Pressure Transmitter - Pressure Transmitter with cable is a Control Process TXP-E pressure transmitter designed to convert process pressure into a standard electrical output for industrial measurement and control systems. The specified TXP configuration provides 0.5% F.S. accuracy, 4 … 20 mA, 2-wire output and 9 … 36 VDC power supply, giving the instrument a compact analogue interface for pressure monitoring and control applications.
The transmitter uses Cable configuration as identified by the product name. Wetted parts are stainless steel, while the housing is specified as Ni-Cr case with aluminium head and plastic cable gland. The standard TXP electrical connection is an M12 x 1 angular connector conforming to DIN EN 175301-803A. The available pressure ranges cover configurations from -1 … 0 bar through positive ranges up to 0 … 600 bar, with the exact range selected through the transmitter ordering code.
The TXP series is intended for direct integration into pressure measurement systems where a 4 … 20 mA two-wire signal is required. The 9 … 36 VDC supply allows the transmitter to be used in standard industrial instrumentation circuits. The TXP-E entry in this range is the cable version identified by the instrument name; only the shared TXP technical characteristics are stated here where they are supported by the series ordering information.
Selection should be based on the required pressure span, process connection and electrical configuration. The transmitter should be installed with a compatible pressure connection and supplied within the specified 9 … 36 VDC range. The stainless-steel wetted construction is part of the specified TXP specification and is suited to process-pressure measurement applications covered by the selected configuration.
| Model / Series | TXP-E |
|---|---|
| Instrument type | Pressure transmitter with cable configuration |
| Accuracy | 0.5% F.S. |
| Output | 4 … 20 mA, 2-wire |
| Power supply | 9 … 36 VDC |
| Process connection | Cable configuration as identified by the product name |
| Wetted parts | Stainless steel |
| Case | Ni-Cr case with aluminium head and plastic cable gland |
| Available pressure ranges | available ranges from -1 … 0 through 0 … 600 bar |
