Explore performance details, construction highlights, applications, and technical information in one clear overview.

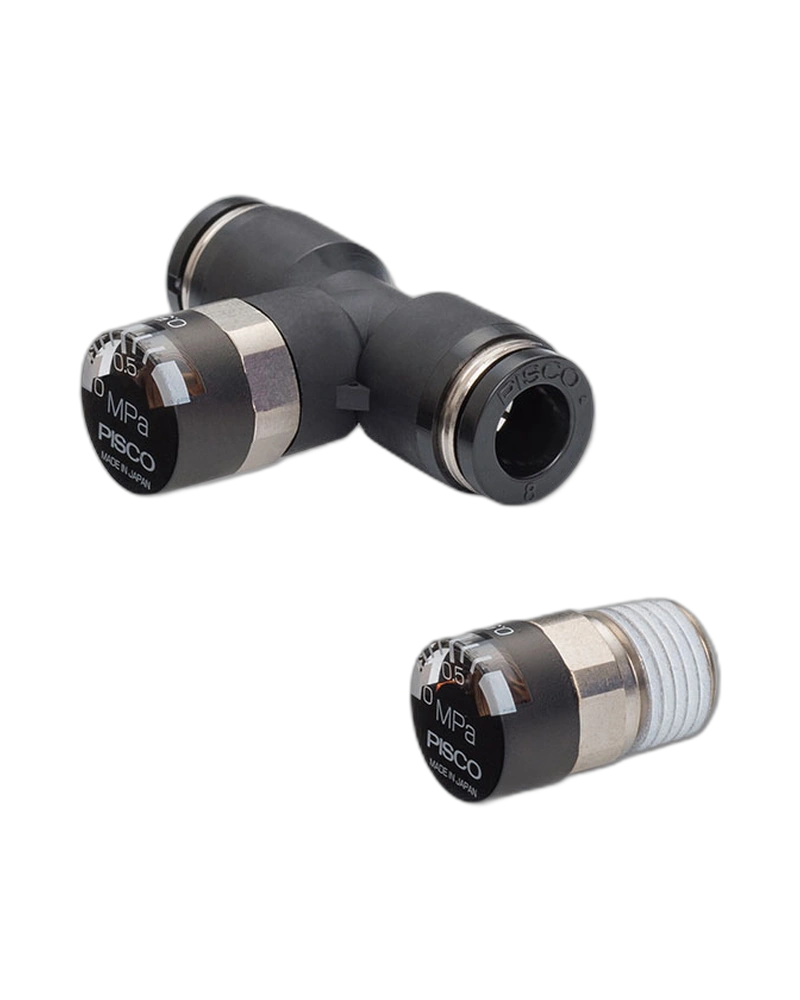

This pressure gauge is a compact, lightweight device designed to accurately measure air pressure in industrial and commercial applications. Its small form factor makes it ideal for installations where space is limited, allowing seamless integration into tight or confined environments without compromising functionality.
The gauge features PBT resin for its primary body components, offering durability and resistance to general environmental conditions. Key metal parts are constructed from brass with electroless nickel plating, enhancing corrosion resistance and ensuring long-term performance in typical operating conditions.
The gauge connects via a built-in tube fitting that allows pressure measurement by simply inserting a tube. This design enables direct monitoring of system pressure without requiring additional fittings or complex mounting arrangements.
It is specifically rated for air as the fluid medium and operates within a display range of 0 to 0.8MPa (gauge). The device functions reliably across an operating temperature range of 0 to 60℃, with no freezing expected under these conditions.
Available in multiple sizes including φ4, φ6, and φ8 mm (equivalent to φ5/32", φ1/4", and φ5/16" inches), the gauge offers flexibility for different installation requirements. It is also available with metric male thread M5×0.8 or taper pipe male threads R1/8 and R1/4, enabling compatibility with a range of piping systems.
The pressure gauge supports direct integration into systems using its built-in tube fitting interface. This allows for straightforward installation by inserting a pressure tubing directly into the gauge body to monitor air pressure in real time.
| Specification | Details |
|---|---|
| Fluid medium | Air |
| Display range (gauge) | 0 to 0.8MPa |
| Operating temp. range | 0 to 60℃
