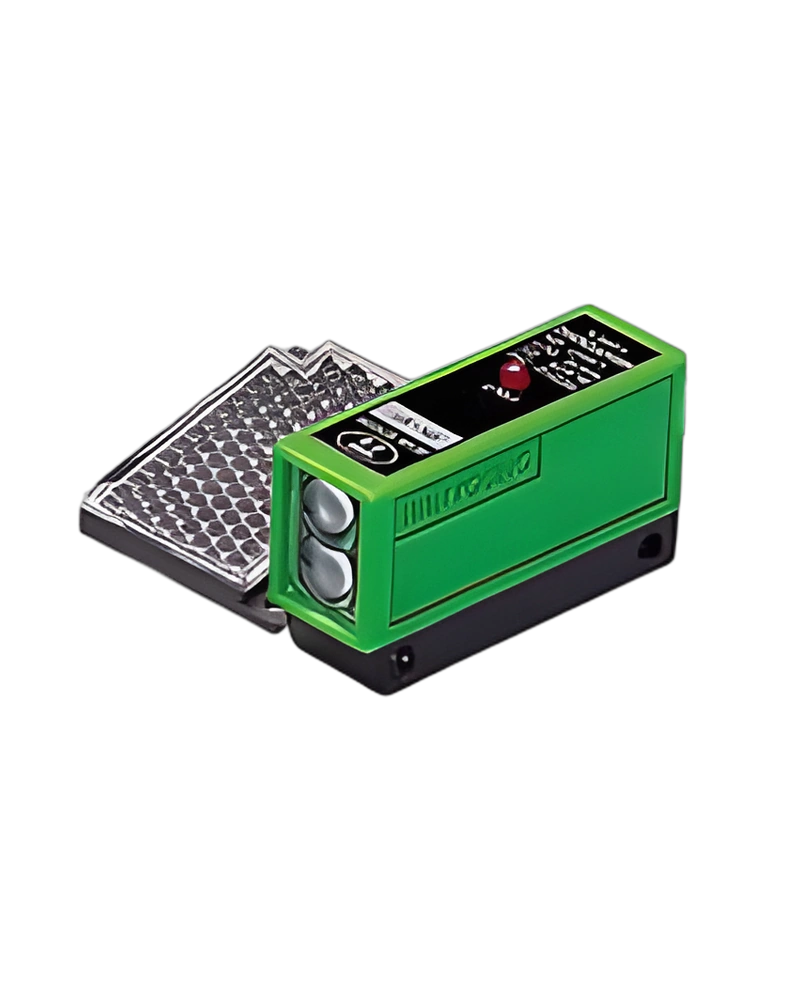

PN series is a Hanyoung NUX photoelectric sensor for non-contact detection and machine sensing. The configuration is defined by its sensing method, sensing range, output arrangement and electrical requirements, with model information of PN-T3 | PN-M1 | PN-R02. Sensing method: Throug beam | Retro reflection | Diffuse reflection; Sensing distance: 3 m | 0.1-1 m | 200 ㎜; Sensing object: Opaque object above Ø8 ㎜ | Opaque object above Ø60 ㎜ | White paper with no gloss 200 x 200; Hysteresis: - | less than 20% of the sensing distance.
The sensing distance, target object, response time, output type and environmental limits are the key details to compare when selecting the sensor for a specific machine or detection point. Light source (wave length): Infrared lightening LED (850 ㎚); Connection method: Cable extended, Cable : 4P, Diameter Ø4 ㎜, Length : 1.5 m(but transmitter is 3P); Material: Case and lens : PC; Weight: Approx. 250g (included the weight of box) | Approx. 150g (included the weight of box) | Approx. 100g (included the weight of box).
Key strengths of the PN series come from the combination of its functional configuration and practical installation specifications. The following characteristics highlight the values that matter most when comparing the product with equipment requirements.
Sensing distance: 3 m | 0.1-1 m | 200 ㎜; Sensing object: Opaque object above Ø8 ㎜ | Opaque object above Ø60 ㎜ | White paper with no gloss 200 x 200; Power supply voltage: 12 - 24 V d.c. (±10 %); Control output: NPN voltage output, Less than 200 ㎃ (Load voltage : 30 V d.c.), Remaining voltage : 1 V d.c. max; Response time: 3 ㎳ max.
The PN series technical profile is centred on sensing method, detection range, target characteristics, output behaviour and response time. These parameters define the sensor's operating window and electrical interface. Control output: NPN voltage output, Less than 200 ㎃ (Load voltage : 30 V d.c.), Remaining voltage : 1 V d.c. max; Output action: Selection of L. ON/D. by the control line (Through beam is only with the receiver); Response time: 3 ㎳ max; NPN voltage output, Less than 200 ㎃ (Load voltage: 30 V d.c.), Remaining voltage : 1 V d.c. max.
Additional technical characteristics include Control output indicator: Red LED (But emitter of the through beam indicates the power with red LED); Power supply voltage: 12 - 24 V d.c. (±10 %); Current consumption: Emitter | 20 ㎃ d.c. | 30 ㎃ d.c. max.
The physical design of PN series should be considered together with the installation environment and the available mounting or display arrangement. Cable extended, Cable: 4P, Diameter Ø4 ㎜, Length : 1.5 m(but transmitter is 3P); Protective circuit: Power reverse connection protecting circuit and output break protecting circuit; Ambient temperature: Operating : -25 ~ 55 ℃, Storage: -40 ~ 70 ℃, (Without condensation); Ambient humidity: 35 ~ 85 % R.H. (With no condensation).
Further construction and environmental details include Insulation resistance: 20 ㏁ min(500 V d.c.); Dielectric strength: 1,000 V a.c. for 1 min; Vibration resistance: 10 - 55 ㎐ double amplitude : 1.5 ㎜, for 2 hours each in X·Y and Z direction.
Integration of PN series starts with matching its sensing method, supply voltage, output type and connection method to the control system. Sensing distance: 3 m | 0.1-1 m | 200 ㎜; Sensing object: Opaque object above Ø8 ㎜ | Opaque object above Ø60 ㎜ | White paper with no gloss 200 x 200; Power supply voltage: 12 - 24 V d.c. (±10 %); Control output: NPN voltage output, Less than 200 ㎃ (Load voltage : 30 V d.c.), Remaining voltage : 1 V d.c. max.
Additional operating and interface details include Response time: 3 ㎳ max; Connection method: Cable extended, Cable : 4P, Diameter Ø4 ㎜, Length : 1.5 m(but transmitter is 3P); Light source (wave length): Infrared lightening LED (850 ㎚). These values provide a practical reference for wiring, setup and normal operation within the selected configuration.
Choose PN series by confirming the exact model or configuration against the required operating conditions. The available model information is PN-T3 | PN-M1 | PN-R02. Model: PN-T3 | PN-M1 | PN-R02; Shock resistance: 500 m/s², 3 times each in X·Y and Z directions; Sensing distance: 3 m | 0.1-1 m | 200 ㎜; Sensing object: Opaque object above Ø8 ㎜ | Opaque object above Ø60 ㎜ | White paper with no gloss 200 x 200.
Before installation, confirm Power supply voltage: 12 - 24 V d.c. (±10 %); Control output: NPN voltage output, Less than 200 ㎃ (Load voltage : 30 V d.c.), Remaining voltage : 1 V d.c. max; Response time: 3 ㎳ max. Matching the model, electrical ratings, signal requirements, physical arrangement and environmental limits helps keep the product within its specified operating conditions.
| Specification | Details |
|---|---|
| Model | PN-T3 | PN-M1 | PN-R02 |
| Sensing method | Throug beam | Retro reflection | Diffuse reflection |
| Sensing distance | 3 m | 0.1-1 m | 200 ㎜ |
| Sensing object | Opaque object above Ø8 ㎜ | Opaque object above Ø60 ㎜ | White paper with no gloss 200 x 200 |
| Power supply voltage | 12 - 24 V d.c. (±10 %) |
| Current consumption | Emitter | 20 ㎃ d.c. | 30 ㎃ d.c. max |
| Receiver | 18 ㎃ d.c |
| Control output | NPN voltage output, Less than 200 ㎃ (Load voltage : 30 V d.c.), Remaining voltage : 1 V d.c. max |
| Output action | Selection of L. ON/D. by the control line (Through beam is only with the receiver) |
| Response time | 3 ㎳ max |
| Hysteresis | - | less than 20% of the sensing distance |
| Light source (wave length) | Infrared lightening LED (850 ㎚) |
| LED | Control output indicator : Red LED (But emitter of the through beam indicates the power with red LED) |
| Sensitivity adjustment | By the sensitivity adjusting volume (Exclude the emitter of through beam type) |
| Protective circuit | Power reverse connection protecting circuit and output break protecting circuit |
| Ambient illumination | Sunlight: max 11,000 Lux, incandescent lamp : max 3,000 Lux |
| Ambient temperature | Operating : -25 ~ 55 ℃, Storage: -40 ~ 70 ℃, (Without condensation) |
| Ambient humidity | 35 ~ 85 % R.H. (With no condensation) |
| Insulation resistance | 20 ㏁ min(500 V d.c.) |
| Dielectric strength | 1,000 V a.c. for 1 min |
| Vibration resistance | 10 - 55 ㎐ double amplitude : 1.5 ㎜, for 2 hours each in X·Y and Z direction |
| Shock resistance | 500 m/s², 3 times each in X·Y and Z directions |
| Connection method | Cable extended, Cable : 4P, Diameter Ø4 ㎜, Length : 1.5 m(but transmitter is 3P) |
| Material | Case and lens : PC |
| Weight | Approx. 250g (included the weight of box) | Approx. 150g (included the weight of box) | Approx. 100g (included the weight of box) |
| No | Type | Category | Title | File |
| 1 | Manual > Instruction Manual | Photoelectric Sensor | PN Instruction Manual |
| 2 | Manual > Catalogue | Photoelectric Sensor | PN Catalogue |
| NPN voltage output, Less than 200 ㎃ (Load voltage | 30 V d.c.), Remaining voltage : 1 V d.c. max |
| Control output indicator | Red LED (But emitter of the through beam indicates the power with red LED) |
| Operating | -25 ~ 55 ℃, Storage: -40 ~ 70 ℃, (Without condensation) |
| Cable extended, Cable | 4P, Diameter Ø4 ㎜, Length : 1.5 m(but transmitter is 3P) |
