Product Overview

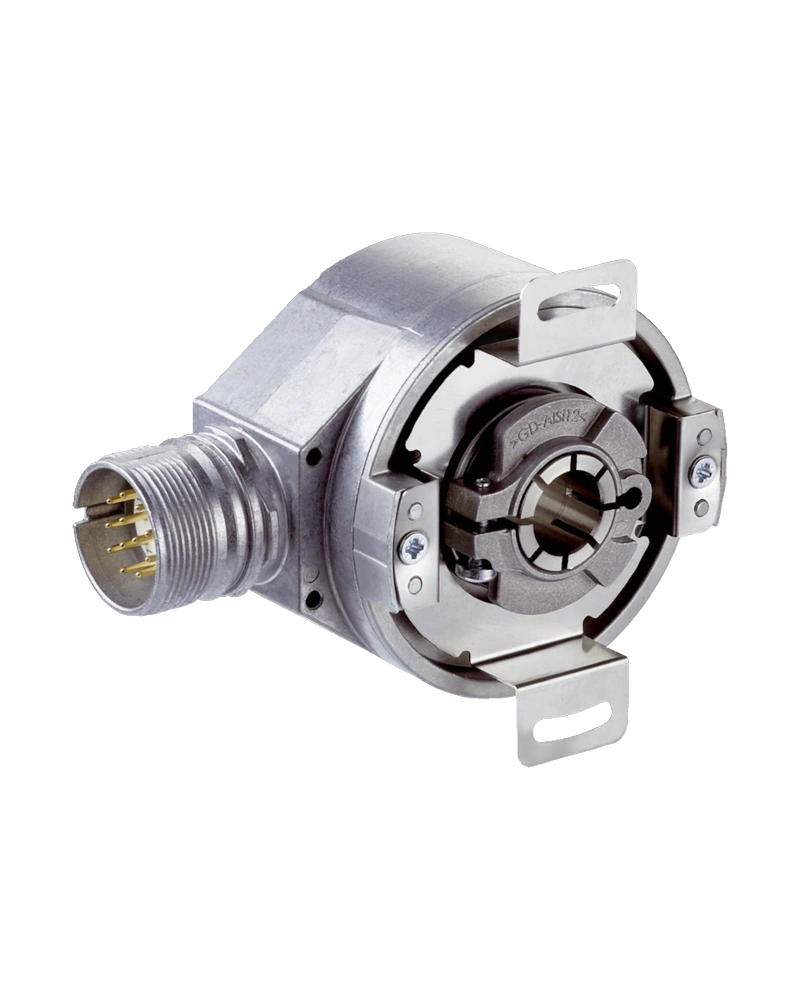

The SFS/SFM60 is a high-resolution motor feedback system designed for use in hollow shaft applications. It offers precise position and speed monitoring, ensuring accurate control of synchronous motors in demanding industrial environments. With its optimized concentricity and low vibration levels even at maximum operating speeds, the SFS/SFM60 delivers reliable performance across a range of motion control scenarios. The system is engineered to meet stringent safety and efficiency requirements through intelligent feedback integration. Its hollow shaft design enables compatibility with both self-ventilated and externally-ventilated motors, making it ideal for applications where space constraints and thermal management are critical. SICK’s Safe Motion solutions ensure safe machine operation in alignment with EN ISO 13849 standards, enhancing employee protection and operational efficiency.

Key Features and Technology

The SFS/SFM60 leverages a globally standardized HIPERFACE interface to simplify integration into motor control systems. This standardized connection reduces component count and cabling complexity, especially when paired with drives that support the HIPERFACE interface. The system enables direct motor control and safe speed monitoring through a single feedback unit, improving both functionality and reliability. Its high-resolution optical technology ensures precise position sensing, while the rugged construction supports long-term durability in harsh environments. Achieving optimal concentricity and minimizing vibration at peak speeds enhances overall machine performance and reduces wear on mechanical components. This combination of precision, stability, and safety makes the SFS/SFM60 a reliable choice for high-performance motion control applications.

Technical Characteristics

The SFS/SFM60 features a high-resolution optical sensor with a hollow shaft design suitable for integration into synchronous motors. It operates with a protection class of IP65, providing robust resistance to dust and water ingress. The system is compatible with various hollow shaft diameters, allowing flexibility in motor selection and installation. Its standardized HIPERFACE interface ensures seamless compatibility across different drive systems and manufacturers. The high level of concentricity and low vibration performance at maximum speeds contributes to improved dynamic stability and reduced mechanical stress. These characteristics are critical for maintaining accuracy and reliability over extended operational periods.

Configuration and Integration

The SFS/SFM60 integrates directly into motor control systems via the globally standardized HIPERFACE interface, enabling efficient setup with minimal cabling. Motor control functions and safe speed monitoring can be performed through the feedback system itself, reducing the need for additional components or external sensors. This simplifies system architecture and lowers installation time and cost. The system is designed to work seamlessly with drives that support the HIPERFACE standard, allowing for unified control of position, speed, and safety parameters. Its compact design and standardized interface ensure compatibility across a wide range of industrial automation systems without requiring custom adaptations or extensive re-engineering.

Operating Environment

The SFS/SFM60 is designed to operate reliably in demanding environmental conditions thanks to its IP65 protection class, which provides full dust protection and resistance to water splashes from any direction. It is suitable for use in both self-ventilated and externally-ventilated synchronous motors, ensuring thermal stability under varying operating conditions. The rugged construction supports long service life even in high-vibration or harsh industrial settings. The system maintains consistent performance across a broad range of ambient temperatures and humidity levels typical in manufacturing environments. Its durability ensures minimal maintenance requirements over time, contributing to reduced downtime and increased operational efficiency.

Industrial Applications

The SFS/SFM60 is ideal for use in mobile and stationary applications requiring precise motion control and safety monitoring. It supports safe machine operations by enabling real-time speed detection and integration with Safe Motion solutions compliant with EN ISO 13849 standards. This makes it suitable for automated production lines, robotic systems, and precision positioning equipment where employee safety and process accuracy are paramount. Its compatibility with various hollow shaft motors allows deployment in diverse machinery such as conveyor systems, packaging machines, and material handling equipment. The combination of high resolution, low vibration, and standardized integration ensures reliable performance across a wide range of industrial automation tasks.
