It uses Emitter + Receiver sensing. The nominal sensing distance is 0,5 … 2 m.
The sensing principle is Emitter + Receiver. The nominal sensing distance is 0,5 … 2 m.
The optical emission is Infrared 880 nm.
For electrical integration, the output configuration is PNP NO. The output function is Normally open (NO).
The operating voltage is 10 -26 VDC, with load current of 100 mA. No-load supply current is 150 mA (Emitter) - 25 mA (Receiver) and leakage current is limited to < 10 µA @ 26V.
Maximum ripple is 10%. Short-circuit protection is Yes. Reverse polarity protection is Yes. Surge protection is Yes.
Dimensions are 140 x 36 x 18 mm. Weight is 104 g.
The operating temperature range is 0 °C…+ 55° C (Non-freezing).
Sensitivity adjustment is Yes.

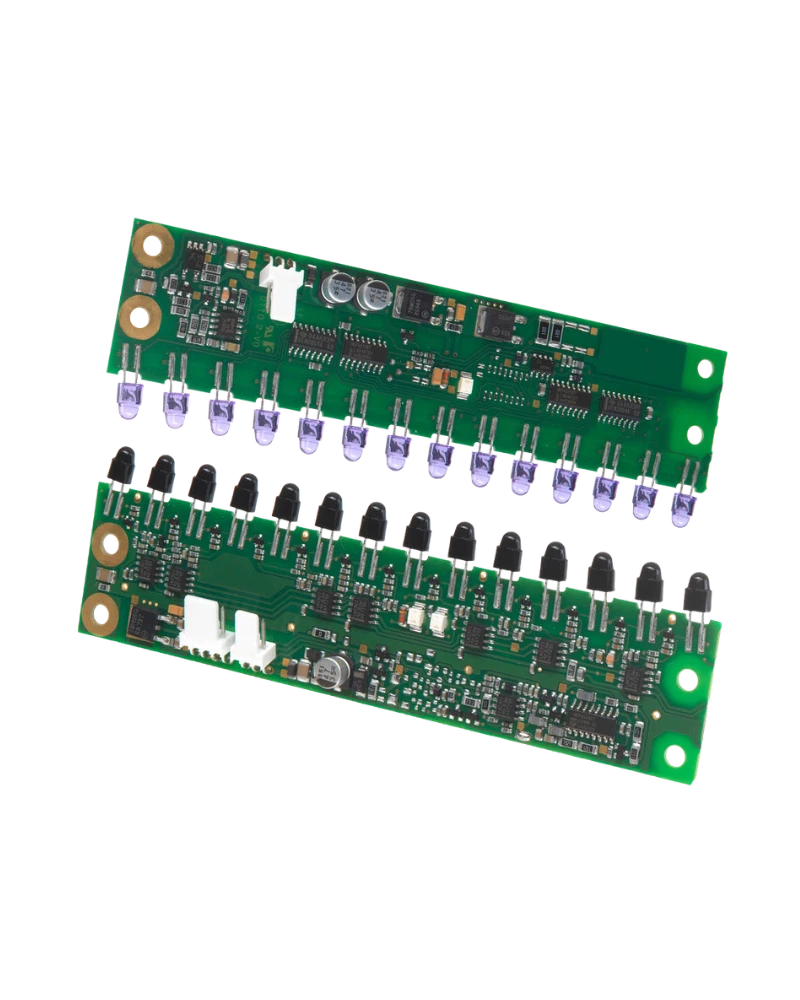

The manufacturer part number is NX14SR/XAP-A000. This model is manufactured by M.D. Micro Detectors. Number of beams is 14.
Controlled height is 130 mm. Time to availability is < 85 ms. External-light interference is limited to 1000 lx (Incandescent lamp) - 1500 lx (Sunlight).
NX14SR/XAP-A000 uses Emitter + Receiver sensing with a nominal sensing distance of 0,5 … 2 m. For electrical integration, it provides output configuration PNP NO, operating voltage 10 -26 VDC. The physical configuration includes dimensions 140 x 36 x 18 mm.
| Specification | Details |
|---|---|
| Model | NX14SR/XAP-A000 |
| Output configuration | PNP NO |
| Manufacturer part number | NX14SR/XAP-A000 |
| Manufacturer | M.D. Micro Detectors |
| Output type | PNP |
| Output function | Normally open (NO) |
| Weight | 104 g |
| Operating temperature | 0 °C…+ 55° C (Non-freezing) |
| Dimensions | 140 x 36 x 18 mm |
| Number of beams | 14 |
| Controlled height | 130 mm |
| Nominal sensing distance | 0,5 … 2 m |
| Sensitivity adjustment | Yes |
| Time to availability | < 85 ms |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Surge protection | Yes |
| Maximum ripple | 10% |
| External light interference | 1000 lx (Incandescent lamp) - 1500 lx (Sunlight) |
| Operating voltage | 10 -26 VDC |
| Load current | 100 mA |
| No-load supply current | 150 mA (Emitter) - 25 mA (Receiver) |
| Leakage current | < 10 µA @ 26V |
| Emission | Infrared 880 nm |
