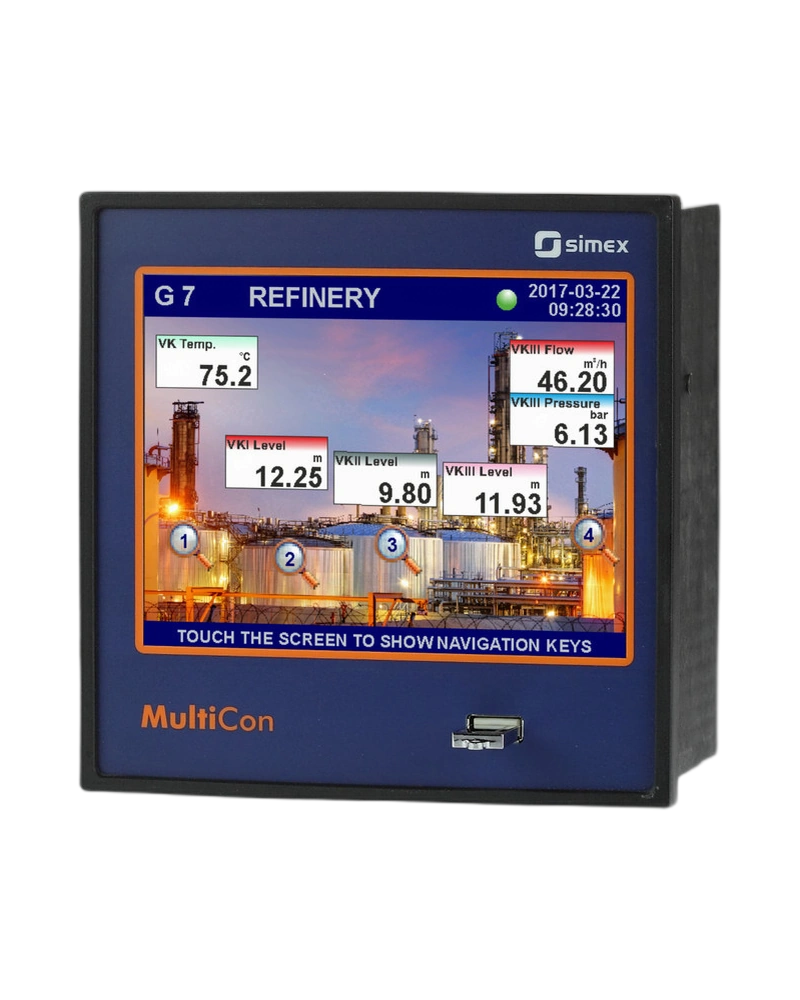

MultiCon CMC-141

MultiCon CMC-141 is a SIMEX industrial measurement and control solution designed for dependable integration into process monitoring and automation systems. Its configuration brings together practical measurement, indication, signal handling and control functions in a format suited to industrial use.

Flexible Measurement and Input Capability

MultiCon CMC-141 supports flexible signal handling for applications where different process, electrical or temperature signals need to be brought into one instrument. The available input configuration includes 41 available input/output modules; Up to 72 inputs; Maximum 15 universal, 72 analogue, 72 digital, 36 TC, 18 RTD and 12 counter/flowmeter/ratemeter inputs; Digital 24 V DC; mixed analogue-NTC temperature; mixed analogue-digital; 0/4...20 mA; 0/1...5 V; 0/2...10 V; 0...30 V; and -10...25 mV; -10...100 mV; 0...600 mV; ±25 mV; ±100 mV. This flexibility helps simplify instrument selection when a system requires multiple signal types or ranges.

Reliable Outputs and Control

For integration with external equipment, MultiCon CMC-141 provides defined output and control capabilities. The available configuration includes Up to 36 relay 1 A/250 V and Up to 18 relay 5 A/250 V. These options allow measured values and control states to be connected to the wider automation system according to the selected configuration.

Clear Indication and Industrial Communication

The MultiCon CMC-141 combines local indication with communication capabilities where provided by the configuration. Available details include 5.7-inch graphic TFT, 16-bit colour, 320 × 240 pixels, touchscreen; RS-485 / Modbus RTU; USB Host; and NTP; Web Server HTTP; Modbus RTU Master/Slave; Modbus TCP Server. This makes the instrument suitable for installations where operators need clear local information while the device also exchanges data with a control or monitoring system.

Configurable Functions

Configuration and signal-processing functions give MultiCon CMC-141 additional flexibility beyond basic indication. Its listed capabilities include Meter + Controller + Recorder + HMI + SCADA in one package; Stable Linux-based firmware; 90 logical channels; -100...600 °C; Pt'50/Pt'100/Pt'500 GOST: -200...600 °C; -60...180 °C; -50...200 °C; Cu'50/Cu'100 GOST: -200...200 °C; and 0-20 and 4-20 per second, minute or hour. These functions can help adapt the instrument to the required measurement method, display behaviour and operating workflow without changing the underlying product platform.

Power, Protection and Construction

The physical and electrical design of MultiCon CMC-141 is defined by its available power supply, environmental and construction characteristics. The listed configuration includes Panel mounting; 144 × 144 × 100 mm case; 16...35 V AC; 19...50 V DC; 85...260 V AC/DC; 0...+50 °C; -20...+50 °C; IP40 with front USB Host; IP54 with transparent door; IP65 front; optional panel sealing frame; NORYL-GFN2S E1; Panel mounting; and 144 × 144 × 100 mm. These details provide the information needed to assess compatibility with the intended installation environment and system requirements.

Key Product Benefits

• MultiCon CMC-141-specific modular input/output architecture.
• Linux-based firmware.
• PID, ON/OFF, time and profile control.
• Data recording up to 10 Hz.
• 4 GB internal data memory.
• Colour TFT touchscreen.
• RS-485 / Modbus RTU, USB Host and model-specific Ethernet.

Designed for Industrial Integration

MultiCon CMC-141 is suited to installations where dependable measurement, clear indication and straightforward integration are important. Its combination of signal capabilities, configurable functions, outputs and interface options provides a practical platform for connecting measurement tasks with industrial monitoring and automation equipment.

Technical Information

Detailed model information is provided in the specification and feature tables, including available signal ranges, outputs, communication interfaces, functions, power requirements and construction details. Review the tables for the exact configuration and technical values of MultiCon CMC-141.
