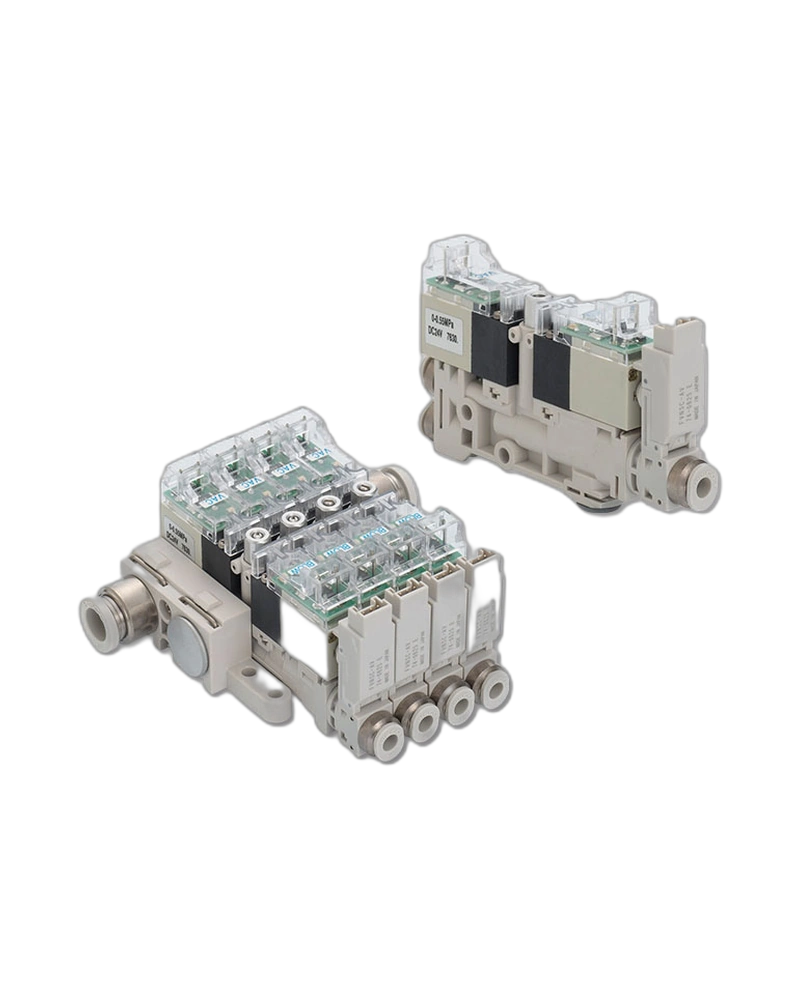

The VN is a compact multi-function vacuum generator module intended to reduce the size and response time of vacuum-system equipment. PISCO positions the VN as a narrow module with direct-acting valve construction and fast ON/OFF operation.
The module architecture is approximately 10.3mm wide and uses a direct-acting main valve. A separate blow-off air-supply port allows the blow-off circuit to be handled independently of the vacuum-generation path.
PISCO specifies ON/OFF response of 5 msec or less and provides eight pressure-sensor options for the VN configuration. The exact pressure, tube and sensor values depend on the selected VN model and configuration.
Use the VN where a compact manifold or multi-station vacuum circuit needs fast valve response and configurable sensing. Select the exact module and sensor option from the PISCO configurator for the required circuit.
| Specification | Details |
|---|---|
| Module type | Multi-function vacuum generator module VN |
| Module width | 10.3mm |
| Main valve | Direct-acting |
| ON/OFF response | 5 msec or less |
| Blow-off air supply | Separate blow-off air-supply port |
| Pressure-sensor options | 8 options available |
| Configuration | Model-specific vacuum and sensor configuration |
