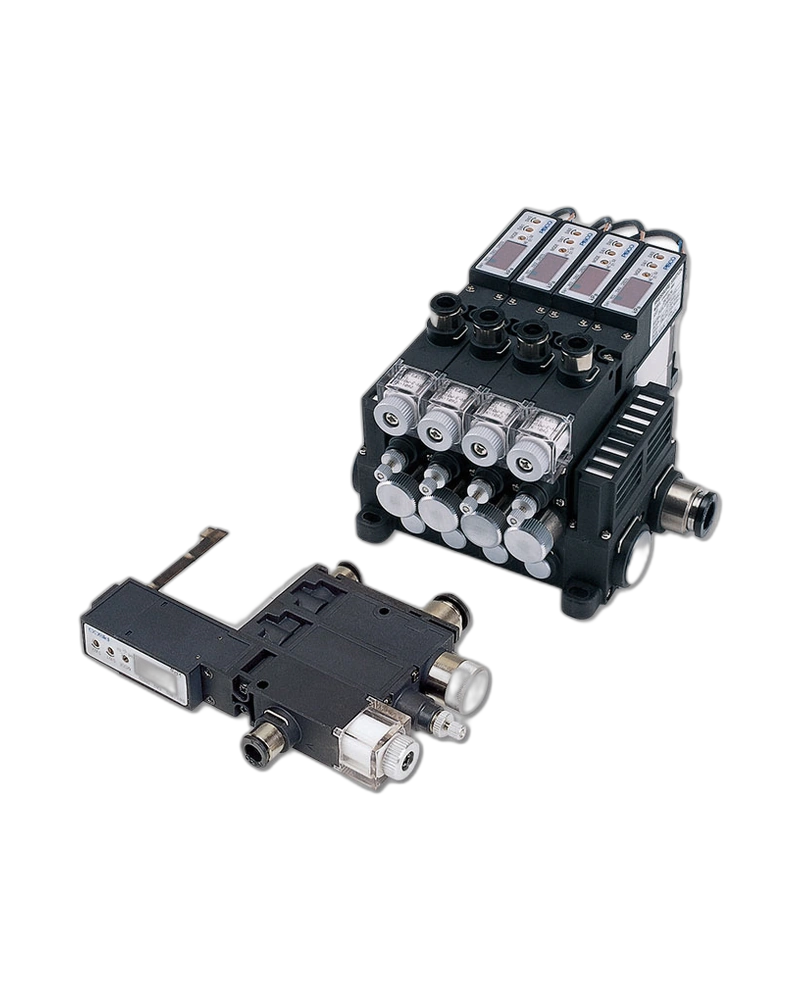

The Multi-function Vacuum Generator VK is PISCO's complex-type vacuum module for compact vacuum-system construction. It brings together the suction valve, blow-off function, vacuum filter and pressure-sensing options so that the vacuum circuit can be assembled as a streamlined module.
The VK family uses a modular construction with the vacuum-generation and air-control functions integrated around a compact ejector assembly. PISCO offers pressure-sensor configurations including LED-display versions and mechanical pressure-sensor options.
The official VK catalog specifies air [JIS B 8392-1 compliant Class 1.2.1 to 2.4.3], operating pressure 0.25 to 0.7MPa for the LED-display pressure-sensor configuration, operating temperature 5 to 50℃, humidity 35 to 85% RH, air-supply proof pressure 1.05MPa and vacuum-circuit proof pressure 0.2MPa. The vacuum filter uses a PVFM element with 5μm filtration accuracy and a 1,130mm² filter area. Blow-off air is 0 to 40L/min [ANR] at 0.5MPa.
The VK is intended for centralized or modular vacuum equipment where suction, release and sensing need to be coordinated. Use the exact sensor, valve and vacuum-port configuration selected for the required application.
| Specification | Details |
|---|---|
| Fluid medium | Air [JIS B 8392-1: Class 1.2.1 to 2.4.3] |
| Operating pressure range | 0.25 to 0.7MPa (with LED display pressure-sensor configuration) |
| Operating temperature range | 5 to 50℃ (No freezing) |
| Operating humidity range | 35 to 85% RH (No dew condensation) |
| Proof pressure, air supply circuit | 1.05MPa |
| Proof pressure, vacuum circuit | 0.2MPa |
| Rated solenoid voltage | 24 VDC ±10% |
| Vacuum filter element | PVFM (polyvinyl formal) |
| Filtering accuracy | 5μm |
| Filter area | 1,130mm² |
| Blow-off air flow rate | 0 to 40L/min [ANR] at 0.5MPa |
| Mechanical pressure sensor setting | -20 to -80kPa |
| Mechanical pressure sensor accuracy | ±4kPa |
| Mechanical pressure sensor hysteresis | 16kPa max. |
| Mechanical sensor switch | Common / N.O. / N.C. |
| Factory default mechanical sensor pressure | Approx. -50kPa |
