Product Overview

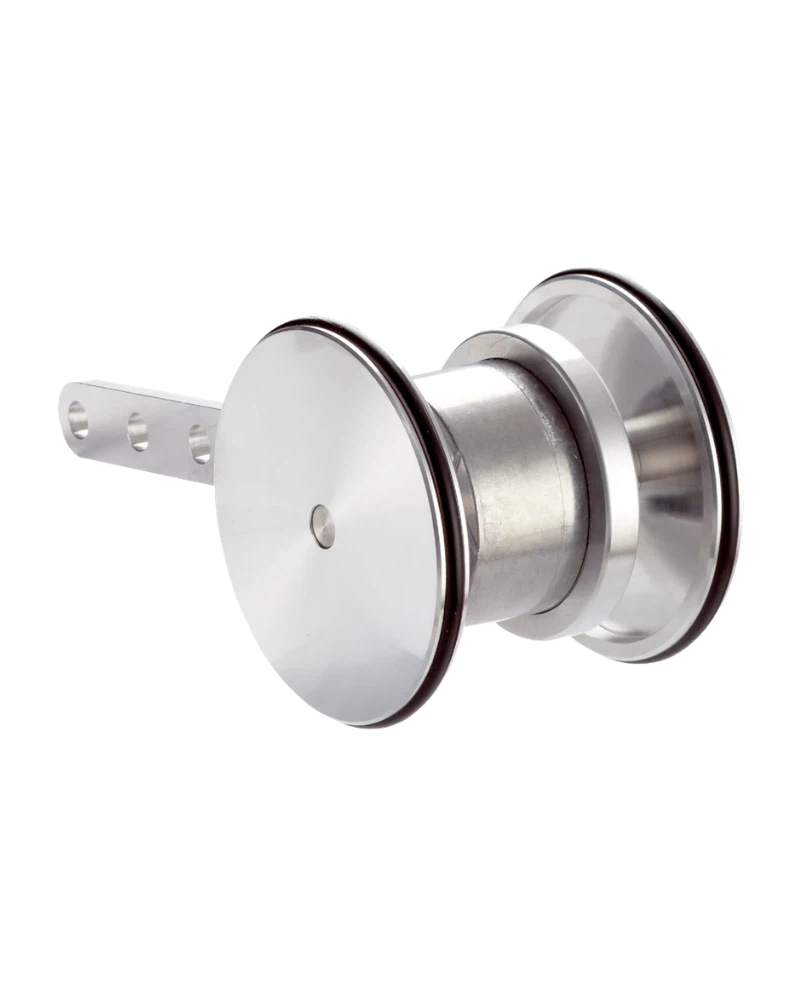

The SICK DFV60 Measuring Wheel Encoder is a precision incremental position sensor designed for accurate distance measurement in industrial automation applications. It features a high-resolution measuring system with 218.45 pulses per millimeter, enabling precise tracking of linear movement through the rotation of a measuring wheel. The encoder is built with robust materials including stainless steel shaft and aluminum housing, ensuring durability under demanding conditions. With a universal 8-wire cable connection and TTL/HTL interface, it offers reliable signal transmission for integration into control systems. Designed for continuous operation in harsh environments, the DFV60 delivers consistent performance across a wide temperature range and is ideal for applications requiring high measurement accuracy and long-term reliability.

Key Features and Technology

The DFV60 employs an incremental communication interface with TTL/HTL output to provide accurate position feedback. It generates 218.45 pulses per millimeter, translating to a measuring increment of 0.005 mm per pulse, ensuring fine resolution in distance measurement. The encoder includes reverse polarity protection and short-circuit protection for output lines, enhancing system safety and reliability. A spring arm mechanism made from aluminum ensures stable contact with the surface during operation, while the measuring wheel core is constructed to withstand continuous use within a ±10 mm permissible working area. The technology is based on standard product design and does not constitute a safety component as defined in the Machinery Directive. All electronic failures are considered hazardous, and users should follow proper installation and maintenance procedures.

Technical Characteristics

The SICK DFV60 offers a resolution of 218.45 pulses per millimeter (0.005 mm/pulse), with a maximum output frequency of 820 kHz. It operates within a supply voltage range of 4.5 V to 32 V and can deliver up to 30 mA load current. The encoder features an IP65 enclosure rating, protecting against dust and water jets, and is suitable for operation in environments with relative humidity up to 90% (condensation not permitted). The operating temperature range spans from –20 °C to +100 °C, while storage conditions allow temperatures as low as –40 °C and as high as +100 °C. The cable is made of PUR material and has a universal 8-wire connection with a standard 5-meter length. All values refer to the mounted encoder, and self-heating of up to 3.3 K per 1,000 rpm must be considered when designing system thermal performance.

Configuration and Integration

The DFV60 integrates seamlessly into industrial automation systems via its incremental TTL/HTL interface, supporting direct connection to PLCs or motion controllers. The universal 8-wire cable allows flexible installation with standard wiring practices. Mounting is preferably from above, though mounting from below is possible depending on application requirements. The encoder’s spring arm mechanism ensures consistent contact with the surface during measurement, and the shaft is made of stainless steel for durability. The measuring wheel core is constructed from aluminum to ensure mechanical stability. Users are advised to regularly inspect the measuring wheel due to potential wear from contact pressure, speed, and environmental conditions. Proper alignment and mechanical setup are essential to maintain accuracy over time.

Operating Environment

The DFV60 is designed for operation in a wide range of industrial environments. It can function reliably between –20 °C and +100 °C, with storage capabilities extending from –40 °C to +100 °C when unboxed. The IP65 enclosure provides protection against dust ingress and water jets, making it suitable for outdoor or high-moisture settings. Relative humidity should not exceed 90%, as condensation is not permitted. When operating at speeds above 1,000 rpm, a self-heating effect of up to 3.3 K must be accounted for in the overall system design. The product is not intended for use in safety-critical applications defined by the Machinery Directive, and users should ensure that all electronic failures are properly managed within their control systems.

Industrial Applications

The DFV60 Measuring Wheel Encoder is ideal for applications requiring precise linear distance measurement, such as material handling, conveyor monitoring, and automated inspection systems. Its high resolution and robust construction make it suitable for use in manufacturing lines where accurate position feedback is essential. The encoder can be mounted from above or below the measuring surface, offering flexibility in installation. Applications include edge detection, length measurement, and process control in packaging, logistics, and production environments. Regular maintenance of the measuring wheel is recommended due to wear caused by contact pressure, speed, and environmental factors. Users should monitor performance over time and replace the measuring wheel as needed to maintain accuracy and reliability.
