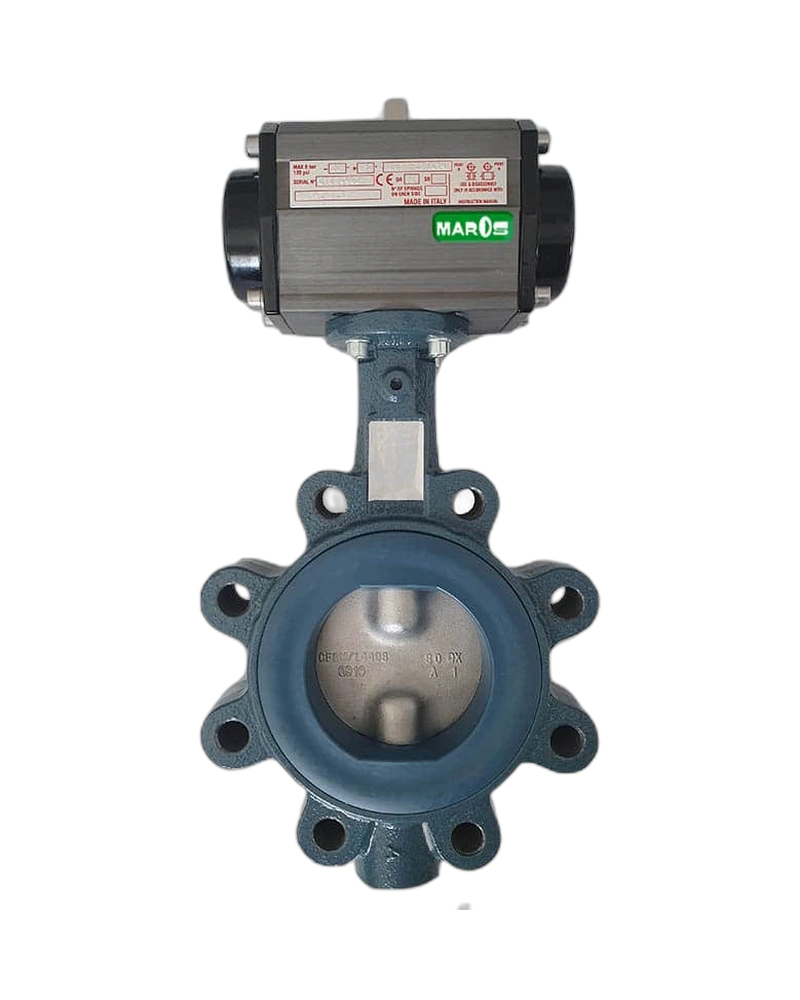

LUG BUTTERFLY VALVE - 250MM - 10"

LUG BUTTERFLY VALVE - 250MM - 10" is a MAROS Engineering solution for industrial automation and fluid or vacuum control. MAROS code: 250MM; Selected size: 10". The configuration is presented with the manufacturer-published technical characteristics relevant to this product entry.

Product Overview

Type: bidirectional shut-off and regulating pneumatic butterfly valve, lug type. Sizes: 3/4"–24" (DN20–DN600). Fluid temperature: -20°C/+160°C depending on pressure and materials, valve without actuator. Differential pressure: max. Δp 16 bar. The product configuration is intended for applications where the stated valve or actuator design, connection arrangement, operating range and construction materials are required.

Configuration

MAROS code: 250MM; Selected size: 10". The selected nominal size and manufacturer code are retained exactly from the product record. Where MAROS publishes multiple versions, the applicable actuation, connection, pressure, temperature, sealing and material choices are included in the technical information below.

Technical Specifications

Type: bidirectional shut-off and regulating pneumatic butterfly valve, lug type. Sizes: 3/4"–24" (DN20–DN600). Fluid temperature: -20°C/+160°C depending on pressure and materials, valve without actuator. Differential pressure: max. Δp 16 bar. Vacuum tightness: up to 0.2 absolute bar depending on fluid/material. Body: ductile cast iron GGG40 standard. Disc: CF8M standard. Seals: NBR and EPDM. Versions: double and single acting. Standard operating temperature with actuator: -20°C/+80°C. On request: ATEX, carbon-steel body, steel/AISI 304-316 discs, CSM/FPM/VSI/AU/PTFE seals and actuators for other temperature ranges.

Construction and Materials

Type: bidirectional shut-off and regulating pneumatic butterfly valve, lug type. Sizes: 3/4"–24" (DN20–DN600). Fluid temperature: -20°C/+160°C depending on pressure and materials, valve without actuator. Differential pressure: max. Δp 16 bar. Vacuum tightness: up to 0.2 absolute bar depending on fluid/material. Body: ductile cast iron GGG40 standard. Disc: CF8M standard. Seals: NBR and EPDM. Versions: double and single acting. Standard operating temperature with actuator: -20°C/+80°C. On request: ATEX, carbon-steel body, steel/AISI 304-316 discs, CSM/FPM/VSI/AU/PTFE seals and actuators for other temperature ranges.

Applications

LUG BUTTERFLY VALVE - 250MM - 10" LUG BUTTERFLY VALVE - 250MM - 10" is an for industrial automation and pneumatic fluid or vacuum control. Type: bidirectional shut-off and regulating pneumatic butterfly valve, lug type. Fluid temperature: -20°C/+160°C depending on pressure and materials, valve without actuator.

Available Options

• MAROS Engineering LUG family
• MAROS configuration code 250MM; nominal size 10"
• Official manufacturer construction and technical configuration
• Published actuation and connection characteristics
• Published pressure and temperature limits where specified
• Published materials, seals and available options where applicable
