Explore performance details, construction highlights, applications, and technical information in one clear overview.

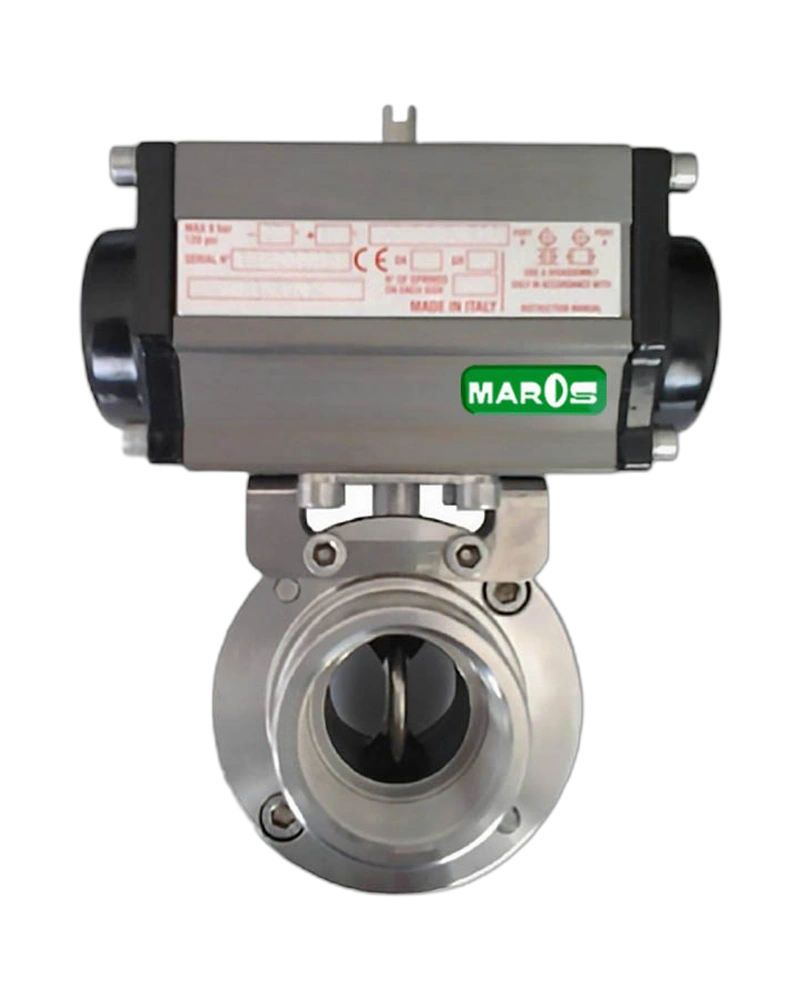

STAINLESS STEEL BUTTERFLY VALVE is a MAROS Engineering solution for industrial automation and fluid or vacuum control. The configuration is presented with the manufacturer-published technical characteristics relevant to this product entry.
Type: pneumatic butterfly valve with AISI 304L or AISI 316L stainless-steel body, intended for food and fluid-control applications. Sizes: 1/2"–4" (DN15–DN100) depending on model. Fluid temperature depends on medium and materials. Differential pressure: max. Δp 6 bar. The product configuration is intended for applications where the stated valve or actuator design, connection arrangement, operating range and construction materials are required.
The selected nominal size and manufacturer code are retained exactly from the product record. Where MAROS publishes multiple versions, the applicable actuation, connection, pressure, temperature, sealing and material choices are included in the technical information below.
Type: pneumatic butterfly valve with AISI 304L or AISI 316L stainless-steel body, intended for food and fluid-control applications. Sizes: 1/2"–4" (DN15–DN100) depending on model. Fluid temperature depends on medium and materials. Differential pressure: max. Δp 6 bar. Operating pressure: max. 6 bar. Body: stainless steel AISI 304L or 316L. Disc: stainless steel AISI 316L. Seals: EPDM, FPM and silicone rubber. Versions: double and single acting. Standard operating temperature with actuator: -20°C/+80°C. Connection options include female-female GAS, male-male DIN, clamp-clamp BS type and welding-welding ends. ISO 5211 actuator bracket included; alternative actuator temperature ranges are available on request.
Type: pneumatic butterfly valve with AISI 304L or AISI 316L stainless-steel body, intended for food and fluid-control applications. Sizes: 1/2"–4" (DN15–DN100) depending on model. Fluid temperature depends on medium and materials. Differential pressure: max. Δp 6 bar. Operating pressure: max. 6 bar. Body: stainless steel AISI 304L or 316L. Disc: stainless steel AISI 316L. Seals: EPDM, FPM and silicone rubber. Versions: double and single acting. Standard operating temperature with actuator: -20°C/+80°C. Connection options include female-female GAS, male-male DIN, clamp-clamp BS type and welding-welding ends. ISO 5211 actuator bracket included; alternative actuator temperature ranges are available on request.
STAINLESS STEEL BUTTERFLY VALVE STAINLESS STEEL BUTTERFLY VALVE is an for industrial automation and pneumatic fluid or vacuum control. Product Overview The SS BUTTERFLY range is designed around the operating principle and construction published by MAROS Engineering. Type: pneumatic butterfly valve with AISI 304L or AISI 316L stainless-steel body, intended for food and fluid-control applications.
| Feature | Specification |
|---|---|
| Type | pneumatic butterfly valve with AISI 304L or AISI 316L stainless-steel body, intended for food and fluid-control applications |
| Sizes | 1/2"–4" (DN15–DN100) depending on model. Fluid temperature depends on medium and materials |
| Differential pressure | max. Δp 6 bar |
| Operating pressure | max. 6 bar |
| Body | stainless steel AISI 304L or 316L |
| Disc | stainless steel AISI 316L |
| Seals | EPDM, FPM and silicone rubber |
| Versions | double and single acting |
| Standard operating temperature with actuator | -20°C/+80°C. Connection options include female-female GAS, male-male DIN, clamp-clamp BS type and welding-welding ends. ISO 5211 actuator bracket included; alternative actuator temperature ranges are available on request |
