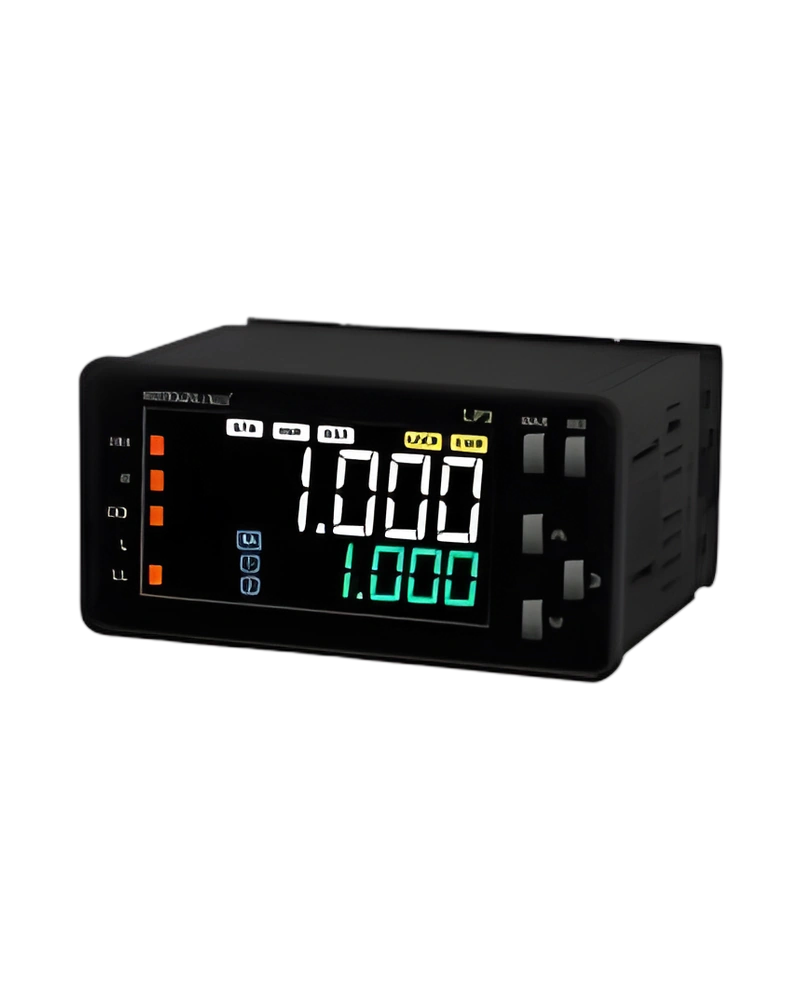

LP3 LCD display Multi pulse meter is a Hanyoung NUX panel meter designed for industrial measurement, indication and process monitoring. Its configuration is determined by the available input signals, measurement or recording functions, display and output characteristics, with model information of LP3 | LP6. Input Signal: Non-contact (Max. 50 KHz, ON/OFF pulse width Min. 10 us) Contact (Max. 30 Hz ON/OFF pulse width Min. 16.6 ms); Measurement range: ▪F1, F2, F10, F11, F12, F13 : 0.0005Hz ~ 50KHz ▪F3, F4, F5, F6 : 0.01s ~ 3200s ▪F7, F8, F9 : 0 ~ 99999; Measurement accuracy: ▪F1, F2, F10, F11, F12, F13 : F.S. ±0.05% rdg ±1digit ▪F3, F4, F5, F6 : F.S. ±0.01 % rdg ±1digit; Display: ▪Negative-LCD ▪4 rows 2 columns ▪PV (white) ▪SV (green).
The listed measurement range, accuracy, input method, display format and connection details provide the main selection points for panel and control-system integration. Display cycle: 0.05 s / 0.5 s / 1 sec / 2 sec / 4 sec / 8 sec; Display range: -99999 ~ 99999; RS485 communication output: Communication protocol - Modbus-RTU Communication method - RS485 (2-wire half duplex) Communication speed - 2400 / 4800 / 9600 / 19200 / 38400 bps; Character size: â–ªPV (14.5 mm) â–ªSV (10.0 mm) | â–ªPV (10.5 mm) â–ªSV (6.7 mm).
Key strengths of the LP3 LCD display Multi pulse meter come from the combination of its functional configuration and practical installation specifications. The following characteristics highlight the values that matter most when comparing the product with equipment requirements.
Display: ▪Negative-LCD ▪4 rows 2 columns ▪PV (white) ▪SV (green); Input Signal: Non-contact (Max. 50 KHz, ON/OFF pulse width Min. 10 us) Contact (Max. 30 Hz ON/OFF pulse width Min. 16.6 ms); Power Supply Voltage: 100 - 240 V a.c. 50/60 Hz (Voltage fluctuation rate : ±10 %); Measurement accuracy: ▪F1, F2, F10, F11, F12, F13 : F.S. ±0.05% rdg ±1digit ▪F3, F4, F5, F6 : F.S. ±0.01 % rdg ±1digit; Ambient temperature: -10 ~ 50 ℃.
The main technical characteristics of LP3 LCD display Multi pulse meter are defined by its electrical ratings, operating inputs or outputs, performance values and control or indication functions. These specifications provide the working limits for the selected configuration. Power Supply Voltage: 100 - 240 V a.c. 50/60 Hz (Voltage fluctuation rate : ±10 %); Power consumption: ▪LP3-5ANN : Max. 9 VA ▪LP3-5A3RN : Max. 11 VA ▪LP3-5A5RN : Max. 11 VA ▪LP3-5A5NC/5A5PC : Max. 10 VA ▪LP3-5A5NT/5A5PT : Max. 12 VA | ▪LP6-5ANN : Max. 8 VA ▪LP6-5A5NN/5A5PN : Max. 9 VA ▪LP6-5A3RN : Max. 9 VA ▪LP6-5ANC : Max. 9 VA ▪LP6-5ANT : Max. 11 VA; External power supply: 12 V d.c. ±10 % 100 mA; 100 - 240 V a.c. 50/60 Hz (Voltage fluctuation rate: ±10 %).
Additional technical characteristics include .
The physical design of LP3 LCD display Multi pulse meter should be considered together with the installation environment and the available mounting or display arrangement. Weight (excluding box): 150 g | 108 g; Vibration durability: 10 - 55Hz double amplitude 0.75 mm X, Y, Z each direction, 2 hr; Insulation resistance: Min. 100 MΩ (500 V d.c.), conductive part terminal - Non-conductive metal; Dielectric strength: 2,000 V a.c. 60 Hz for 1 minute (between each conductive terminal).
Further construction and environmental details include Noise immunity: ±2000 V (pulse width l μs, square-wave noise by noise simulator is applied among the power terminals); Ambient temperature: -10 ~ 50 ℃; Storage temperature: -20 ~ 60 ℃.
Integration of LP3 LCD display Multi pulse meter begins with matching its connection, input or control signal and output requirements to the surrounding equipment. Control output: 3- stage | ▪H, L - contact point (SPDT) ▪GO - contact point (SPST) | ▪H, GO, L - contact point (SPST); PV transmission output: 4 - 20 mA d.c. Load resistance 600 Ω or less (response time 800 ms or less); Display: ▪Negative-LCD ▪4 rows 2 columns ▪PV (white) ▪SV (green); Input Signal: Non-contact (Max. 50 KHz, ON/OFF pulse width Min. 10 us) Contact (Max. 30 Hz ON/OFF pulse width Min. 16.6 ms).
Additional operating and interface details include Power Supply Voltage: 100 - 240 V a.c. 50/60 Hz (Voltage fluctuation rate : ±10 %); Measurement accuracy: ▪F1, F2, F10, F11, F12, F13 : F.S. ±0.05% rdg ±1digit ▪F3, F4, F5, F6 : F.S. ±0.01 % rdg ±1digit; Ambient temperature: -10 ~ 50 ℃. These values provide a practical reference for wiring, setup and normal operation within the selected configuration.
Choose LP3 LCD display Multi pulse meter by confirming the exact model or configuration against the required operating conditions. The available model information is LP3 | LP6. Model: LP3 | LP6; Ambient humidity: 35 ~ 85 % R.H.; Display: â–ªNegative-LCD â–ª4 rows 2 columns â–ªPV (white) â–ªSV (green); Input Signal: Non-contact (Max. 50 KHz, ON/OFF pulse width Min. 10 us) Contact (Max. 30 Hz ON/OFF pulse width Min. 16.6 ms).
Before installation, confirm Power Supply Voltage: 100 - 240 V a.c. 50/60 Hz (Voltage fluctuation rate : ±10 %); Measurement accuracy: ▪F1, F2, F10, F11, F12, F13 : F.S. ±0.05% rdg ±1digit ▪F3, F4, F5, F6 : F.S. ±0.01 % rdg ±1digit; Ambient temperature: -10 ~ 50 ℃. Matching the model, electrical ratings, signal requirements, physical arrangement and environmental limits helps keep the product within its specified operating conditions.
| Specification | Details |
|---|---|
| Model | LP3 | LP6 |
| Power Supply Voltage | 100 - 240 V a.c. 50/60 Hz (Voltage fluctuation rate : ±10 %) |
| Power consumption | â–ªLP3-5ANN : Max. 9 VA â–ªLP3-5A3RN : Max. 11 VA â–ªLP3-5A5RN : Max. 11 VA â–ªLP3-5A5NC/5A5PC : Max. 10 VA â–ªLP3-5A5NT/5A5PT : Max. 12 VA | â–ªLP6-5ANN : Max. 8 VA â–ªLP6-5A5NN/5A5PN : Max. 9 VA â–ªLP6-5A3RN : Max. 9 VA â–ªLP6-5ANC : Max. 9 VA â–ªLP6-5ANT : Max. 11 VA |
| Display | â–ªNegative-LCD â–ª4 rows 2 columns â–ªPV (white) â–ªSV (green) |
| Character size | â–ªPV (14.5 mm) â–ªSV (10.0 mm) | â–ªPV (10.5 mm) â–ªSV (6.7 mm) |
| Input Signal | Non-contact (Max. 50 KHz, ON/OFF pulse width Min. 10 us) Contact (Max. 30 Hz ON/OFF pulse width Min. 16.6 ms) |
| Input | Voltage | [H] level (4.5 - 24 V d.c.) [L] level (0 - 1 V d.c.) Input impedance (4.5 kΩ) |
| Non- voltage | Impedance during short-circuit (Max. 300 Ω) Residual voltage (Max. 1 V) Impedance during open (Min. 100 kΩ) |
| Measurement range | â–ªF1, F2, F10, F11, F12, F13 : 0.0005Hz ~ 50KHz â–ªF3, F4, F5, F6 : 0.01s ~ 3200s â–ªF7, F8, F9 : 0 ~ 99999 |
| Measurement accuracy | ▪F1, F2, F10, F11, F12, F13 : F.S. ±0.05% rdg ±1digit ▪F3, F4, F5, F6 : F.S. ±0.01 % rdg ±1digit |
| External power supply | 12 V d.c. ±10 % 100 mA |
| Display cycle | 0.05 s / 0.5 s / 1 sec / 2 sec / 4 sec / 8 sec |
| Display range | -99999 ~ 99999 |
| Power outage compensation | Approx. 10 years (non-volatile EEPROM only) |
| Control output | 3- stage | â–ªH, L - contact point (SPDT) â–ªGO - contact point (SPST) | â–ªH, GO, L - contact point (SPST) |
| 5- stage | â–ªHH, H, GO, L, LL - contact point (SPST) or, Non-contact (NPN or PNP open collector) *contact point (shared HH/H-COM output and shared LL/L-COM output) | â–ªHH, H, GO, L, LL - Non-contact (NPN or PNP open collector) |
| capac ity | â–ªNO contact (250 V a.c. 5A resistance load) â–ªNC contact (250 V a.c. 2A resistance load) â–ªNon-contact (12 - 24 V d.c. 50 mA or less) | â–ªContact (250 V a.c. 5A resistance load) â–ªNon-contact (12 - 24 V d.c. 50 mA or less) |
| Relay life cycle | Electri cal | Over 100,000 times (250 V a.c. 2A) | Over 100,000 times (250 V a.c. 5A) |
| Mechani cal | More than 10 million times | More than 5 million times |
| PV transmission output | 4 - 20 mA d.c. Load resistance 600 Ω or less (response time 800 ms or less) |
| RS485 communication output | Communication protocol - Modbus-RTU Communication method - RS485 (2-wire half duplex) Communication speed - 2400 / 4800 / 9600 / 19200 / 38400 bps |
| Vibration durability | 10 - 55Hz double amplitude 0.75 mm X, Y, Z each direction, 2 hr |
| Insulation resistance | Min. 100 MΩ (500 V d.c.), conductive part terminal - Non-conductive metal |
| Dielectric strength | 2,000 V a.c. 60 Hz for 1 minute (between each conductive terminal) |
| Noise immunity | ±2000 V (pulse width l μs, square-wave noise by noise simulator is applied among the power terminals) |
| Ambient temperature | -10 ~ 50 ℃ |
| Storage temperature | -20 ~ 60 ℃ |
| Ambient humidity | 35 ~ 85 % R.H. |
| protection structure | â–ªIP66 (front) â–ªTerminal block protection cover applied |
| Weight (excluding box) | 150 g | 108 g |
| No | Type | Category | Title | File |
| 1 | Manual > Instruction Manual | Panel Meter | LP series Instruction Manual |
| 2 | Manual > Instruction Manual | Panel Meter | LP3 User manual(old) |
| 1 | CAD > 2D | Panel Meter | LP (2D) |
| 2 | CAD > 3D | Panel Meter | LP (3D) |
| 1 | Software > Program | ALL | Communication Protocol Examples |
| 2 | Software > Program | ALL | TCS Integrated Communication Program Installation file |
| 3 | Software > Communication data | ALL | TCS Integrated Communication Program Manual(EN) |
| No | Mark | Category | Title | File |
| 1 | Certification > CE | Panel Meter | LP3(LVD)DoC |
| 2 | Certification > CE | Panel Meter | LP3-5ANN (EMC) |
| 3 | Certification > CE | Panel Meter | LP6(LVD)DoC |
| 4 | Certification > CE | Panel Meter | LP6-5ANN(EMC)CoC |
| 5 | Certification > KC | Panel Meter | LP3-5ANN |
| 6 | Certification > KC | Panel Meter | LP6-5ANN |
