Product Overview

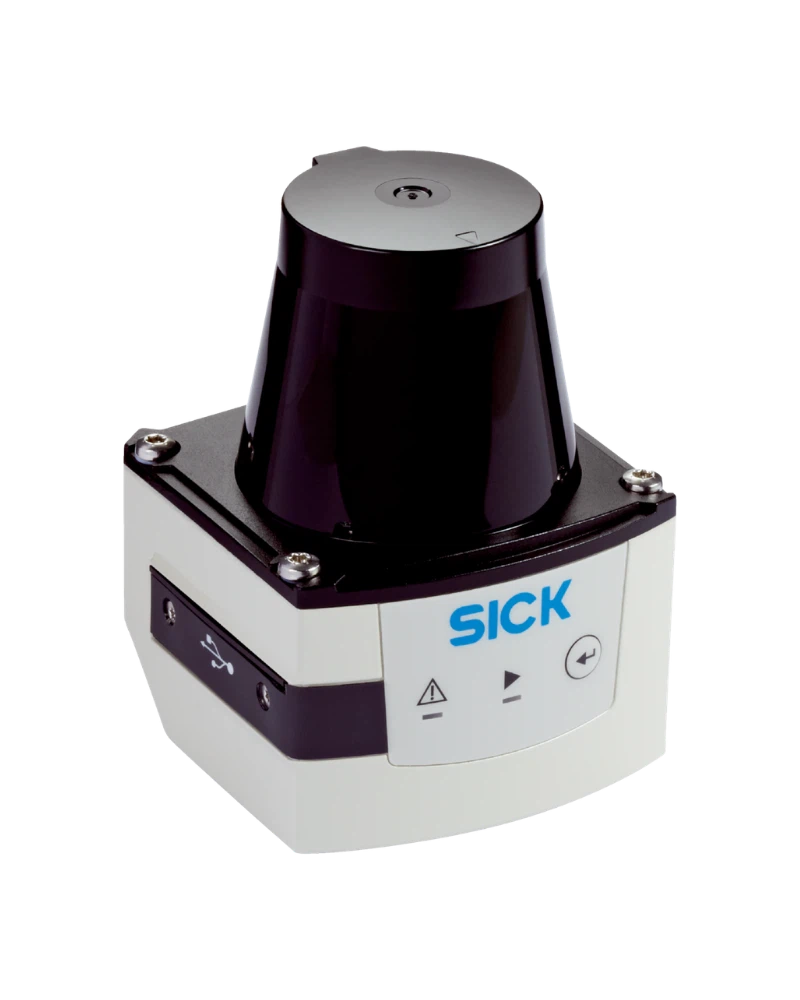

The TiM-P series LiDAR sensors from SICK deliver precise, reliable distance measurements using advanced Hddm+ technology. Designed for industrial automation applications requiring high accuracy and robust performance, these sensors emit multiple laser pulses in a swift chronological sequence to capture reflection data from measuring objects. The resulting mean value ensures stable and consistent readings even under challenging environmental conditions such as dust, moisture, or ambient light interference. With a working range of 0.05 m to 10 m (up to 25 m with >50% remission), the TiM-P series offers flexible detection capabilities across various industrial environments. The sensors provide measurement data via Ethernet TCP/IP and support field evaluation through flexible fields, making them ideal for integration into automated systems where real-time distance feedback is essential.

Key Features and Technology

SICK’s innovative Hddm+ technology enables highly stable and accurate measurements by emitting multiple laser pulses in a rapid chronological sequence. The system calculates the reflection data from each pulse to generate a mean value, ensuring seamless scanning and reliable results regardless of surface conditions or environmental disturbances. This approach maintains measurement integrity even when exposed to dirt, dust, moisture, or ambient light. The infrared light source operates at 850 nm, providing efficient detection without interference from visible light. The technology ensures exceptional performance in dynamic environments where consistency and precision are critical, making the TiM-P series a dependable solution for demanding industrial applications.

Technical Characteristics

The TiM-P LiDAR sensors operate within a working range of 0.05 m to 10 m (up to 25 m with >50% remission), offering flexibility based on application needs. The response time is typically 70 ms, enabling fast feedback in real-time control systems. Measurement data is transmitted via Ethernet TCP/IP, supporting direct integration into networked automation environments. Supply voltage ranges from 10 V DC to 28 V DC (or 9 V DC to 28 V DC for certain models), ensuring compatibility with a wide range of power supplies. The sensors feature an infrared light source at 850 nm and are available in different weight variants, including 90 g, 150 g, and 250 g models. Resolution is enhanced through Hddm+ technology, delivering accurate and repeatable distance measurements across the full detection range.

Configuration and Integration

The TiM-P series supports Ethernet TCP/IP for direct transmission of measurement data to control systems, enabling real-time monitoring and integration into existing automation networks. While IO-Link is not supported in all models (indicated by '–'), the available Ethernet interface allows flexible field evaluation using customizable fields. The sensors are designed for straightforward integration into industrial environments where distance sensing is required. No specific parameter configuration via IO-Link is provided, but data can be evaluated flexibly in the field. This makes them suitable for use with PLCs or SCADA systems that support TCP/IP communication protocols. Integration requires a stable Ethernet connection and appropriate power supply within the specified voltage range.

Operating Environment

The TiM-P sensors are designed for operation under standard industrial conditions, with a working range of 0.05 m to 10 m (up to 25 m with >50% remission). They perform reliably in ambient environments typical of manufacturing and automation settings, including exposure to dust, moisture, and ambient light. The sensors are not rated for extreme temperatures or high humidity levels beyond standard industrial limits. Operation is supported within a supply voltage range of 10 V DC to 28 V DC (or 9 V DC to 28 V DC), ensuring compatibility with common industrial power sources. No specific environmental certifications are listed, but their design ensures robustness in typical production environments where stable distance measurements are required.

Industrial Applications

The TiM-P LiDAR sensors are ideal for applications requiring precise and reliable distance detection in dynamic or challenging environments. Suitable uses include object detection, presence sensing, and position monitoring in assembly lines, packaging systems, and material handling processes. Their ability to maintain accuracy despite dirt, dust, or ambient light makes them particularly effective in high-moisture or dirty industrial settings. The sensors are well-suited for integration into automated inspection systems, robotic guidance, and safety monitoring where consistent distance feedback is essential. With a working range from 0.05 m to 10 m (up to 25 m with >50% remission), they provide reliable performance across a wide variety of industrial tasks involving object proximity detection.
