Product Overview

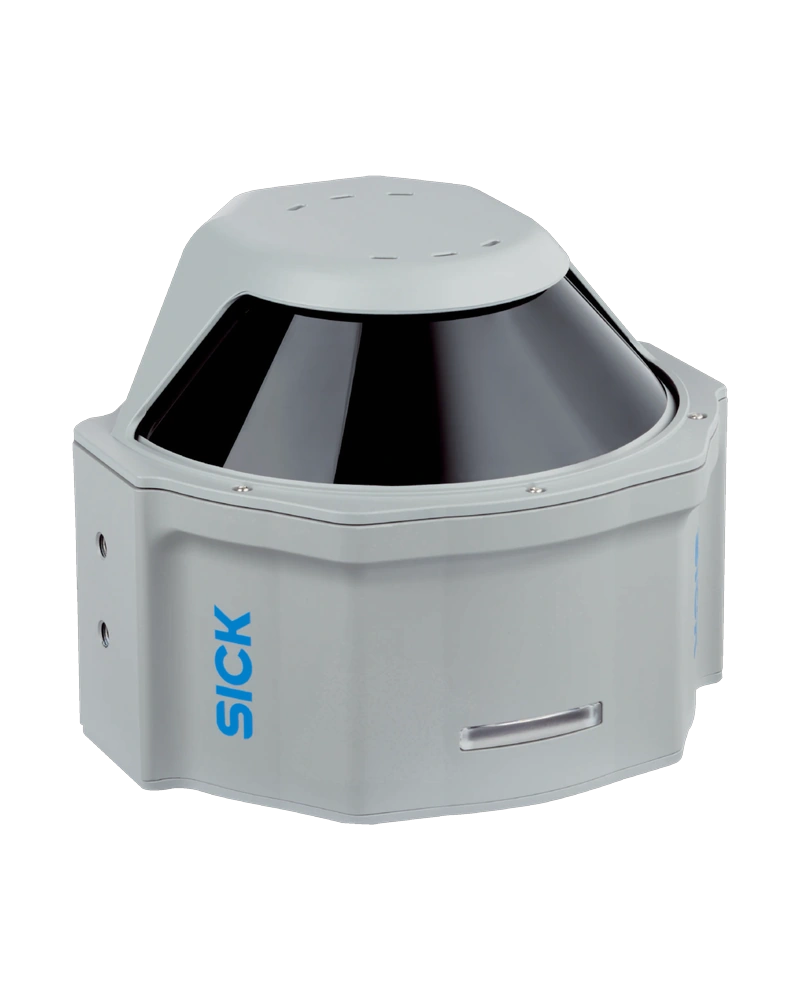

The SICK MRS6000 is a high-performance LiDAR sensor designed for precise distance measurement in industrial automation environments. Utilizing infrared light at 870 nm, it delivers reliable range detection over distances from 0.5 meters to 200 meters. With a scanning frequency of 10 Hz and excellent angular resolution—0.13° horizontally and 0.625° vertically—the sensor provides accurate spatial data for dynamic environments. Its robust aluminum and PMMA housing ensures durability, while the gray RAL 7042 finish offers visual consistency in industrial settings. The MRS6000 is ideal for applications requiring precise object detection, positioning, and motion monitoring across a wide range of operating conditions.

Key Features and Technology

The MRS6000 employs infrared light at 870 nm to detect objects through time-of-flight measurement. Its scanning frequency of 10 Hz enables real-time data acquisition, making it suitable for fast-moving applications. The sensor achieves high angular resolution—horizontal 0.13° and vertical 0.625°—ensuring precise spatial orientation detection. In extended measuring range mode, the sensor maintains performance at 10% remission factor up to 30 meters (x1.4 typical), and at 90% remission factor up to 75 meters (x1.4 typical). This technology ensures reliable operation in varying environmental conditions while maintaining measurement accuracy. The sensor is built for industrial use with a protection class of III, ensuring safe operation under demanding conditions.

Technical Characteristics

The MRS6000 features a working range from 0.5 m to 200 m. Angular resolution is specified as horizontal 0.13° and vertical 0.625°. The sensor operates with a supply voltage of 10 V to 29 V, and supports Ethernet connectivity via three M12 round connectors (supply voltage, Ethernet, I/O). Data transmission rates range from 100 Mbit/s to 1 Gbit/s over TCP/IP for raw data interface and parameterization. The housing is constructed from aluminum and PMMA with a gray RAL 7042 finish. Enclosure ratings are IP65 for dust protection and IP67 for water resistance, ensuring reliable performance in harsh environments. The unit weight is 3.450 kg (net), with dimensions of 125.5 mm x 176 mm x 131 mm (L x W x H). All values are typical; actual performance may vary based on environmental conditions.

Configuration and Integration

The MRS6000 integrates seamlessly into industrial systems via Ethernet with TCP/IP support, enabling direct connection to PLCs or control networks. The raw data interface allows real-time access to measured values for parameterization and system diagnostics. Three M12 round connectors provide dedicated supply voltage, Ethernet, and I/O connections, simplifying wiring and installation. The sensor supports a wide supply voltage range (10 V to 29 V), enhancing compatibility with various power systems. Its compact design and standardized interface make it easy to integrate into existing automation setups without extensive modifications. Data transmission rates of up to 1 Gbit/s ensure low latency and high throughput for real-time applications.

Operating Environment

The MRS6000 is designed for operation within an ambient temperature range of –20 °C to +60 °C, making it suitable for both cold and hot industrial environments. The IP65 and IP67 enclosure ratings provide complete protection against dust ingress and water splashing or immersion up to 1 meter for 30 minutes, ensuring reliable performance in wet or dusty conditions. These environmental capabilities support use in outdoor installations, harsh factory floors, or high-moisture areas. However, actual performance may vary depending on ambient conditions such as humidity, temperature fluctuations, or reflective surfaces. All technical values are typical; real-world results depend on specific environmental factors.

Industrial Applications

The MRS6000 is well-suited for a range of industrial automation tasks including object detection, positioning, and motion monitoring. Its high angular resolution and extended measuring range support accurate tracking in dynamic environments such as robotic guidance, automated guided vehicles (AGVs), and material handling systems. The sensor’s robust design and reliable performance make it ideal for use in packaging lines, warehouse logistics, and assembly processes where precise distance sensing is critical. Applications also include perimeter monitoring, safety zones, and navigation systems requiring consistent detection over long distances under varying conditions.
