Product Overview

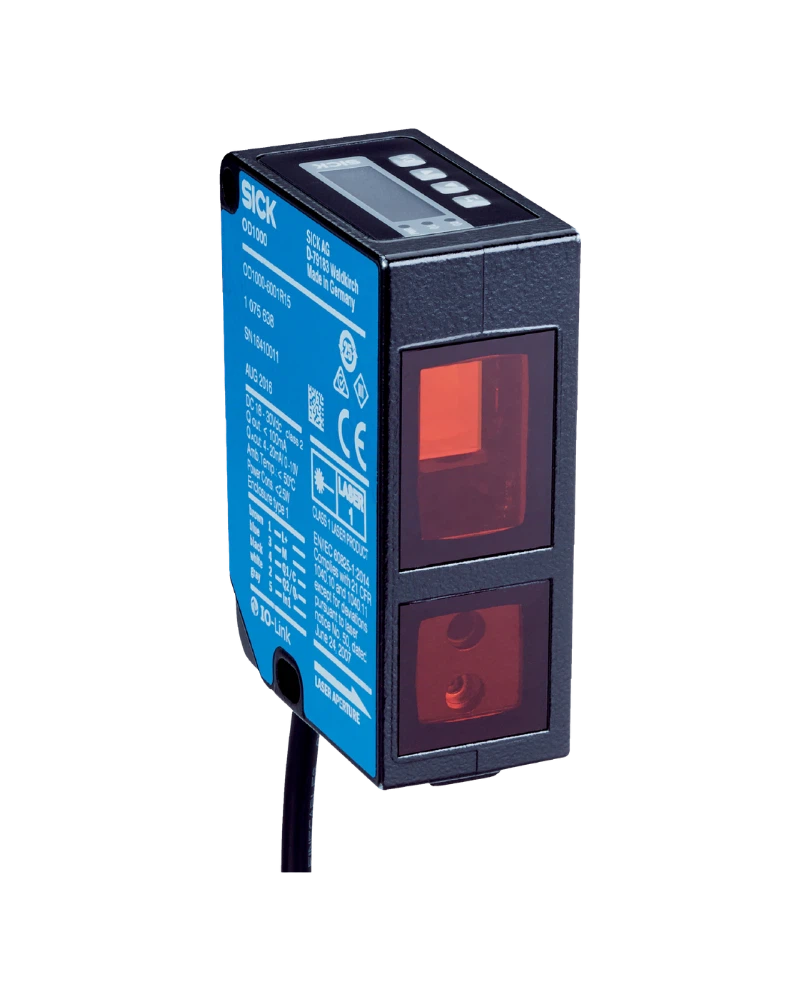

The SICK OD1000 is a high-precision laser distance sensor designed for accurate, reliable measurement in industrial environments. It offers a measuring range from 200 mm to 1,000 mm and delivers exceptional repeatability of 0.4 mm under standard conditions with 90% remission (white) and constant ambient conditions. The sensor features a red laser light source with a typical spot size of 1.5 mm x 1.5 mm over its full range, ensuring precise target detection. With fast response times of ≥1.5 ms at a measuring frequency of up to 3 kHz, the OD1000 provides real-time feedback for dynamic applications. Available in multiple output types including PNP/NPN push-pull digital outputs and analog current (4–20 mA) or voltage (0–10 V), it supports flexible integration into control systems. Its robust IP65/IP67 enclosure rating ensures protection against dust and water ingress, making it ideal for demanding industrial settings.

Key Features and Technology

The OD1000 incorporates advanced measurement technology with adjustable average value or median filters to enhance signal stability in fluctuating environments. It supports multiple switching modes including Distance to Object (DtO), switching window, and object between sensor and background (ObSB) for versatile detection logic. A multifunctional input allows for laser off, external teach-in, and deactivation functions, enabling user-defined operational control. Time functions such as ON/OFF delay and one-shot operation provide flexibility in timing-based applications. The sensor operates with a 6% to 90% remission setting at default configurations, ensuring adaptability across different materials. A minimum warm-up time of 10 minutes must be observed for optimal performance after power-on.

Technical Characteristics

The SICK OD1000 delivers a measuring range of 200 mm to 1,000 mm with a repeatability of 0.4 mm (90% remission, constant ambient conditions). The response time is ≥1.5 ms at a measuring frequency of ≤3 kHz, and the output time is ≥0.33 ms. It features a red laser light source with a typical spot size of 1.5 mm x 1.5 mm across its full range. Output options include two digital push-pull outputs (PNP/NPN) and analog signals: current (4–20 mA, ≤600 Ω) or voltage (0–10 V, >20,000 Ω). The sensor has a 16-bit resolution for high precision. Supply voltage is DC 18 V to 30 V with ripple ≤5 V pp. Data transmission via IO-Link supports both IO-Link V1.1 and V1.0 at rates of 230.4 kbit/s (COM3) or 38.4 kbit/s (COM2). Protection class is III according to EN 50178.

Configuration and Integration

The OD1000 supports flexible integration through its dual digital outputs (PNP/NPN push-pull) and analog current or voltage signals. IO-Link connectivity enables real-time parameter access, diagnostics, and configuration via a compatible host system using IO-Link V1.1 or V1.0. The data transmission rate is 230.4 kbit/s over COM3 and 38.4 kbit/s over COM2. Users can configure switching modes such as DtO, switching window, or ObSB via the IO-Link interface or direct wiring. The multifunctional input allows for laser off, external teach-in, and deactivation functions to tailor operation to specific process needs. With its digital outputs and analog signals, the sensor seamlessly integrates into PLCs, HMIs, and automation systems without requiring additional signal conditioning.

Operating Environment

The SICK OD1000 is designed for reliable performance in harsh industrial environments with an IP65 rating for dust protection and an IP67 rating for water resistance when fully submerged. It operates within a supply voltage range of DC 18 V to 30 V, with ripple limited to ≤5 V pp. The sensor requires a minimum warm-up time of 10 minutes before achieving stable measurement performance. It is rated according to protection class III (EN 50178), indicating safe operation under specified conditions. While not explicitly rated for temperature or humidity ranges in the provided data, its robust enclosure and design ensure suitability for typical industrial environments with controlled ambient conditions. Proper installation and adherence to warm-up requirements are essential for optimal performance.

Industrial Applications

The OD1000 is ideal for applications requiring precise distance measurement over a 200 mm to 1,000 mm range. It is commonly used in automation processes such as level detection, object presence sensing, and position monitoring where high repeatability (0.4 mm) and fast response times (≥1.5 ms) are critical. Its switching modes—DtO, switching window, and ObSB—enable use in edge detection, gap measurement, and background object exclusion scenarios. The sensor is suitable for use in packaging, material handling, and assembly lines where reliable, non-contact distance sensing is required. With support for IO-Link and multiple output types, it integrates easily into existing control systems and enables real-time monitoring and diagnostics in production environments.
