The OD Mini is a compact, lightweight optical displacement sensor designed for precise measurement in tight installation spaces. Ideal for applications requiring high accuracy over distances up to 250 mm, the OD Mini delivers reliable performance with its robust and compact housing. Available in both lightweight aluminum and rugged stainless steel options, it offers flexibility across different industrial environments. Its simple design and proven precision make it a cost-effective solution for demanding measurement tasks in automation and production settings. With its small footprint and high reliability, the OD Mini is well-suited to integration in automated systems where space and accuracy are critical.
The OD Mini uses triangulation technology to measure displacement with high precision. A point of light is projected onto the measuring object, and the reflected light is captured by a light-sensitive receiver at a specific angle. Based on the angular difference between the emitted and received light paths, the sensor calculates the position of the object using triangulation—derived from the Latin 'triangulum' meaning triangle. This method ensures accurate and repeatable measurements, making it ideal for applications where consistent positioning is essential. The technology provides reliable performance in dynamic environments while maintaining minimal influence from external factors such as ambient light or surface reflectivity.

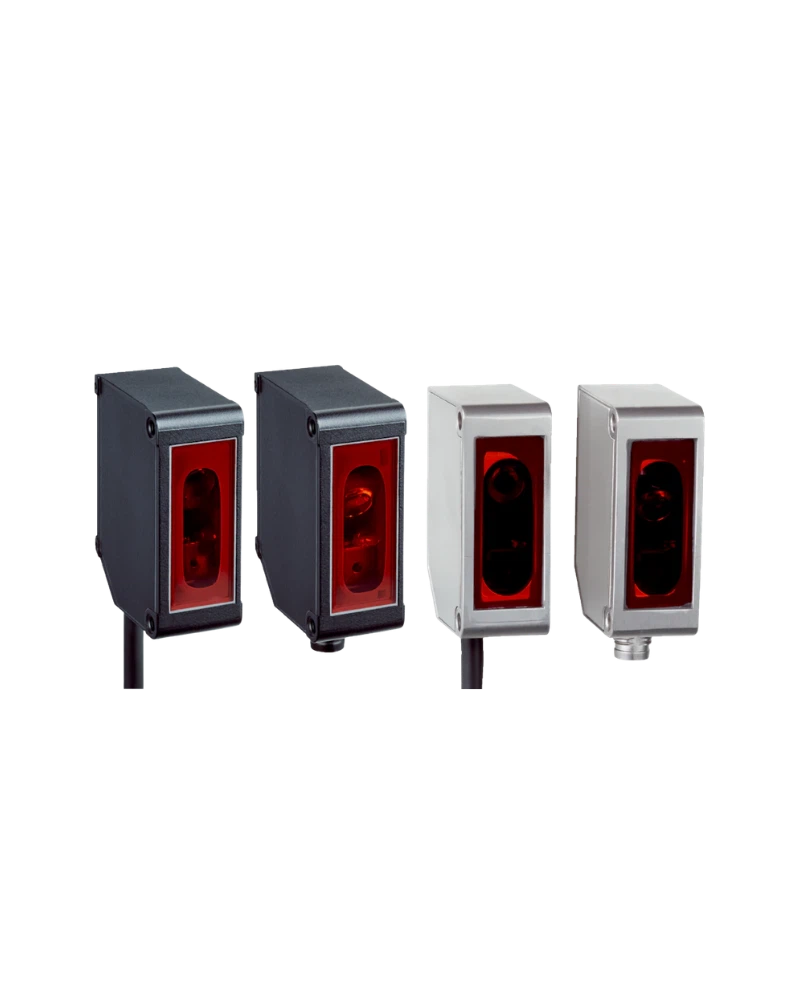

The OD Mini optical displacement sensor operates within a measurement range of up to 250 mm, offering high precision for positioning tasks. It features a compact and lightweight design, making it suitable for tight installation spaces. The sensor is available in two housing materials: lightweight aluminum and rugged stainless steel, providing options based on environmental demands. Its construction ensures precise positioning and durability under operational conditions. The triangulation principle enables reliable detection of object position with minimal drift or error over time, supporting consistent measurement performance across a range of industrial applications.
The OD Mini is designed for easy integration into automated systems. Its compact form factor and simple mounting options allow seamless installation in tight spaces. The sensor can be used directly in robotic guidance systems or as part of positioning mechanisms such as carriage control. It supports standard interface configurations suitable for use with existing automation controllers. No additional calibration is required due to its inherent precision, reducing setup time and operational complexity. Integration into handling and assembly lines is straightforward, enabling immediate deployment without extensive engineering effort.
The OD Mini operates reliably in standard industrial environments. It is designed for use in settings with typical temperature ranges and humidity levels found in manufacturing facilities. The sensor’s rugged housing provides protection against mechanical stress and environmental exposure, making it suitable for continuous operation in demanding conditions. While not explicitly rated for extreme temperatures or corrosive atmospheres, its construction supports long-term performance in standard industrial applications. It is recommended for use in clean environments where surface reflectivity does not significantly interfere with the triangulation process.
The OD Mini finds typical use in robot guidance for front screen installation and high-precision carriage positioning within robotics, handling, and assembly processes. It is also used for height positioning and collision avoidance at cutting heads and gripper control in machine tools. Additionally, it supports quality control tasks such as component inspection and checking the shape of blister packs. Common industries include automotive and parts suppliers, consumer goods manufacturers, pharmaceutical and cosmetics producers, and handling systems where precise object detection is essential.
| Specification | Value |
|---|---|
| weight | sensor in a compact housing |
| interface | s also simplifies integration into industrial networks. This ensures the highest possible reliability and precision when solving a wide range of measurement tasks. |
| OD Mini Optical displacement sensors for tight installation situations and distances of up to | 250 mm |
