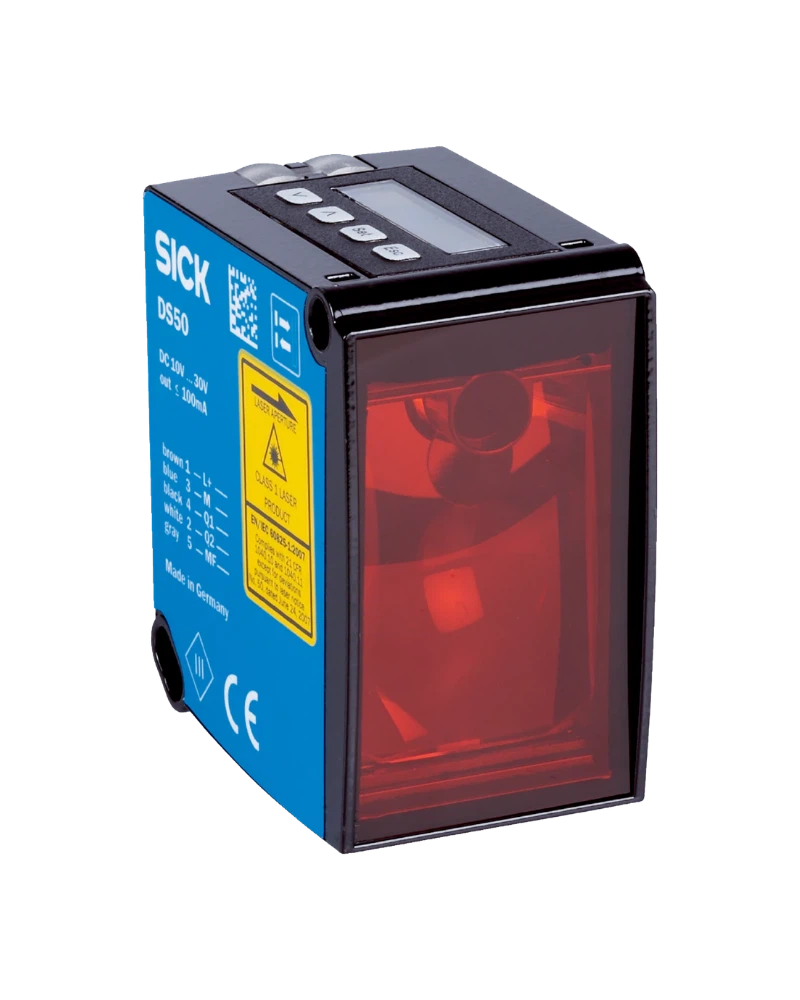

The SICK Dx50 laser distance sensor series delivers high-performance, reliable measurement capabilities across a wide range of industrial applications. Designed with advanced HDDM (High Dynamic Distance Measurement) technology, the Dx50 provides stable and gap-free scanning performance even in challenging environments such as dusty or moist conditions. With measurement ranges up to 10 m or 20 m on objects—extending to 50 m when measuring on a reflector—the sensor ensures accurate distance detection for diverse operational needs. Its robust design supports continuous operation across extreme ambient temperatures and is ideal for dynamic processes requiring precise positioning and monitoring. The Dx50 sets new standards in distance sensing, offering dependable results without compromising performance in demanding industrial settings.
The Dx50 leverages SICK’s proprietary HDDM technology—a milestone in distance sensor development—by measuring the time it takes for multiple laser pulses to travel from the sensor to a target and back. This method enables highly accurate, stable, and gap-free scanning with exceptional reliability. The technology operates effectively even in dirty, dusty, or moist environments, ensuring consistent performance where traditional sensors might fail. By using the runtime of several laser pulses, the Dx50 achieves precise distance calculations without signal degradation. This innovation ensures reliable measurement results across varying conditions, making it a trusted solution for continuous monitoring and safety-critical applications.
The Dx50 offers a wide range of variants with measuring ranges up to 10 m or 20 m on objects, extending to 50 m when using a reflector. The sensor is built for operation in environments with remarkable ambient temperature ranges, ensuring performance under extreme conditions. It supports stable and gap-free scanning, delivering reliable measurement results regardless of environmental interference. The technology ensures consistent accuracy across dynamic processes such as vertical positioning or diameter monitoring. All technical specifications are designed to meet industrial demands without compromising precision or durability.
The Dx50 is available with switching, analog, or serial interfaces, enabling seamless integration into a wide variety of application environments. This flexibility allows engineers to select the most suitable interface for their specific control system or automation setup. Whether used in simple on/off detection or complex feedback loops, the sensor provides reliable signal output and compatibility with existing machine architectures. Its straightforward configuration supports rapid deployment across different industrial systems, reducing integration time and enhancing overall operational efficiency.
The Dx50 is engineered to operate reliably in harsh environments characterized by dust, moisture, or temperature fluctuations. It maintains consistent performance within its remarkable ambient temperature range, making it suitable for use in warehouses, overhead conveyors, and coil winding processes. The sensor’s robust design ensures durability and long-term stability even when exposed to challenging conditions. This makes the Dx50 ideal for continuous operation in industrial settings where environmental variability is common.
The Dx50 is widely used in applications requiring precise distance measurement, including vertical positioning of cranes in warehouses and vertical positioning in electrical overhead conveyors. It also supports diameter monitoring during coil winding processes, ensuring consistent product quality. These use cases benefit from the sensor’s stable scanning performance and reliability in dirty or humid environments. The Dx50’s ability to deliver gap-free measurements enhances process control and safety. SICK LifeTime Services further support these applications by offering on-site assistance during design, commissioning, and operation—along with maintenance, performance checks, upgrades, and retrofits—to extend equipment life and ensure continuous plant availability.
| Specification | Value |
|---|---|
| ambient temperature | range |
| Measurement range | 10 m or 20 m on objects or even up to 50 m when measuring on reflector |
| Interface | switching, analog or serial |
| Dx50 Versatile optical distance sensors up to | 50 m |
