Product Overview

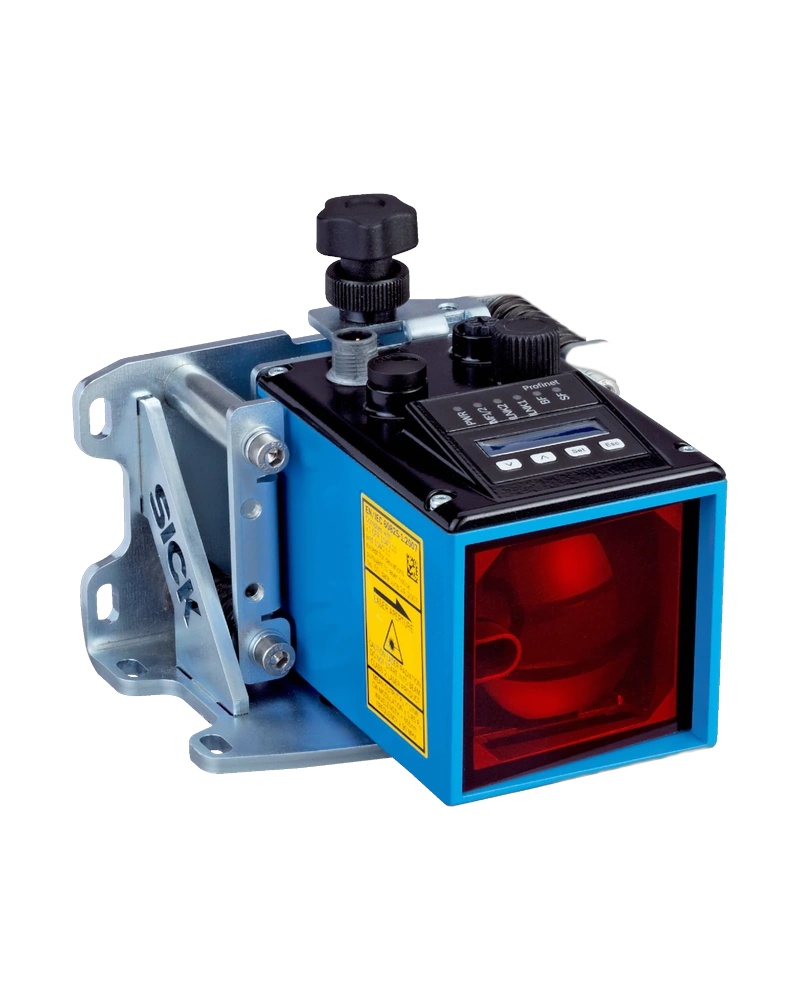

The Dx100 laser distance sensor family delivers exceptional precision and performance for demanding positioning tasks in industrial automation. Designed with leading-edge phase-shift measurement technology, the Dx100 ensures high accuracy and repeatability, making it ideal for applications requiring reliable feedback in dynamic environments. Its innovative 3-axis bracket represents the smallest housing in its sensor class, offering compact design and reduced footprint. The intelligent quick lock system with fast connectors enables rapid mounting and device exchange, improving operational efficiency and lowering total cost of ownership. With optimized integration into closed control loops, the Dx100 is engineered to work seamlessly with drive manufacturers, ensuring stable performance across a range of motion control systems.

Key Features and Technology

The Dx100 leverages phase-shift measurement technology for superior distance accuracy and stability. Its innovative 3-axis bracket provides compactness while maintaining robust mechanical design, making it the smallest housing in its class. The intelligent quick lock system with fast connectors enables simple installation and rapid device replacement—ideal for maintenance-intensive environments. The sensor’s performance has been jointly optimized with drive manufacturers to ensure perfect integration into closed-loop control systems. Additionally, variants feature spectral filter and frequency switching capabilities, eliminating the need for minimum distance during installation of multiple sensors or when placing DL100 devices adjacent to ISD400 Pro optical data transmission units.

Technical Characteristics

The Dx100 family offers high-speed performance with minimal signal processing delay, making it suitable for dynamic control circuits. The sensor is much smaller than comparable distance sensors in its performance class and supports PROFINET netload class III, ensuring reliable operation even under high network utilization. With SSI and PROFINET interfaces united in a single device (e.g., DL100-2xxx2213), the Dx100 provides flexible communication options for diverse automation systems. The combination of both interfaces enhances application flexibility and enables seamless integration into existing industrial networks without requiring additional hardware or complex cabling.

Configuration and Integration

The Dx100 supports dual interface configuration: SSI and PROFINET, available in models such as DL100-2xxx2212 and DL100-2xxx2213. This unified approach offers extensive application possibilities across different automation environments. The innovative mounting system allows the sensor to be clipped directly into tailor-made plates, simplifying installation and enabling quick device exchange. Frequency switching and spectral filter variants ensure compatibility when multiple DL100 sensors are installed in close proximity or used alongside ISD400 Pro for optical data transmission. This configuration eliminates minimum distance requirements during setup, improving scalability and ease of deployment in complex industrial layouts.

Operating Environment

The Dx100 is designed to operate reliably in standard industrial environments with a wide range of temperature and humidity conditions. It features robust construction suitable for continuous operation in demanding settings. The sensor’s performance remains stable under high network loads due to PROFINET netload class III certification, ensuring consistent data transmission even during peak system activity. Its compact housing and intelligent mounting system contribute to durability and long-term reliability. SICK LifeTime Services further support operational continuity by enhancing machine productivity, ensuring safety, and protecting investment goods throughout the product lifecycle.

Industrial Applications

The Dx100 is ideal for precise positioning tasks in automated systems such as storage and retrieval units, automated parking systems, cranes, and other moving mechanical components. Its high accuracy, repeatability, and fast response times are critical when minimizing downtime and ensuring smooth operation. The sensor’s compact size and quick mounting system make it well-suited for integration into space-constrained environments. With support for both SSI and PROFINET interfaces, the Dx100 can be deployed across a wide range of automation systems without requiring extensive reconfiguration. Its compatibility with ISD400 Pro enables reliable optical data transmission in high-speed applications where signal integrity is essential.
