IFM incremental encoders with display provide precise feedback for monitoring the position, speed, and direction of rotating shafts. These intelligent encoders combine incremental pulse generation with an integrated digital display for convenient on-site process monitoring. Programmable resolution, HTL/TTL signal selection, and IO-Link communication provide flexible integration into automation systems. PerformanceLine versions can also operate as encoders, counters, or speed and direction monitors. Solid-shaft and hollow-shaft designs support a wide range of industrial machine configurations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
IFM incremental encoders with display are designed for accurate measurement of rotating movement in industrial machinery. The magnetic sensing principle provides robust operation with resistance to shock and vibration. Resolution can be configured over a wide range, with PerformanceLine devices supporting up to 10,000 pulses per revolution. Integrated pulse evaluation reduces processing requirements for the connected controller. These capabilities make the encoders suitable for demanding motion-control applications.
The integrated two-colour display provides clear visibility of process values directly at the encoder. Red and green indication can be used to identify operating conditions and limit violations. Display values can be electronically rotated by 180° to suit different installation orientations. Pushbuttons and an intuitive menu allow convenient parameter adjustment directly on the device. This improves commissioning, troubleshooting, and machine-service efficiency.
These encoders support programmable resolution and configurable signal characteristics for flexible machine integration. Depending on the version, HTL or TTL signal levels can be selected for compatibility with different control architectures. IO-Link enables parameterisation, diagnostic information, and process data communication between the encoder and automation system. PerformanceLine models also provide integrated functions for counter and speed monitoring. This reduces variant requirements while supporting modern Industry 4.0 architectures.

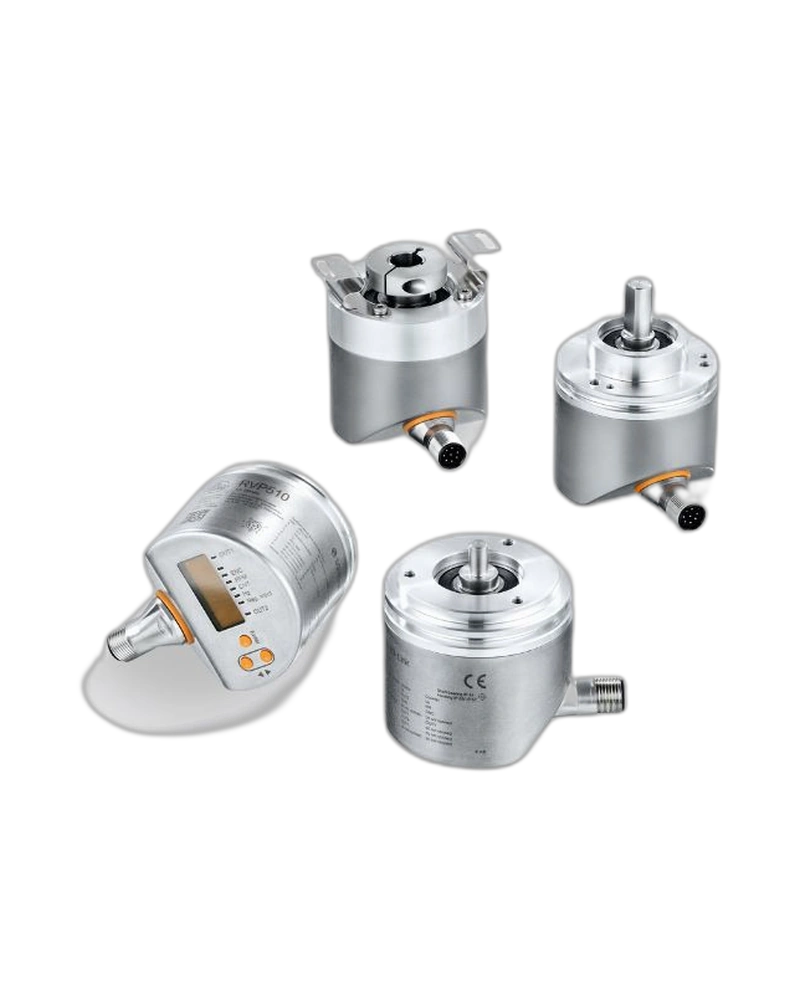

The product family includes hollow-shaft and solid-shaft configurations for different machine layouts. Available shaft options include common industrial diameters such as 6 mm, 10 mm, 12 mm, and 15.875 mm depending on the model. Different flange arrangements allow installation on a variety of motors, drives, conveyors, and rotating assemblies. Rotatable M12 connectors can support radial or axial cable routing on applicable versions. Robust construction and high ingress protection make the encoders suitable for industrial environments.
Programmable resolution up to 10,000 pulses per revolution
Integrated two-colour red/green digital display
IO-Link communication for parameterisation and diagnostics
Selectable HTL / TTL output on applicable PerformanceLine models
Integrated encoder, counter, and speed-monitoring functions
Speed and direction-of-rotation monitoring
Magnetic sensing technology
Solid-shaft and hollow-shaft configurations
Rotatable M12 connector on applicable models
High resistance to shock and vibration
Conveyor and material-handling systems
Packaging and filling machinery
Printing and paper-processing machines
Automotive production equipment
Woodworking machinery
Rotary positioning and motion-control systems
Speed and direction monitoring
Machine counters and production monitoring
The integrated display allows operators and maintenance personnel to view process information without relying exclusively on the PLC or external HMI. This can simplify commissioning and reduce troubleshooting time during machine operation. Configurable display functions allow the encoder to present relevant position, counter, or speed information. Visual limit indication helps identify abnormal operating conditions quickly. The result is easier machine servicing and improved operational visibility.
IFM offers these encoders for applications requiring precise incremental motion feedback together with local process indication. Their programmable functions help reduce the need to stock multiple encoder variants for different machine requirements. IO-Link provides access to configuration and diagnostic information for connected automation systems. The combination of magnetic sensing, programmable outputs, and display functionality supports flexible machine design. These characteristics make the range suitable for modern industrial motion-control applications.
| Specification | Details |
|---|---|
| Product Type | Incremental encoder with display |
| Sensing Principle | Magnetic |
| Measurement Type | Incremental rotary measurement |
| Display | Integrated digital display |
| Display Colour | Two-colour red/green |
| Display Function | Process-value and status indication |
| Display Orientation | Electronically rotatable 180° on applicable models |
| Resolution | Programmable, up to 10,000 pulses/revolution |
| Signal Type | HTL / TTL on applicable PerformanceLine models |
| Communication | IO-Link on PerformanceLine models |
| Encoder Function | Yes |
| Counter Function | Yes |
| Speed Monitoring | Yes |
| Direction Monitoring | Yes |
| Shaft Designs | Solid shaft / hollow shaft |
| Solid Shaft Options | 6 mm / 10 mm, depending on model |
| Hollow Shaft Options | 9.525 mm / 12 mm / 15.875 mm, depending on model |
| Connector | M12 on applicable models |
| Connector Orientation | Radial or axial on applicable models |
| Housing Diameter | Typically 58 mm for PerformanceLine |
| Operating Voltage | 4.75...30 V DC on PerformanceLine models |
| Technology | Programmable intelligent incremental encoder |
| Parameterisation | Pushbuttons and IO-Link |
| Process Data | Position, counter, speed and related values |
| Diagnostic Data | Available via IO-Link on applicable models |
| Shock Resistance | Designed for industrial shock resistance |
| Vibration Resistance | Designed for industrial vibration resistance |
| Protection | IP65/IP67 depending on model |
| Typical Industries | Material handling, packaging, automotive, printing, woodworking |
| Installation | Motor, drive, conveyor and rotating-machine assemblies |
