Explore performance details, construction highlights, applications, and technical information in one clear overview.

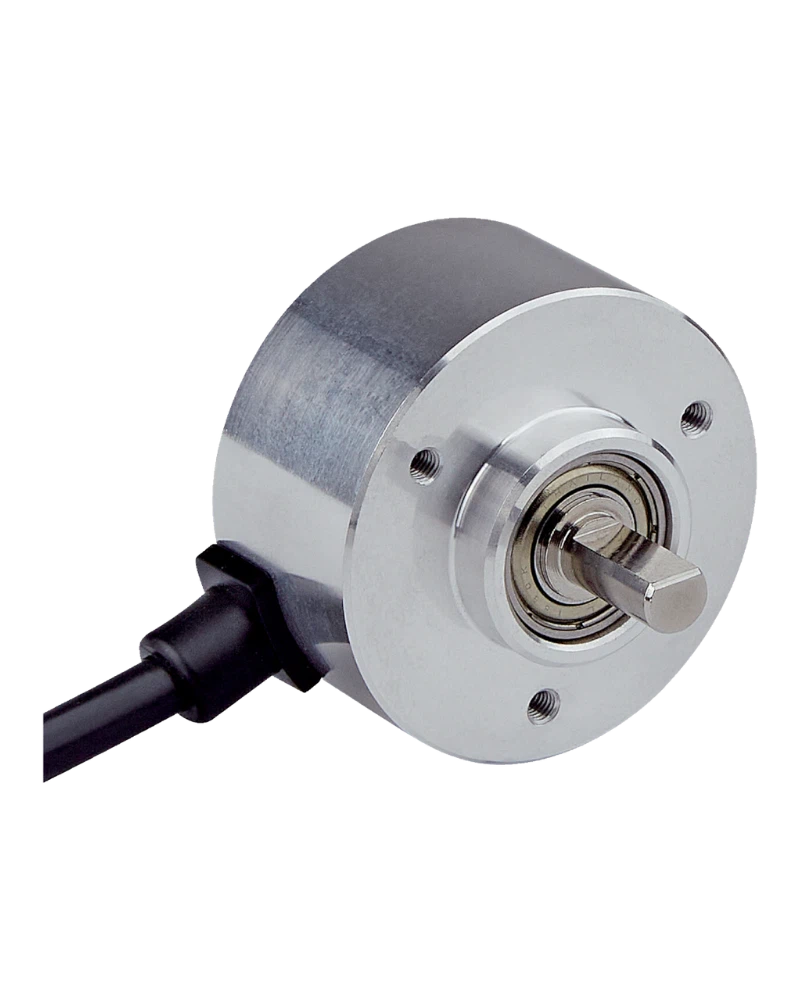

The SICK DLS40 is a compact and slim incremental encoder designed for reliable speed and position measurement in demanding industrial environments. Its integrated flange housing enables a low-cost, space-efficient design, making it ideal for installations in tight or constrained spaces. The DLS40 delivers versatile performance with proven reliability across a wide range of applications. Whether used in packaging systems or automated guided vehicles (AGVs), this encoder provides accurate feedback without compromising on cost-efficiency. Its robust construction and electromagnetic interference resistance ensure consistent operation even under challenging conditions, offering an economical yet powerful solution for rotation monitoring where precision and durability are essential.
The DLS40 leverages a versatile, powerful, and universally applicable design to meet diverse industrial needs. It supports multiple output signal types including 4.5 V to 5.5 V TTL RS 422, 10 V to 27 V HTL Push Pull, and 10 V to 27 V Open Collector signals. This flexibility allows seamless integration with a wide range of control systems and sensors. The encoder’s slim housing design combines compactness with resilience, ensuring ease of installation while maintaining high performance. Its inherent resistance to electromagnetic interference ensures stable signal transmission in noisy environments. With proven reliability and broad compatibility, the DLS40 delivers consistent results across various operational conditions without sacrificing functionality or durability.
The DLS40 incremental encoder features a slim housing that integrates directly into a flange for simplified mounting. It supports both solid shafts and blind hollow shafts, offering adaptability to different mechanical setups. The permissible radial shaft loading is 40 N, while the axial load capacity reaches 20 N—providing sufficient strength for many dynamic applications. Despite its compact form factor, the encoder maintains excellent protection against electromagnetic interference, ensuring signal integrity in electrically noisy environments. These technical attributes combine to deliver a reliable and durable solution that performs consistently under real-world operating conditions.
The DLS40 offers a range of mechanical and electrical interfaces, enabling flexible integration into various systems. Available with solid or blind hollow shafts, it accommodates different drive mechanisms and mounting requirements. The encoder supports multiple output signals: 4.5 V to 5.5 V TTL RS 422; 10 V to 27 V HTL Push Pull; and 10 V to 27 V Open Collector. This variety ensures compatibility with a broad spectrum of industrial controllers, PLCs, and measurement systems. The integrated flange design simplifies installation in tight spaces, reducing setup time and complexity. With no need for additional enclosures or signal conditioning, the DLS40 provides straightforward integration while maintaining high performance and signal reliability.
The DLS40 is designed to operate reliably in demanding industrial environments due to its robust housing and electromagnetic interference resistance. The compact design does not compromise protection against external electrical noise, making it suitable for use in high-noise or electrically active settings. While specific temperature or humidity ranges are not provided in the source material, the encoder’s construction ensures stable performance under typical industrial conditions. Its resilience to electromagnetic interference allows consistent operation even when exposed to strong magnetic fields or switching transients. This makes the DLS40 a dependable choice for applications where signal integrity and long-term reliability are critical.
The SICK DLS40 is widely used in industrial automation tasks requiring precise speed and position feedback. It is particularly well-suited for packing machines, where accurate rotational monitoring ensures consistent product output. Additionally, it finds application in automated guided vehicle (AGV) systems, where reliable encoder signals support smooth navigation and motion control. Its versatility, combined with multiple output options, allows it to be deployed across various automation processes without requiring extensive customization. The DLS40’s compact size and ease of installation make it ideal for retrofitting or integrating into existing machinery in tight spaces, offering a cost-effective solution that maintains performance standards.
| Specification | Value |
|---|---|
| https | //www.sick.com/gb/en/catalog/products/motion-control-sensors/incremental-encoders/dls40/c/g547646 |
