Product Overview

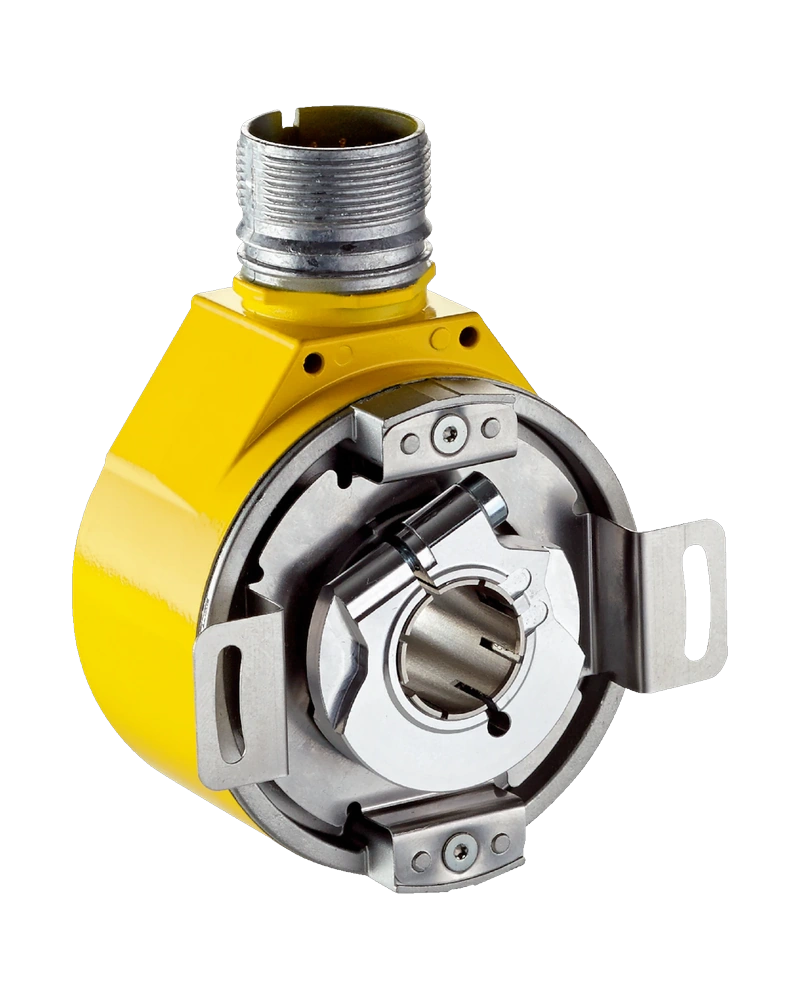

The DFS60S Pro is a high-precision incremental encoder designed for demanding industrial automation applications requiring reliable position feedback. With a safety-related accuracy of ±0.09° and a mission time of 20 years according to EN ISO 13849, it delivers long-term operational reliability in safety-critical environments. The encoder features a robust construction with an aluminum die-cast housing and stainless steel shaft, ensuring durability under continuous operation. Its compact design, featuring an 8 mm shaft with feather key groove, enables precise mechanical integration into rotating systems. With a universal 8-wire cable connection that allows radial or axial laying without kinks, the DFS60S Pro offers flexible installation options. Designed for high-speed performance and environmental resilience, it supports operation across extreme temperature ranges and is ideal for applications where position accuracy and system safety are paramount.

Key Features and Technology

The DFS60S Pro utilizes a Sin/Cos incremental communication interface to provide precise position feedback with an output frequency up to 153.6 kHz, ensuring high-speed data transmission without signal degradation. The encoder is built for safety-critical use with a mission time of 20 years and meets protection class III (DIN EN 61140), offering enhanced electrical safety. It includes reverse polarity protection and short-circuit protection to outputs, safeguarding against common electrical faults. The design incorporates self-heating considerations—approximately 3.0 K per 1,000 rpm—ensuring accurate performance under maximum operating speed and temperature conditions. With a dynamic permissible movement of ±0.05 mm (radial) and ±0.1 mm (axial), the encoder maintains precision even during rapid motion. The Sin/Cos interface ensures reliable signal integrity over long distances, while the universal cable connection simplifies integration into existing mechanical systems.

Technical Characteristics

The DFS60S Pro delivers a safety-related accuracy of ±0.09° and operates within a supply voltage range of 4.5 to 32 V, accommodating various power conditions. The shaft diameter is 8 mm with a feather key groove for secure mechanical alignment. Housing and flange materials are aluminum die cast and die-cast zinc respectively, providing structural strength and corrosion resistance. Permissible static movement is ±0.3 mm (radial) and ±0.5 mm (axial), while dynamic movement limits are ±0.05 mm (radial) and ±0.1 mm (axial). The enclosure rating is IP65 (IEC 60529), offering protection against dust and water jets. Permissible relative humidity is up to 90% with no condensation allowed. Operating temperature range spans from –30 °C to +85 °C, with performance validated at an operating temperature of 95 °C under diagnostic coverage of 99%. These specifications ensure consistent performance in harsh industrial environments.

Configuration and Integration

The DFS60S Pro is integrated via a standard incremental Sin/Cos interface with a universal 8-wire cable, positioned to allow radial or axial cable routing without kinks. This design supports flexible installation in complex mechanical setups. The connection is based on an encoder with male connector, ensuring compatibility with common drive systems. Short-circuit protection applies for up to 30 seconds to another channel or ground; when supply voltage (U S) is ≤12 V, short-circuits to U S are permitted for the same duration. For optimal performance, external drive systems must achieve a diagnostic coverage of at least 99%. The encoder’s design accounts for self-heating effects—approximately 3.0 K per 1,000 rpm—requiring proper thermal management in high-speed applications. Integration is simplified by standard cable layout and proven compatibility with typical industrial drives.

Operating Environment

The DFS60S Pro is engineered for operation across a wide range of environmental conditions. It functions reliably within an ambient temperature range of –30 °C to +85 °C, making it suitable for both cold storage and high-temperature industrial processes. The enclosure provides IP65 protection against dust ingress and water jets, ensuring durability in outdoor or wet environments. Relative humidity must not exceed 90%, with condensation strictly prohibited to prevent internal damage. The encoder is designed to operate under a maximum ambient temperature of 95 °C, which is critical for maintaining diagnostic coverage at 99%. Self-heating due to operation—approximately 3.0 K per 1,000 rpm—must be considered when evaluating thermal performance in high-speed applications. These environmental limits ensure consistent and safe operation under real-world industrial conditions.

Industrial Applications

The DFS60S Pro is ideal for use in safety-related motion control systems such as robotic arms, CNC machines, and automated assembly lines where precise position feedback is essential. Its high accuracy and long mission time make it suitable for applications requiring sustained reliability over decades. The robust construction and environmental resilience support deployment in harsh conditions including high temperatures, humidity, and vibration. Applications include packaging machinery, material handling systems, and precision positioning equipment. The encoder’s compatibility with standard drive systems and its ability to operate at speeds up to 153.6 kHz enables integration into fast-paced production environments. Its safety-related accuracy and protection class III ensure compliance with industrial safety standards in critical automation processes.
