Product Overview

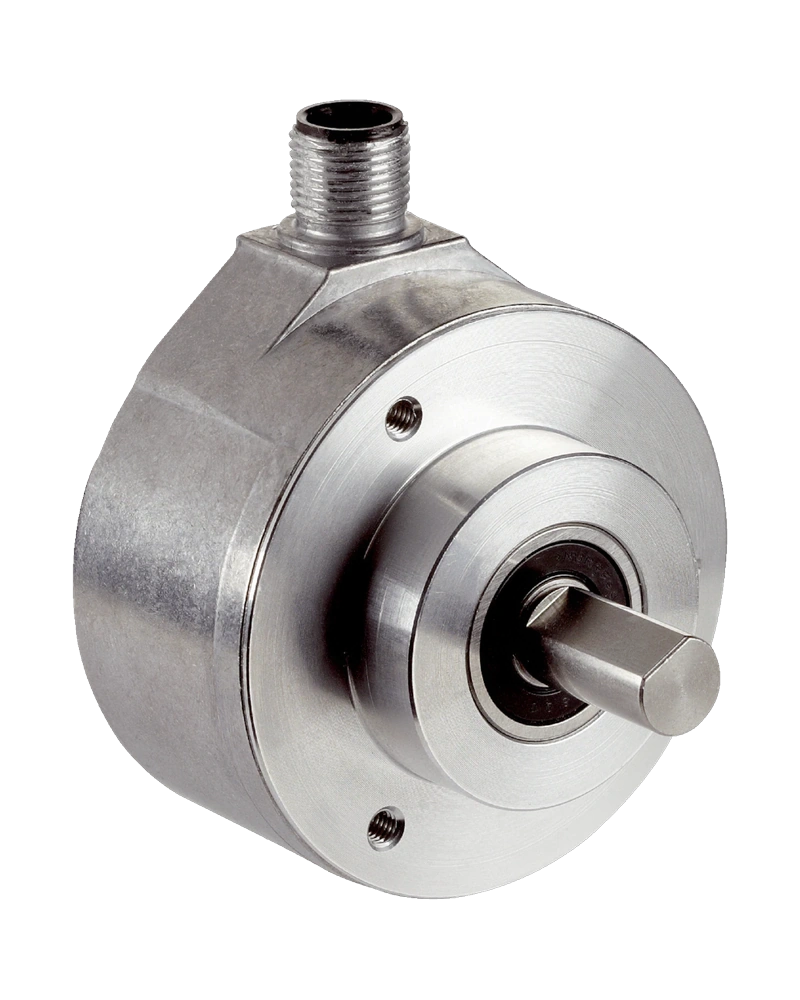

The DFS60 is a high-resolution, programmable incremental encoder designed for demanding industrial environments. With a 60 mm diameter, it offers exceptional precision and flexibility in applications requiring reliable position feedback under harsh conditions. Built with rugged mechanical design and advanced protection features, the DFS60 delivers consistent performance across extreme temperatures and challenging ambient conditions. Its modular construction supports a wide range of configurations, enabling seamless integration into diverse automation systems. Whether used in motion control or process monitoring, the DFS60 provides accurate, repeatable position data through programmable electrical outputs. Available with both aluminum and stainless steel housings, it combines durability with adaptability to meet strict industrial requirements.

Key Features and Technology

The DFS60 offers extensive user-programmable settings including resolution, counting direction, and zero pulse width—enabling precise customization for specific application needs. This flexibility ensures optimal performance across a variety of motion control scenarios. The encoder supports both the compact PGT-10-Pro hand-held programming device and the PGT-08-S PC-based tool for configuration. Its programmable output signals allow users to tailor pulse counts per revolution, signal levels, and timing parameters directly in the field or via software. This level of customization enhances compatibility with different drive systems and control logic while maintaining high accuracy and reliability.

Technical Characteristics

The DFS60 incremental encoder features a 60 mm diameter and supports programmable resolution, counting direction, and zero pulse width settings. It provides a range of electrical output options that can be individually configured by the user. The encoder is available in both aluminum and stainless steel housings, offering durability and corrosion resistance depending on application needs. With a wide operating temperature range from –40 °C to +100 °C, it maintains performance across extreme environments. The IP65 enclosure rating ensures protection against dust and humidity, while the IP67-rated version (DFS60 Inox) provides even greater resistance in wet or corrosive conditions.

Configuration and Integration

The DFS60 offers mechanical and electrical flexibility through various connection types. A plug-in cable connection allows for cables of different lengths and plug connectors, enabling easy adaptation to diverse installation layouts. Different collets allow the shaft diameter to be adjusted, with plastic inserts available for insulated shaft connections. This ensures compatibility with a wide range of mechanical systems and mounting configurations. The encoder can be programmed using either the PGT-10-Pro hand-held device or the PGT-08-S PC-based tool, providing both field-level and remote configuration options. This flexibility supports integration into complex automation environments where precise positioning and signal reliability are critical.

Operating Environment

The DFS60 is engineered for operation in harsh ambient conditions with a temperature range from –40 °C to +100 °C. It features an IP65 enclosure rating, providing protection against dust and humidity, ensuring reliable performance in dirty or humid environments. The IP67-rated version (DFS60 Inox) offers enhanced protection, making it suitable for immersion in water up to 1 meter for 30 minutes. Its rugged mechanical design, combined with wide temperature tolerance and robust ball bearings, ensures long-term reliability even under vibration or shock. This makes the DFS60 ideal for use in demanding industrial settings such as manufacturing lines, material handling systems, or autonomous vehicles where environmental exposure is significant.

Industrial Applications

The DFS60 incremental encoder is ideal for applications requiring high precision and durability in challenging environments. It is commonly used in motion control systems, robotic arms, and automated assembly lines where reliable position feedback is essential. Its rugged design and wide operating temperature range make it suitable for use in extreme climates or outdoor installations. The encoder’s programmable outputs support integration into a variety of drive and control systems. Notably, the DFS60 has been deployed in autonomous vehicles from Asseco CEIT, demonstrating its capability in intelligent sensor-based systems. Its flexibility in connection types and configuration options ensures it can be adapted to meet specific industrial requirements across sectors including automotive, packaging, and material handling.”}
