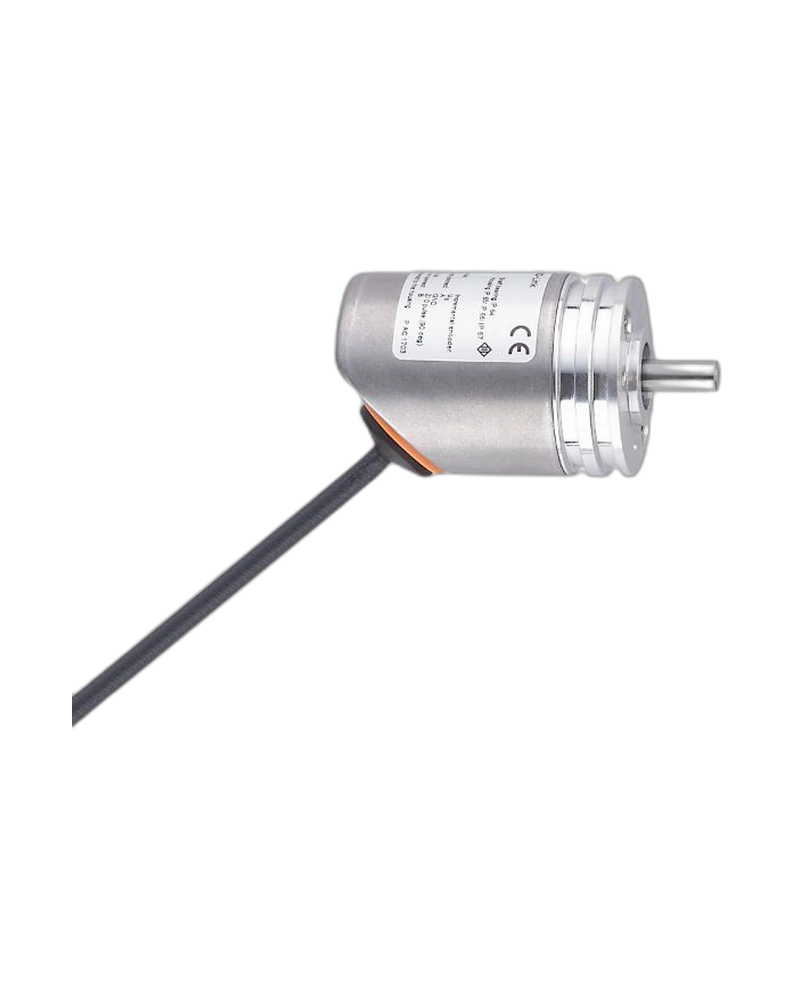

The RB3510 is an incremental encoder with a solid shaft for accurate rotary speed and position measurement. It uses magnetic detection and provides configurable resolution from 1 to 10,000 pulses. The encoder operates from 4.75 to 30 V DC and supports HTL/TTL outputs. Its 6 mm solid shaft provides a standard mechanical interface for rotary equipment. IO-Link enables convenient parameterisation and configuration.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The RB3510 produces a defined pulse sequence corresponding to shaft rotation. Resolution can be configured to suit the required measurement precision. A and B output signals allow direction detection. Magnetic sensing provides robust operation under mechanical vibration. This makes the encoder suitable for continuous rotary feedback.
The solid shaft provides a conventional mechanical interface for rotary machinery. It supports coupling to motors, drives and machine axes. The compact cylindrical construction simplifies installation. A fixing arrangement secures the encoder to the machine. Proper shaft alignment helps maintain reliable measurement.
IO-Link provides digital access to encoder settings. Resolution and rotation direction can be adjusted electronically. HTL and TTL operating modes can be selected. Diagnostic information can support commissioning and maintenance. This allows flexible integration into modern automation systems.
Solid shaft design
Magnetic detection
Configurable resolution
HTL/TTL output
IO-Link communication
Industrial rotary feedback
Direction detection
High-speed pulse output
Compact construction
Machine automation compatibility
Motor feedback
Speed measurement
Machine-axis monitoring
Conveyors
Packaging machinery
Rotary positioning
Material handling
Industrial automation
The RB3510 is designed for direct integration into rotary machinery. Its solid shaft supports conventional mechanical coupling. Digital configuration reduces manual setup requirements. The encoder can interface with compatible PLC and motion-control systems. Its industrial design supports continuous machine operation.
Magnetic sensing avoids dependence on optical measurement surfaces. This helps the encoder tolerate industrial vibration and mechanical disturbances. Short-circuit protection improves electrical robustness. IO-Link diagnostics support maintenance activities. The encoder is suitable for demanding production environments.
| Specification | Value |
|---|---|
| Model | RB3510 |
| Encoder type | Incremental |
| Detection system | Magnetic |
| Shaft design | Solid shaft |
| Shaft diameter | 6 mm |
| Resolution | 1–10,000 |
| Factory resolution | 1,024 |
| Communication | IO-Link |
| Operating voltage | 4.75–30 V DC |
| Current consumption | <150 mA |
| Protection class | III |
| Reverse polarity | Yes |
| Power-on delay | 0.5 s |
| Max. electrical speed | 12,000 rpm |
| Output | HTL/TTL |
| Switching frequency | 1 MHz |
| Factory output | HTL, 50 mA |
| Short-circuit protection | Yes |
| Phase difference A/B | 90° |
| Accuracy | 0.1° |
| Shaft material | Metal |
| Housing | Cylindrical |
| Mounting | Solid shaft |
| Interface | IO-Link |
| Output signals | A/B |
| Direction detection | Yes |
| Parameterisation | Resolution/direction |
| Application | Rotary measurement |
| Product line | Incremental encoder |
| Manufacturer | IFM |
