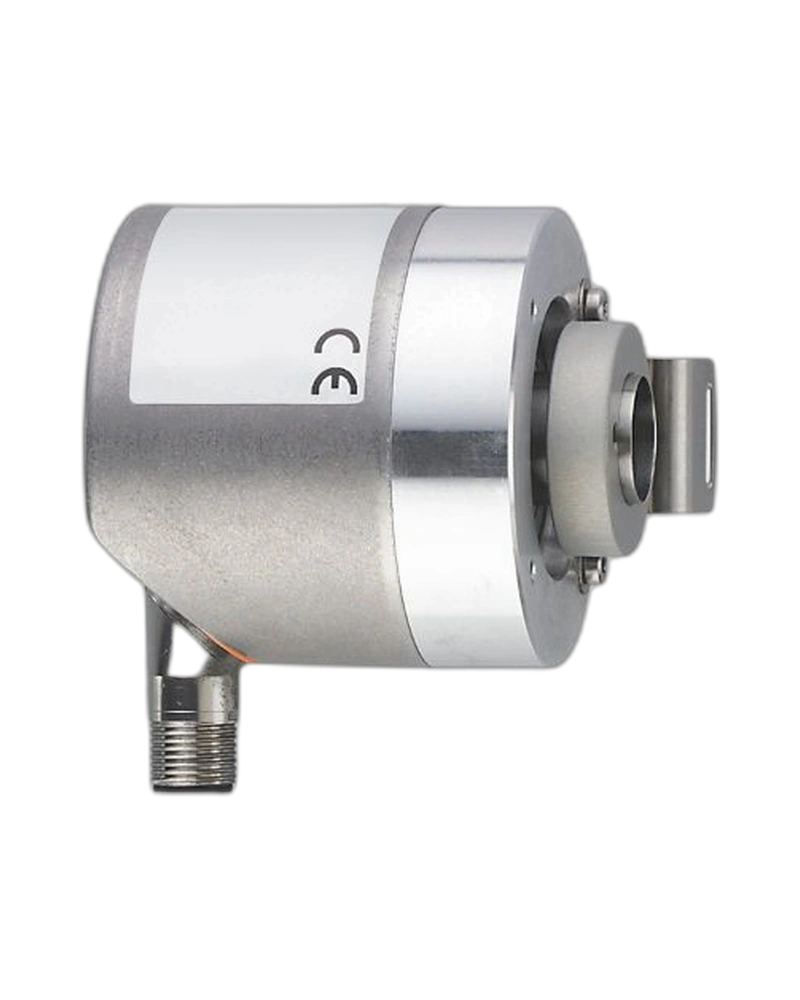

The RO3104 is an incremental encoder with a hollow shaft designed for precise rotary measurement. It provides configurable resolution from 1 to 10,000 with a factory setting of 1,024. The encoder operates from 4.75 to 30 V DC and provides HTL/TTL output capability. Its 15.875 mm hollow shaft suits direct machine-shaft installation. IO-Link provides digital parameterisation and diagnostic functionality.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The RO3104 uses magnetic sensing to generate a defined incremental pulse sequence. Its A and B signals have a 90° phase difference for direction detection. The encoder supports a switching frequency of up to 1 MHz. Its maximum electrical speed is 12,000 rpm. These characteristics make it suitable for fast rotary feedback applications.
The encoder uses a 15.875 mm hollow shaft open on one side. This shaft size corresponds to a 5/8-inch mounting format. Direct mounting reduces mechanical coupling components. The housing has a diameter of 58.5 mm. The overall length is 83 mm.
IO-Link enables electronic configuration of the encoder. Resolution, rotation direction, HTL, and TTL parameters can be configured. The encoder supports IO-Link 1.1 with COM2 transmission at 38.4 kBaud. SIO mode is supported. Digital parameterisation simplifies machine commissioning.
15.875 mm hollow shaft
5/8-inch shaft format
1–10,000 resolution
1,024 factory resolution
HTL/TTL output
IO-Link 1.1
1 MHz switching frequency
12,000 rpm
Magnetic detection
M12 connector
Motor feedback
Speed measurement
Conveyor systems
Rotary positioning
Machine axes
Packaging machinery
Industrial drives
Automation systems
The encoder provides reverse-polarity protection. Short-circuit protection is also integrated. Its operating temperature range extends from -40 to 85°C. The design is intended for continuous industrial operation. Proper shaft alignment helps maintain measurement performance.
The RO3104 can provide HTL or TTL output according to system requirements. IO-Link adds parameterisation capability. This combination provides flexibility during machine design. The M12 connector supports standard industrial wiring. The encoder can be integrated into PLC and motion-control architectures.
| Specification | Value |
|---|---|
| Model | RO3104 |
| Encoder type | Incremental |
| Detection system | Magnetic |
| Shaft design | Hollow shaft |
| Shaft diameter | 15.875 mm |
| Resolution | 1–10,000 |
| Factory resolution | 1,024 |
| Communication | IO-Link |
| Operating voltage | 4.75–30 V DC |
| Current consumption | <150 mA |
| Protection class | III |
| Reverse polarity | Yes |
| Power-on delay | 0.5 s |
| Max. electrical speed | 12,000 rpm |
| Output | HTL/TTL |
| Switching frequency | 1 MHz |
| Factory output | HTL, 50 mA |
| Short-circuit protection | Yes |
| Phase difference | 90° |
| Accuracy | 0.1° |
| Housing diameter | 58.5 mm |
| Overall length | 83 mm |
| Shaft opening | One side |
| Connector | M12 |
| Mounting | Hollow shaft |
| Housing | Industrial metal |
| Position signal | Incremental |
| Parameterisation | IO-Link |
| Output adjustment | HTL/TTL |
| Manufacturer | IFM |
