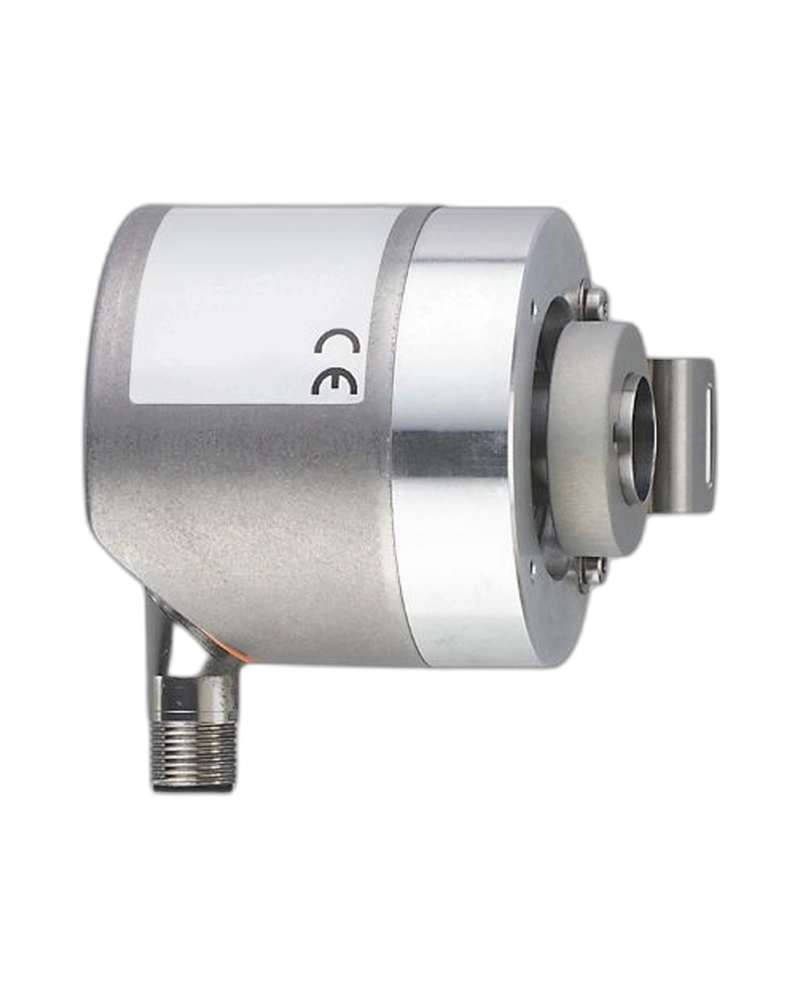

The ROP524 is a performance-line incremental encoder with a hollow shaft and integrated display. It provides configurable encoder resolution and an integrated speed-monitoring function. IO-Link communication enables parameterisation, process data and diagnostic functions. The 15.875 mm hollow shaft supports direct mounting on compatible rotating shafts. Its robust construction and IP65/IP67 protection make it suitable for demanding industrial motion applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The ROP524 features a 10-segment red/green display with four programmable digits. The display provides local information for commissioning and machine monitoring. Yellow and green LEDs provide additional operating indications. The integrated display reduces the need for a separate local indicator. This makes the encoder easier to configure and monitor.
The encoder uses a hollow shaft for direct installation on rotating machine shafts. A stator coupling is supplied for mechanical installation. The fixing flange has a diameter of 58.5 mm. The M12 connector can be installed radially or axially. This supports flexible machine integration.
The ROP524 combines incremental measurement with speed-monitoring functionality. This allows the encoder to support both rotary feedback and machine-speed supervision. Parameterisation can be handled through IO-Link. Process information can be transmitted to the automation system. This can reduce the need for separate monitoring components.
Hollow shaft
Integrated 10-segment display
4-digit programmable display
Speed monitoring
IO-Link 1.1
M12 connector
Stator coupling supplied
Performance-line design
Incremental measurement
Industrial rotary feedback
Speed monitoring
Conveyor systems
Motor feedback
Rotary machines
Packaging equipment
Material handling
Machine-axis monitoring
Industrial automation
The integrated display provides immediate visual feedback. This helps operators during commissioning. IO-Link provides additional access to parameters and process data. The combination supports both local and remote diagnostics. This is useful for machines where rapid troubleshooting is important.
The ROP524 provides multiple connection functions through its M12 interface. Its hollow shaft reduces the need for additional coupling components. The stator coupling supports mechanical installation. The performance-line construction is intended for demanding machine environments. This makes the encoder suitable for high-duty automation systems.
| Specification | Value |
|---|---|
| Model | ROP524 |
| Encoder type | Incremental |
| Product line | Performance line |
| Shaft design | Hollow shaft |
| Shaft diameter | 15.875 mm |
| Communication | IO-Link |
| IO-Link revision | 1.1 |
| Transmission | COM2, 38.4 kBaud |
| DeviceID | 496 |
| SIO mode | Yes |
| Min. process cycle | 2.7 ms |
| Accuracy | 0.1° |
| Ambient temperature | -40 to 85°C |
| Relative humidity | 95% |
| Protection | IP65/IP67 |
| Shock resistance | 100 g |
| Vibration resistance | 20 g |
| MTTF | 218 years |
| Weight | 465.5 g |
| Housing diameter | 58.5 mm |
| Length | 69 mm |
| Housing | Stainless steel |
| Flange | Aluminium |
| Display window | PEI |
| Max. speed | 12,000 rpm |
| Max. starting torque | 0.02 Nm |
| Shaft material | Stainless steel |
| Max. axial misalignment | 0.5 mm |
| Interface | IO-Link |
| Display function | Speed monitoring |
