Product Overview

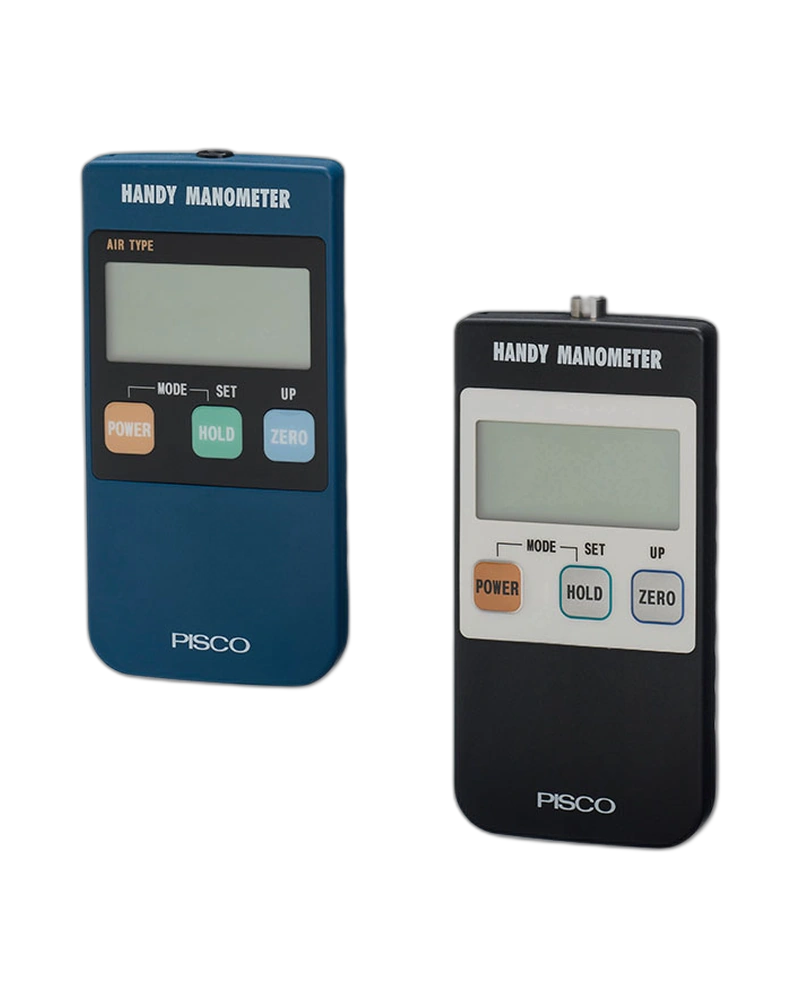

The Handy Manometer is a thin, lightweight pressure gauge designed for ease of use and portability in field applications. Its palm-top form factor ensures comfortable handling, making it ideal for technicians and engineers who need quick, accurate pressure readings on the go. Whether monitoring process conditions or performing routine checks, this manometer delivers reliable performance without adding bulk or weight to your toolkit.

Construction and Materials

Constructed from durable, precision-engineered materials, the Handy Manometer features a robust body with a lightweight design optimized for daily use. The gauge is built to withstand typical industrial environments while maintaining high readability and long-term accuracy. Its compact structure combines strength with functional simplicity, ensuring it remains reliable under normal operating conditions.

Configuration and Connections

The manometer offers three selectable pressure measurement modes: compound gauge pressure (range -101 to 100kPa or -100 to 1,000kPa), compound gauge pressure (low range) and absolute pressure (0 to 100kPa abs). Each configuration is clearly defined and suitable for different application needs. Connection is made via a standard M5×0.8 female thread pressure port, enabling compatibility with a wide range of fittings and systems.

Operating Characteristics

The Handy Manometer operates within specified pressure ranges: up to a maximum of 200kPa (1,500kPa for the high-range compound gauge), or 200kPa abs. It features an analog output function that provides voltage signals in precise ranges—-1.000V to 1.000V, -0.100V to 1.000V, or 0.000V to 1.000V depending on the selected mode. The analog output is powered externally at 5 ±0.5V DC with a current draw of 5mA or less and requires an external power supply—built-in batteries are not permitted.

Sizes and Options

Available in two sizes: φ4 mm and φ6 mm, allowing selection based on space constraints and mounting requirements. The gauge is offered in three pressure indication types—compound gauge (standard and low range), and absolute pressure—so users can choose the most appropriate model for their specific application. No color variants are listed.

Installation and Integration

The manometer integrates directly with external systems via its M5×0.8 female thread pressure port, enabling secure attachment to process lines or equipment. The analog output interface supports direct connection to data acquisition systems or control units that accept 5 ±0.5V DC signals with a current load of 5mA or less. External power supply is required for the analog output function; no built-in batteries are provided.
