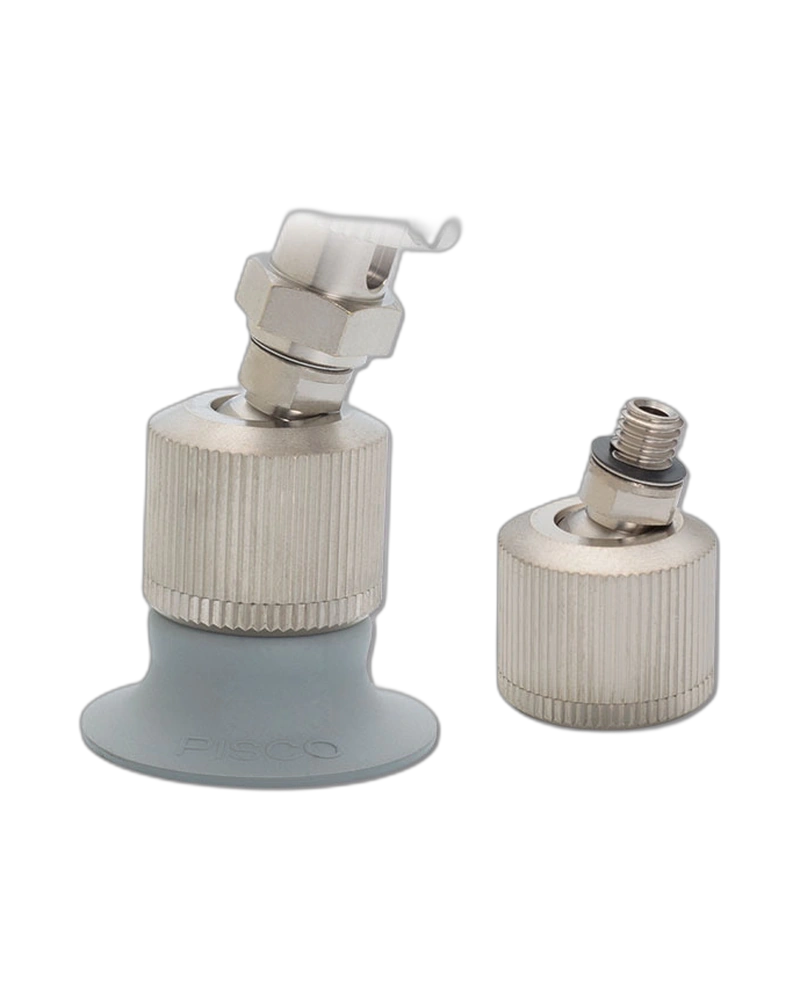

The Free Holder is a specialized mounting solution designed to prevent workpiece drop during handling when using multi-vacuum pad systems. It enables secure pickup of workpieces that are not in vertical alignment or have unfixed angles, ensuring stability and safety across a range of industrial automation applications.
Constructed from durable industrial materials, the Free Holder features a precision-machined body with an outer diameter of φ1.6 mm. Its design ensures compatibility only with PISCO brand vacuum pads and direct mounting filters, as specified in product documentation. Use outside these parameters may result in damage to the unit or compromised performance.
The Free Holder allows for adjustable vacuum pad angles by simply installing it between the vacuum pad and the holder. This configuration provides flexibility in positioning without altering the core suction mechanism, enabling effective workpiece pickup under non-standard orientations.
The product is rated for use with PISCO vacuum pads of specific diameters (ø10mm and ø15mm) within the sponge series, as structural limitations apply to holder size code '20'. The unit's operational integrity depends on correct installation orientation; after suction, the position may shift due to workpiece weight or transport dynamics such as acceleration or impact.
The Free Holder is available in a single configuration with a fixed outer diameter of φ1.6 mm and is specifically designed for use with PISCO vacuum pads of ø10mm and ø15mm (sponge series). No color variants are offered, and the product is not compatible with non-PISCO vacuum pads or any alternative mounting systems.
Installation requires adherence to specified tightening torques as detailed in the provided torque table. The holder must be secured using an appropriate tool aligned with the parallel cut on its periphery to ensure proper fit and prevent loosening during operation.
| Specification | Details |
|---|---|
| Weight | Pad size Ascending order Descending order Clear All |
| Vacuum Pad size | Vacuum Pad I. D.* |
| Without Vacuum Pad (Pad Holder only) | φ1.6 mm |
