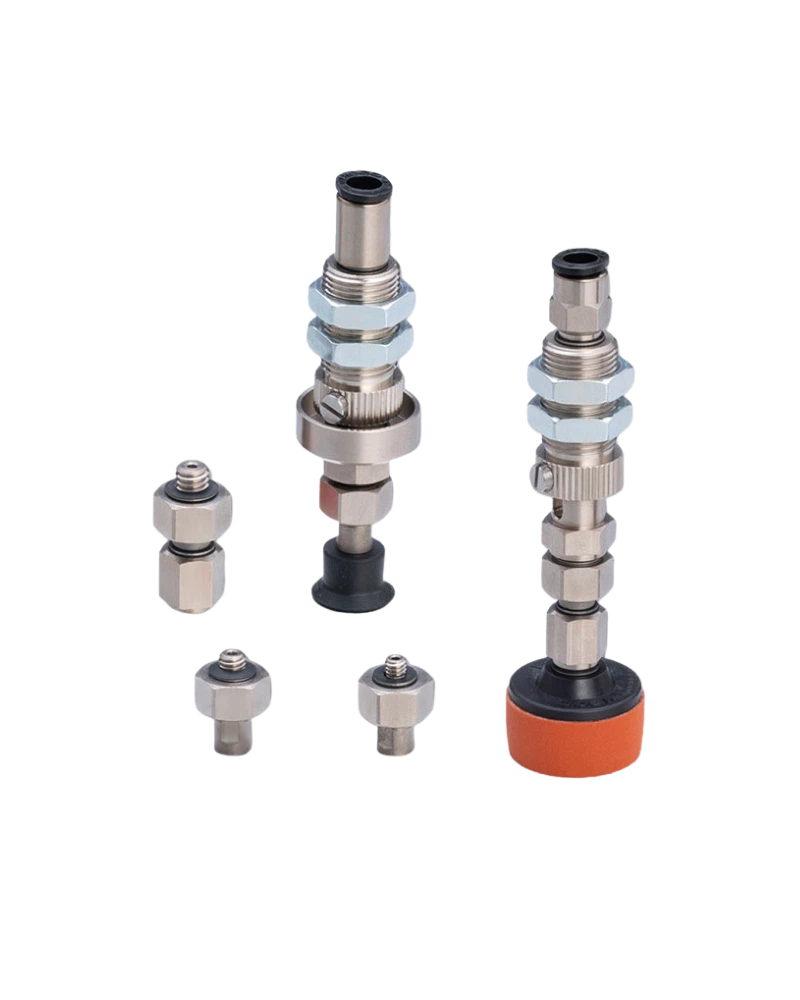

The Flexible Holder is a specialized component designed to ensure stable vacuum contact with workpieces that have inclined or curved surfaces. Its primary function is to prevent workpiece drop during multi-vacuum pad operations by adapting to surface geometry and maintaining consistent suction pressure, even when the workpiece is not flat.
Constructed from durable industrial materials, the Flexible Holder features a flexible body that allows for conformal contact with irregular surfaces. The design incorporates a spring mechanism that automatically resets the inclination of the suction surface after contact, ensuring reliable positioning and stable operation without manual adjustment.
The holder connects directly to a vacuum pad via a standardized interface. When used without an attached vacuum pad (Pad Holder only), the mounting diameter is φ1.6 mm, allowing for compatibility with various vacuum systems and configurations where direct attachment is required.
The Flexible Holder operates within a working vacuum range of 0 to -100 kPa using air as the fluid medium. It is designed to function reliably in temperature conditions ranging from 0°C to 60°C, ensuring stable performance under normal industrial operating environments without freezing risks.
Available in a single configuration with a standard vacuum pad size (I.D.*), the Flexible Holder is offered in one base design. The product does not offer variations in color or size options beyond the specified dimensions and mounting interface.
Installation requires alignment of the holder’s suction surface with the workpiece surface, ensuring contact occurs at the intended point. The spring-assisted reset mechanism allows for automatic repositioning after impact, enabling seamless integration into automated vacuum systems where dynamic surface contact is common.
| Specification | Details |
|---|---|
| Weight | Pad size Ascending order Descending order Clear All |
| Fluid medium | Air |
| Working vacuum range | 0 to -100kPa |
| Operating temp. range | 0 to 60℃ (No freezing) |
| Vacuum Pad size | Vacuum Pad I. D.* |
| Without Vacuum Pad (Pad Holder only) | φ1.6 mm |
