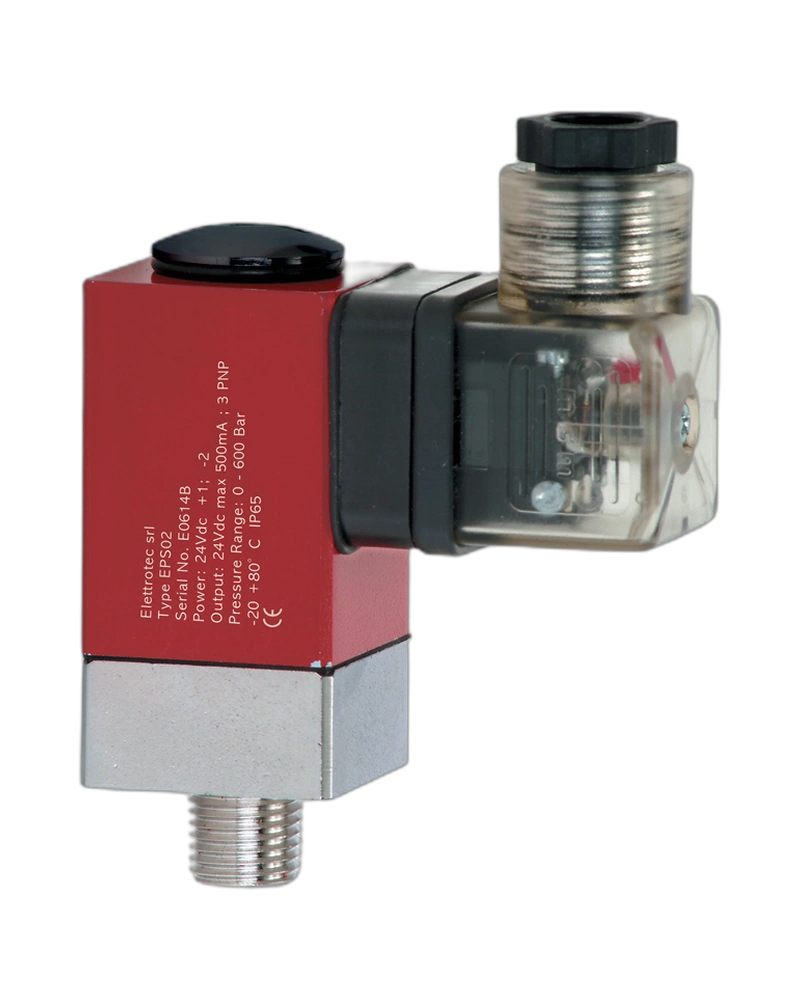

The ELETTROTEC EPS02B10APANR14 - EPS02 - Electronic pressure switch with ceramic sensor - EPS02 - Electronic pressure switch with ceramic sensor - EPS02 - Electronic pressure switch with ceramic sensor is an industrial Pressure Transmitter intended for professional equipment and system applications, with product-specific technical characteristics available for selection and integration. Key characteristics include Weight: 200 grams; Accuracy: ±0,5% fs a 25°C; Temperature: -20°C…+80°C.
The EPS02B10APANR14 - EPS02 - Electronic pressure switch with ceramic sensor - EPS02 - Electronic pressure switch with ceramic sensor is a Pressure Transmitter intended for professional industrial applications.
Selection should be based on the required operating conditions, configuration and application requirements. Exact technical values should be confirmed from current manufacturer documentation where necessary.
The EPS02B10APANR14 - EPS02 - Electronic pressure switch with ceramic sensor - EPS02 - Electronic pressure switch with ceramic sensor can be considered for industrial systems and equipment requiring a Pressure Transmitter. Final suitability should be evaluated against the complete system requirements.
Consider the required function, operating conditions, installation arrangement, connections and application-specific requirements before final selection.
The EPS02B10APANR14 - EPS02 - Electronic pressure switch with ceramic sensor - EPS02 - Electronic pressure switch with ceramic sensor is an industrial Pressure Transmitter. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Accuracy | ±0,5% fs a 25°C |
| temperature Range / Accuracy | -20°C…+80°C |
| Power supply | 24Vdc ±15% |
| Pressure range | 0…2bar; 0…5bar; 0…10bar; 0…20bar; 0…50bar; 0…100bar;0…200bar; 0…400bar |
| Output | 1 NPN or PNP Transistor Output, max. 500mA; NO or NC contact |
| Dimensions | 66mm wide x 95mm high |
| Weight | 200 grams |
| Current de alimentacion 24 Vdc ± 15% | Supply voltage 24 Vdc ± 15% |
| withsumo de Current 25 mA | Current withsumption 25 mA |
| output Transistor PNP o NPN, 24 Vdc, máx. 500 mA | Output PNP or NPN transistor output, 24Vdc, max. 500 mA |
| Temperature compensada -20°C…+80°C, precisión total ±2% | temperature compensation -20°C to +80°C, precision ±2% overall |
| Precisión ± 0.5% F.S. a 25°C | Accuracy ± 0.5% F.S. at 25°C |
| Fluid temperature –20°C…+80°C | Fluid temperature -20°C to +80°C |
| Ambient temperature –20°C…+80°C | Environment temperature -20°C to +80°C |
| Temperature de almaceniamento –40°C…+100°C | Storage temperature -40°C to +100°C |
