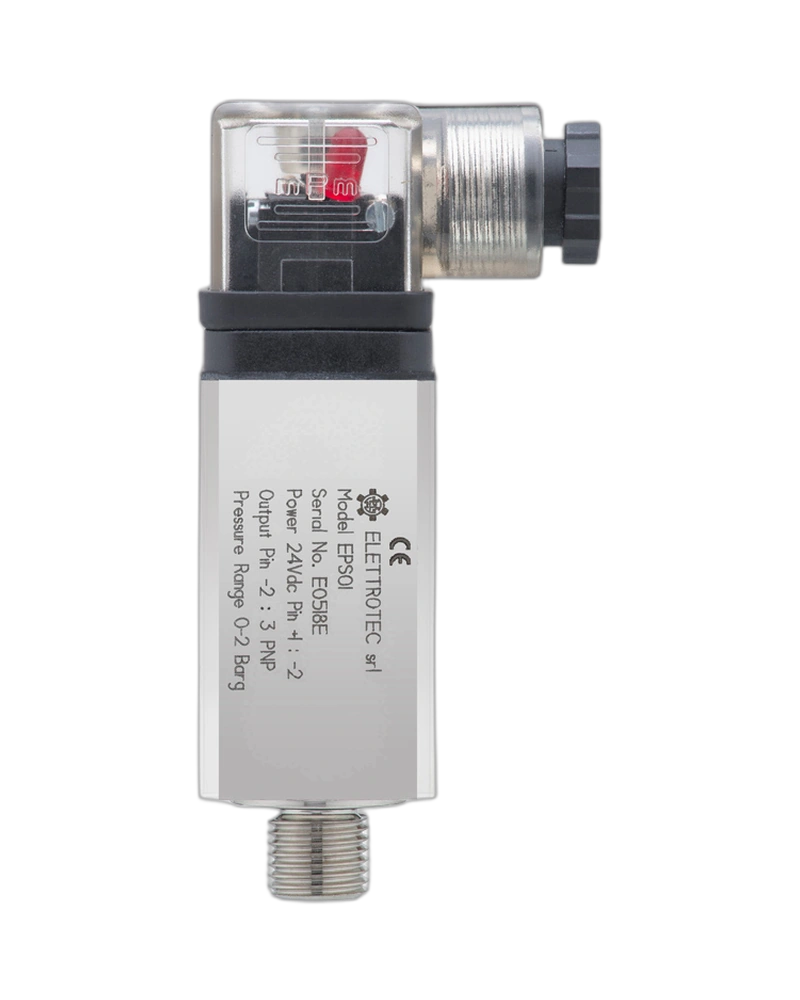

The ELETTROTEC EPS01A20CPANR14 - EPS01 - Electronic pressure switch with ceramic sensor - EPS01 - Electronic pressure switch with ceramic sensor - EPS01 Electronic pressure switch with ceramic sensor is a precision pressure transmitter designed for industrial applications. This robust device offers high accuracy (±1.5% fs at 25°C), operates across a wide temperature range (-20°C to +80°C), and supports multiple pressure ranges (0–200 bar). With a 24Vdc ±15% power supply and NPN/PNP output options, it delivers reliable performance for critical pressure monitoring systems.
The ELETTROTEC EPS01A20CPANR14 - EPS01 - Electronic pressure switch with ceramic sensor - EPS01 - Electronic pressure switch with ceramic sensor - EPS01 Electronic pressure switch with ceramic sensor is a high-precision industrial pressure transmitter engineered for demanding environments. This ceramic sensor-based device provides accurate pressure measurement with ±1.5% fs accuracy at 25°C, ensuring reliable operation across temperatures from -20°C to +80°C. Its versatile pressure range options (0–200 bar) and robust construction make it suitable for applications requiring precise pressure switching in industrial automation, fluid control systems, and process monitoring.
The EPS01A20CPANR14 - EPS01 - Electronic pressure switch with ceramic sensor - EPS01 features a ceramic sensor for enhanced durability and precision. It operates with a 24Vdc ±15% power supply and consumes 12 mA of current. The device supports pressure ranges from 0 to 200 bar, with burst pressure ratings up to 400 bar depending on the model. Output options include NPN or PNP open collector signals (max 500mA) with NO or NC contacts. The pressure port uses standard G 1/4" parallel threading for secure connections.
This pressure switch functions reliably in environments ranging from -20°C to +80°C. The EPS01A20CPANR14 - EPS01 - Electronic pressure switch with ceramic sensor is designed for continuous operation within these temperature limits, ensuring stability in both cold and hot industrial settings. Storage conditions extend to -40°C to +100°C, allowing for safe handling and long-term storage without degradation.
The EPS01A20CPANR14 - EPS01 - Electronic pressure switch with ceramic sensor - EPS01 is ideal for industrial applications requiring precise pressure monitoring, such as hydraulic systems, pneumatic controls, and process automation. Its ceramic sensor ensures resistance to corrosion and contamination, making it suitable for harsh environments where traditional metal sensors might fail.
The EPS01A20CPANR14 - EPS01 - Electronic pressure switch with ceramic sensor - EPS01 - Electronic pressure switch with ceramic sensor is an industrial Pressure Transmitter. Selection should be based on the documented characteristics and the requirements of the intended application.
| Feature | Specification |
|---|---|
| Accuracy | ±1.5% fs a 25°C |
| temperature Range / Accuracy | -20°C…+80°C |
| Power supply | 24Vdc ±15% |
| Pressure range | 0…2bar; 0…5bar; 0…10bar; 0…20bar; 0…50bar; 0…100bar; 0…200bar |
| Output | 1 NPN or PNP Open Collector Output, max 500mA; NO or NC contact |
| Dimensions | 30mm wide x 99mm high |
| Weight | 250 grams |
| Burst pressure | 7 bar; 12 bar; 25 bar; 50 bar; 120 bar; 200 bar; 400 bar (according to the model required) |
| Supply voltage 24 Vdc ± 15% | Supply voltage 24 Vdc ± 15% |
| Current withsumption 12 mA | Current withsumption 12 mA |
| Output PNP or NPN transistor, 24 Vdc, max. 500 mA | Output PNP or NPN Transistor output, 24 Vdc, max. 500 mA |
| Accuracy ± 1.5% F.S. a 25°C | Accuracy ± 1.5% F.S. at 25°C |
| Ambient temperature –20°C…+80°C | Environment temperature -20°C to +80°C |
| Storage temperature –40°C…+100°C | Storage temperature -40°C to +100°C |
| Pressure port cylindrical G 1/4” pipe thread() | Pressure port G 1/4” parallel (standard) |
