Explore performance details, construction highlights, applications, and technical information in one clear overview.

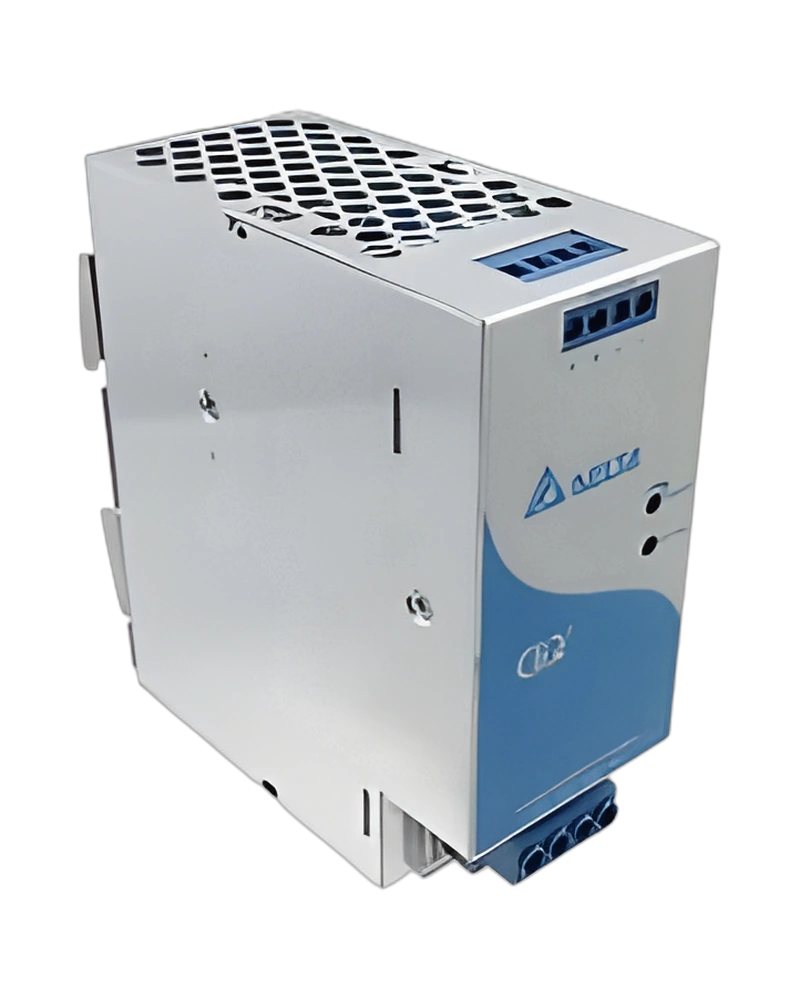

The DRP024V120W3AA from DELTA is an industrial Power Supply intended for professional equipment and system applications. The available product-specific technical information provides a practical basis for evaluation, selection and integration.
| Feature | Description |
|---|---|
| Nominal Input Voltage | 3 x 400-500 Vac |
| Input Voltage Range1) | 3 x 320-600 Vac (3-Phase) or 2 x 360-600 Vac (2-Phase) |
| Input Frequency Range | 47-63 Hz |
| Input Current | < 0.50 A @ 3 x 400 Vac, < 0.40 A @ 3 x 500 Vac |
| Nominal Output Voltage | 24 Vdc |
| Output Voltage Adjustment Range | 24-28 Vdc |
| Output Current | 20.0 A (continuously operating at 24 V) 30.0 A (Power Boost for 5 seconds at 24 V, refer to the details in the Functions section) 40.0 A (Power Boost for 2 seconds at 24 V, refer to the details in the Functions section) |
| Terminal | Input 4 Pins (Rated 600 V/35 A) |
The documented technical characteristics for this model include Nominal Input Voltage: 3 x 400-500 Vac; Input Voltage Range1): 3 x 320-600 Vac (3-Phase) or 2 x 360-600 Vac (2-Phase); Input Frequency Range: 47-63 Hz; Input Current: < 0.50 A @ 3 x 400 Vac, < 0.40 A @ 3 x 500 Vac; Nominal Output Voltage: 24 Vdc; Output Voltage Adjustment Range: 24-28 Vdc; Output Current: 20.0 A (continuously operating at 24 V) 30.0 A (Power Boost for 5 seconds at 24 V, refer to the details in the Functions section) 40.0 A (Power Boost for 2 seconds at 24 V, refer to the details in the Functions section); Terminal: Input 4 Pins (Rated 600 V/35 A). These values should be considered together with the process, equipment configuration and operating requirements of the intended application.
The available product information identifies Nominal Input Voltage: 3 x 400-500 Vac; Input Voltage Range1): 3 x 320-600 Vac (3-Phase) or 2 x 360-600 Vac (2-Phase); Input Frequency Range: 47-63 Hz.
The DRP024V120W3AA can be evaluated for industrial systems and equipment requiring a Power Supply. Final application suitability depends on the process conditions, system configuration and the verified characteristics required for the installation.
When integrating the product, verify the applicable connections, mounting arrangement, operating conditions and compatibility requirements against the manufacturer's technical documentation.
For engineering and procurement decisions, compare the documented characteristics with the requirements of the intended application. Particular attention should be given to performance, connections, operating conditions, construction and other model-specific values.
The DELTADRP024V120W3AA is an industrial Power Supply for application-specific evaluation and selection. The verified technical information should be reviewed alongside the actual system requirements before purchase or installation.
| Feature | Specification |
|---|---|
| Nominal Input Voltage | 3 x 400-500 Vac |
| Input Voltage Range1) | 3 x 320-600 Vac (3-Phase) or 2 x 360-600 Vac (2-Phase) |
| Input Frequency Range | 47-63 Hz |
| Input Current | < 0.50 A @ 3 x 400 Vac, < 0.40 A @ 3 x 500 Vac |
| Nominal Output Voltage | 24 Vdc |
| Output Voltage Adjustment Range | 24-28 Vdc |
| Output Current | 20.0 A (continuously operating at 24 V) 30.0 A (Power Boost for 5 seconds at 24 V, refer to the details in the Functions section) 40.0 A (Power Boost for 2 seconds at 24 V, refer to the details in the Functions section) |
| Terminal | Input 4 Pins (Rated 600 V/35 A) |
| Output | 4 Pins (Rated 300 V/28 A) |
| Input Voltage Range | 85-264 Vac |
| Noise (1 Meter from power supply) | Sound Pressure Level (SPL) < 40 dBA |
| DRP024V120W3B | 3 x 320-600 Vac (3-Phase) or 2 x 360-600 Vac (2-Phase) 24 Vdc 5.00 A |
| Nominal Input Frequency | 50-60 Hz |
| DC Input Voltage Range2) | 450-800 Vdc |
