It uses Emitter/receiver sensing. The nominal sensing distance is 0,3 … 6 m.
The sensing principle is Emitter/receiver. The nominal sensing distance is 0,3 … 6 m.
The optical emission is Infrared. A switching frequency of [(0,2 x No.beams - 1) + 1] x 2 ms.
The output function is NPN+PNP. The operating voltage is 16,8…30 VDC, with load current of < 100 mA.
No-load supply current is ≤330 mA and leakage current is limited to ≤ 10 µA. Maximum ripple is < 1,2Vpp.
Short-circuit protection is Yes. Reverse polarity protection is Yes. Surge protection is Yes. Ingress protection is rated IP67.
Dimensions are 20 mm x 329 mm x 35 mm. Weight is 750 g.
The operating temperature range is - 10 °C…+ 55° C (Non-freezing).
Storage temperature is - 25 °C…+ 60° C (Non-freezing).

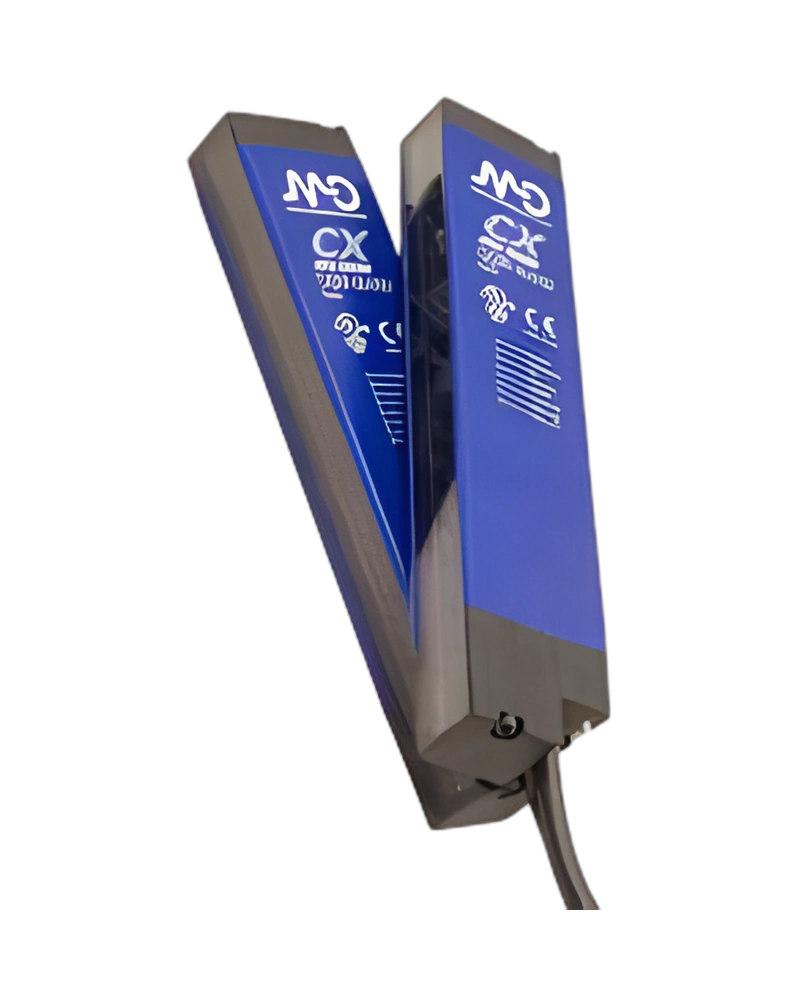

The manufacturer part number is CX2E0RB/10-032V. This model is manufactured by M.D. Micro Detectors. Number of beams is 33.
Controlled height is 320 mm. Time to availability is < 3s. External-light interference is limited to IEC EN 60947-5-2.
CX2E0RB/10-032V uses Emitter/receiver sensing with a nominal sensing distance of 0,3 … 6 m. For electrical integration, it provides operating voltage 16,8…30 VDC, switching frequency [(0,2 x No.beams - 1) + 1] x 2 ms. The physical configuration includes dimensions 20 mm x 329 mm x 35 mm. It is rated IP67 for an operating temperature range of - 10 °C…+ 55° C (Non-freezing).
| Specification | Details |
|---|---|
| Model | CX2E0RB/10-032V |
| Manufacturer part number | CX2E0RB/10-032V |
| Manufacturer | M.D. Micro Detectors |
| Output function | NPN+PNP |
| Switching frequency | [(0,2 x No.beams - 1) + 1] x 2 ms |
| Weight | 750 g |
| Active head material | PMMA |
| Operating temperature | - 10 °C…+ 55° C (Non-freezing) |
| Dimensions | 20 mm x 329 mm x 35 mm |
| Storage temperature | - 25 °C…+ 60° C (Non-freezing) |
| Number of beams | 33 |
| Controlled height | 320 mm |
| Nominal sensing distance | 0,3 … 6 m |
| Degree of protection | IP67 |
| Time to availability | < 3s |
| Short-circuit protection | Yes |
| Reverse polarity protection | Yes |
| Surge protection | Yes |
| Maximum ripple | < 1,2Vpp |
| External light interference | IEC EN 60947-5-2 |
| Operating voltage | 16,8…30 VDC |
| Load current | < 100 mA |
| No-load supply current | ≤330 mA |
| Leakage current | ≤ 10 µA |
| Emission | Infrared |
