Product Overview

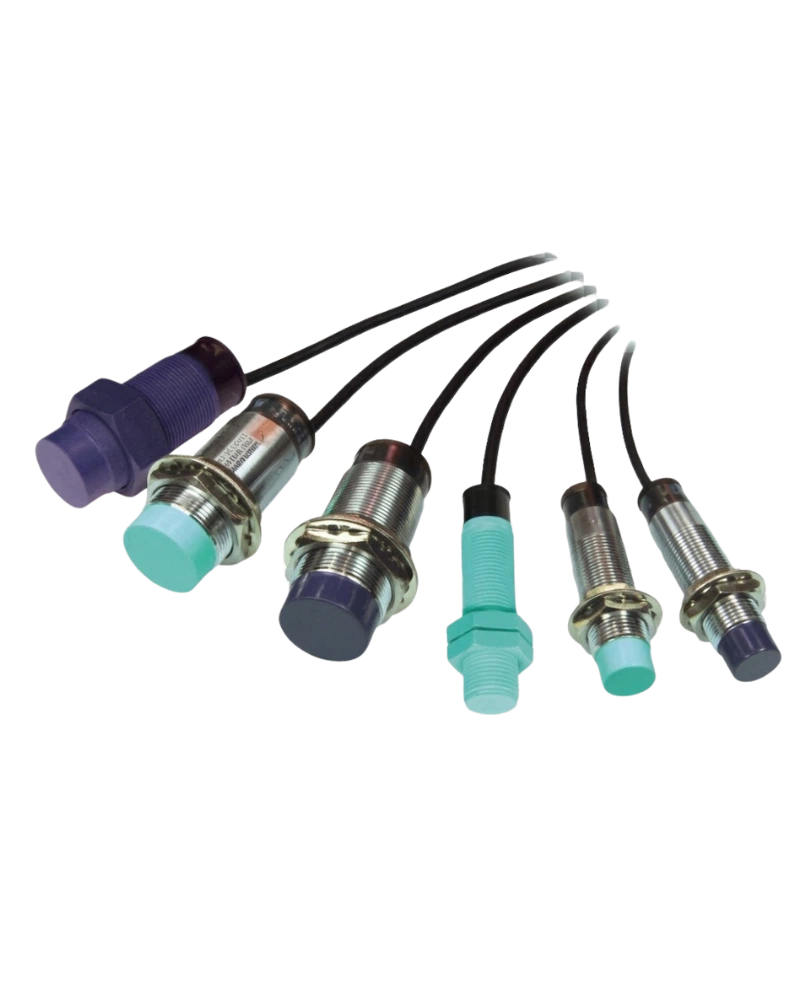

CUP series is a Hanyoung NUX proximity sensor for non-contact detection and machine sensing. The configuration is defined by its sensing method, sensing range, output arrangement and electrical requirements, with model information of NPN | CUP-18R- 8N□□ | CUP-18RP- 8N□□. Sensing distance: 8 ㎜ (Volume variation); Sensing distance: 15 ㎜ (Volume variation); Standard sensing object (㎜): Iron 50 x 50 x 1 (Grounded state); Hysteresis: Less than 20 % of sensing distance.

The sensing distance, target object, response time, output type and environmental limits are the key details to compare when selecting the sensor for a specific machine or detection point. Operation indication: Red LED; Weight: Cable type | 70g | 70g; Connector Cable type: 30g | 30g; Weight: Cable type | 120g | 120g.

Key Features

Key strengths of the CUP series come from the combination of its functional configuration and practical installation specifications. The following characteristics highlight the values that matter most when comparing the product with equipment requirements.

Sensing distance: 8 ㎜ (Volume variation); Standard sensing object (㎜): Iron 50 x 50 x 1 (Grounded state); Power voltage: 12 - 24 V d.c. (Usable voltage range 10 - 30 V d.c.); Control output: 200 mA max (Resistive load); Ambient temperature & humidity: -25 ~ 70 ℃ (less than ±10 % of sensing distance at temperature 20 ℃), 35 ~ 85 % R.H.

• Sensing distance: 8 ㎜ (Volume variation)
• Standard sensing object (㎜): Iron 50 x 50 x 1 (Grounded state)
• Power voltage: 12 - 24 V d.c. (Usable voltage range 10 - 30 V d.c.)
• Control output: 200 mA max (Resistive load)
• Ambient temperature & humidity: -25 ~ 70 ℃ (less than ±10 % of sensing distance at temperature 20 ℃), 35 ~ 85 % R.H
• Degree of protection: IP67 (IEC 60529)
• Sensing distance: 15 ㎜ (Volume variation)
• Hysteresis: Less than 20 % of sensing distance
• Sensing distance: 8 | 8 ㎜ (only with CUP-18□-8)
• Control output: Switching capacity : 5-250 mAd.c. or less (Resistive load), Residual voltage : 7 V or less(AC/DC)

Technical Characteristics

The CUP series technical profile is centred on sensing method, detection range, target characteristics, output behaviour and response time. These parameters define the sensor's operating window and electrical interface. Sensing distance: 8 | 8 ㎜ (only with CUP-18□-8); Control output: 200 mA max (Resistive load); Control output: Switching capacity : 5-250 mAd.c. or less (Resistive load), Residual voltage : 7 V or less(AC/DC); Leakage current: Max. 2 mA.

Additional technical characteristics include Power and output type: N | DC NPN output; Output state: A | Normal Open (NO); Response frequency: 50 Hz.

Design and Construction

The physical design of CUP series should be considered together with the installation environment and the available mounting or display arrangement. Connector Cable type: 80g | 80g; Material: ▪CUP-18R/CUP-30R Case : brass (chrome plated) ▪Detection surface : PBT ▪CUP-18RP/CUP-30RP Integrated casing and detection surface : PBT; Weight: Cable type | 70g; Connector Cable type: 30g.

Further construction and environmental details include Weight: Cable type | 120g; Connector Cable type: 80g; Material: ▪CUP-18R/CUP-30R (Case : brass chrome plating, sensing surface : PBT resin) ▪CUP-18RP/CUP-30RP (Case and sensing surface one body type : PBT resin).

Integration and Operation

Integration of CUP series starts with matching its sensing method, supply voltage, output type and connection method to the control system. Power voltage: 12 - 24 V d.c. (Usable voltage range 10 - 30 V d.c.); Current consumption: Max. 10 mA; Response frequency: ▪DC : 40 ㎐ ▪AC : 20 ㎐; Power voltage: 20 - 240 V a.c. 50 - 60 Hz / 20 - 240 V d.c. (usable voltage range 18 - 250 V a.c. 50 - 50 Hz, 250 V d.c.).

Additional operating and interface details include . These values provide a practical reference for wiring, setup and normal operation within the selected configuration.

Selection and Use

Choose CUP series by confirming the exact model or configuration against the required operating conditions. The available model information is NPN | CUP-18R- 8N□□ | CUP-18RP- 8N□□. Model: NPN | CUP-18R- 8N□□ | CUP-18RP- 8N□□; Model: NPN | CUP-30R- 15N□□ | CUP-30RP- 15N□□; Model: CUP -18R- 8F□□ | CUP -18RP- 8F□□; Model: CUP -30R- 15F□□ | CUP -30RP- 15F□□.

Before installation, confirm Model: Code | Content; Model: M | A | B | C | D | E | F | G | H | I; Protection circuit: Power reversely connected protective circuit, surge protective circuit and over current protective circuit are built-in.. Matching the model, electrical ratings, signal requirements, physical arrangement and environmental limits helps keep the product within its specified operating conditions.
