Explore performance details, construction highlights, applications, and technical information in one clear overview.
The optical emission is Red. A switching frequency of 400 Hz.
The output type is PNP. The output function is NO+NC.
The operating voltage is 16…30 VDC, with load current of 100 mA. No-load supply current is 100 mA and leakage current is limited to ≤100 µA.
Maximum ripple is ≤ 10%. Short-circuit protection is Yes (Automatic reset). Reverse polarity protection is Yes. Surge protection is Yes.
Ingress protection is rated IP67.
Dimensions are 107 mm x 20 mm x 36 mm and the connection is M12 Connector. Weight is 100 g.
The operating temperature range is -10 °C…+ 55° C (Non-freezing). EMC compatibility is EN 60947-5-2.

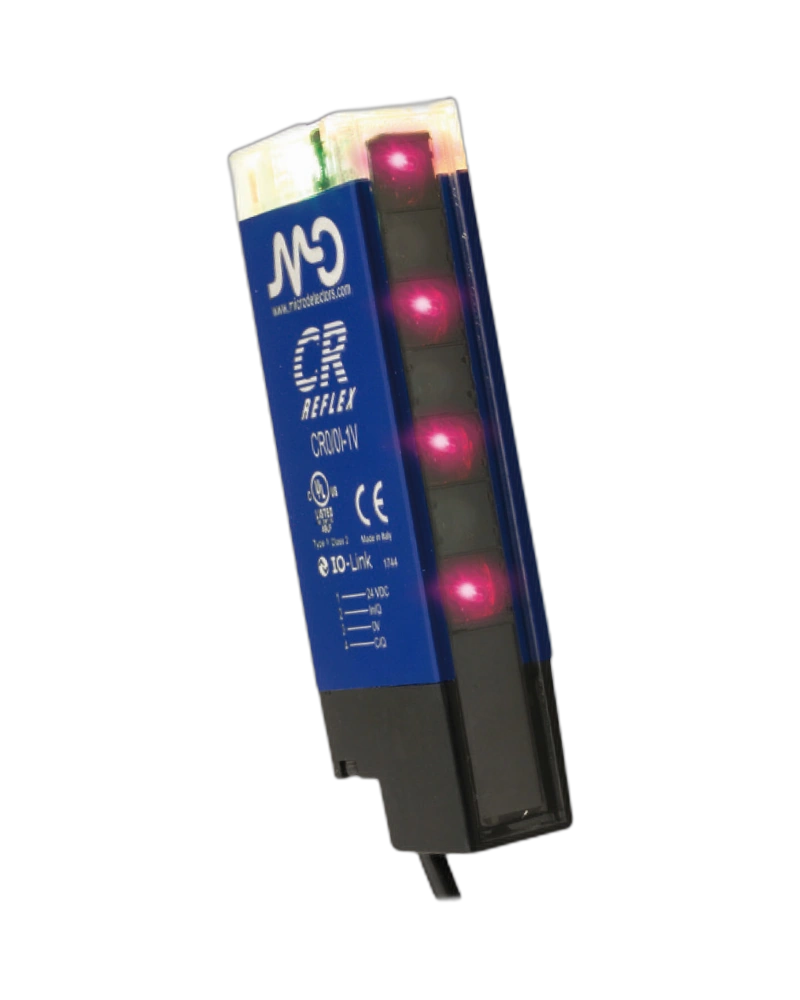

The manufacturer part number is CR0/BP-1V. This model is manufactured by M.D. Micro Detectors. Number of beams is 6.
Controlled height is 69 mm. Time to availability is 300 ms.
For electrical integration, it provides output type PNP, operating voltage 16…30 VDC, switching frequency 400 Hz. The physical configuration includes dimensions 107 mm x 20 mm x 36 mm, M12 Connector connection. It is rated IP67 for an operating temperature range of -10 °C…+ 55° C (Non-freezing).
| Specification | Details |
|---|---|
| Model | CR0/BP-1V |
| Manufacturer part number | CR0/BP-1V |
| Manufacturer | M.D. Micro Detectors |
| Output type | PNP |
| Output function | NO+NC |
| Switching frequency | 400 Hz |
| Weight | 100 g |
| Active head material | PMMA |
| Operating temperature | -10 °C…+ 55° C (Non-freezing) |
| Dimensions | 107 mm x 20 mm x 36 mm |
| Connection | M12 Connector |
| Number of beams | 6 |
| Controlled height | 69 mm |
| Thermal drift Sr | ≤10% |
| Degree of protection | IP67 |
| EMC compatibility | EN 60947-5-2 |
| Time to availability | 300 ms |
| Short-circuit protection | Yes (Automatic reset) |
| Reverse polarity protection | Yes |
| Surge protection | Yes |
| Maximum ripple | ≤ 10% |
| Operating voltage | 16…30 VDC |
| Load current | 100 mA |
| No-load supply current | 100 mA |
| Leakage current | ≤100 µA |
| Emission | Red |
