It uses Receiver sensing. The nominal sensing distance is 0…2 m.
The sensing principle is Receiver. The nominal sensing distance is 0…2 m.
The optical emission is Infrared (880 nm).
For electrical integration, the output configuration is PNP NO. The operating voltage is 12-24Vcc, with load current of ≤100 mA.
No-load supply current is 50 mA and leakage current is limited to 10 µA. Maximum ripple is ≤ 10%.
Reverse polarity protection is Yes. Surge protection is Yes. Ingress protection is rated IP67.
The housing is PBT, while the active head uses PC. Dimensions are 60 mm x 132 mm x 30 mm.
Weight is 260 … 300 g.
Tightening torque is 25 nm.
The operating temperature range is -25 °C…+50 °C (Non-freezing).
Storage temperature is -40 °C…+80 °C.

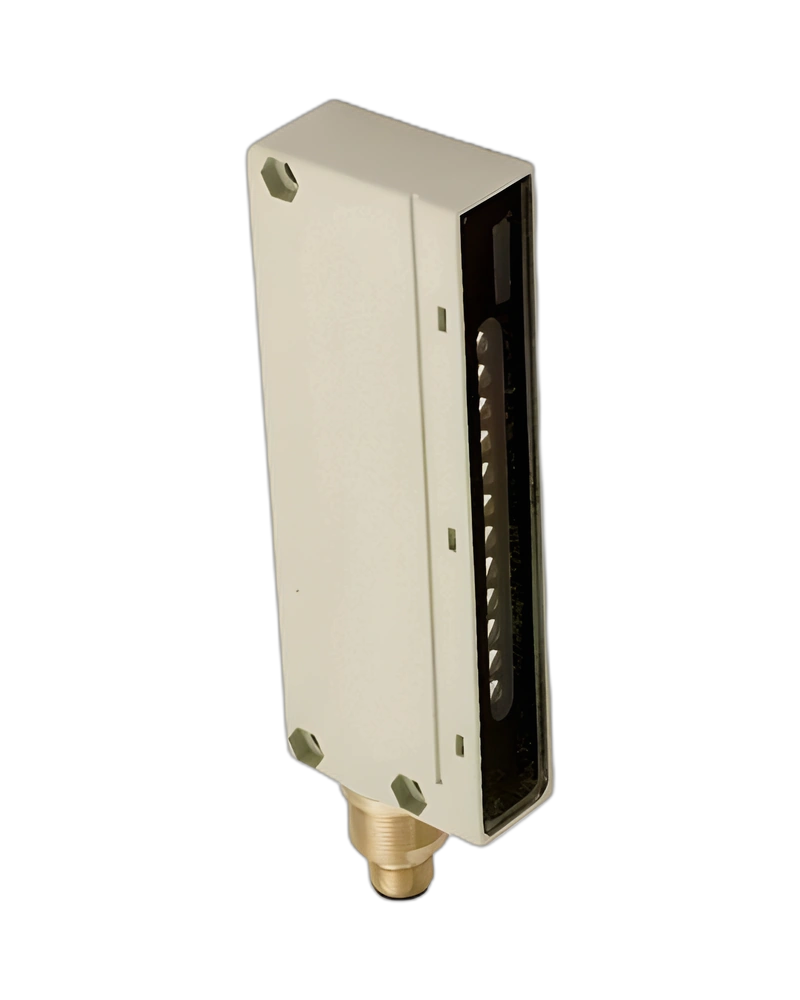

The manufacturer part number is BX80A/1P-1H. This model is manufactured by M.D. Micro Detectors. Number of beams is 12.
Controlled height is 70 mm. Time to availability is 500 ms.
BX80A/1P-1H uses Receiver sensing with a nominal sensing distance of 0…2 m. For electrical integration, it provides output configuration PNP NO, operating voltage 12-24Vcc. The physical configuration includes PBT housing, dimensions 60 mm x 132 mm x 30 mm. It is rated IP67 for an operating temperature range of -25 °C…+50 °C (Non-freezing).
| Specification | Details |
|---|---|
| Model | BX80A/1P-1H |
| Output configuration | PNP NO |
| Manufacturer part number | BX80A/1P-1H |
| Manufacturer | M.D. Micro Detectors |
| Output type | PNP |
| Weight | 260 … 300 g |
| Active head material | PC |
| Housing material | PBT |
| Tightening torque | 25 nm |
| Operating temperature | -25 °C…+50 °C (Non-freezing) |
| Dimensions | 60 mm x 132 mm x 30 mm |
| Storage temperature | -40 °C…+80 °C |
| Operating principle | Receiver |
| Number of beams | 12 |
| Controlled height | 70 mm |
| Nominal sensing distance | 0…2 m |
| Thermal drift Sr | ≤10% |
| Degree of protection | IP67 |
| Time to availability | 500 ms |
| Reverse polarity protection | Yes |
| Surge protection | Yes |
| Maximum ripple | ≤ 10% |
| Operating voltage | 12-24Vcc |
| Load current | ≤100 mA |
| No-load supply current | 50 mA |
| Leakage current | 10 µA |
| Emission | Infrared (880 nm) |
