It uses Receiver sensing. The nominal sensing distance is 0,3 … 6 m.
The sensing principle is Receiver. The nominal sensing distance is 0,3 … 6 m.
The optical emission is Infrared.
The output type is NPN+PNP. The output function is No.
The operating voltage is 10-26 VDC, with load current of ≤100 mA. No-load supply current is 50 mA and leakage current is limited to 10 µA.
Maximum ripple is ≤ 10%. Short-circuit protection is Automatic reset. Reverse polarity protection is Yes. Surge protection is Yes.
Ingress protection is rated IP67.
LED indicators is Red, Yellow.
The housing material is PBT. Dimensions are 45 mm x 145 mm x 20 mm and the connection is M12 Connector.
Weight is 230 g.
Tightening torque is 25 nm.
The operating temperature range is 0 °C…+ 50° C (Non-freezing). EMC compatibility is EN 60947-5-2.

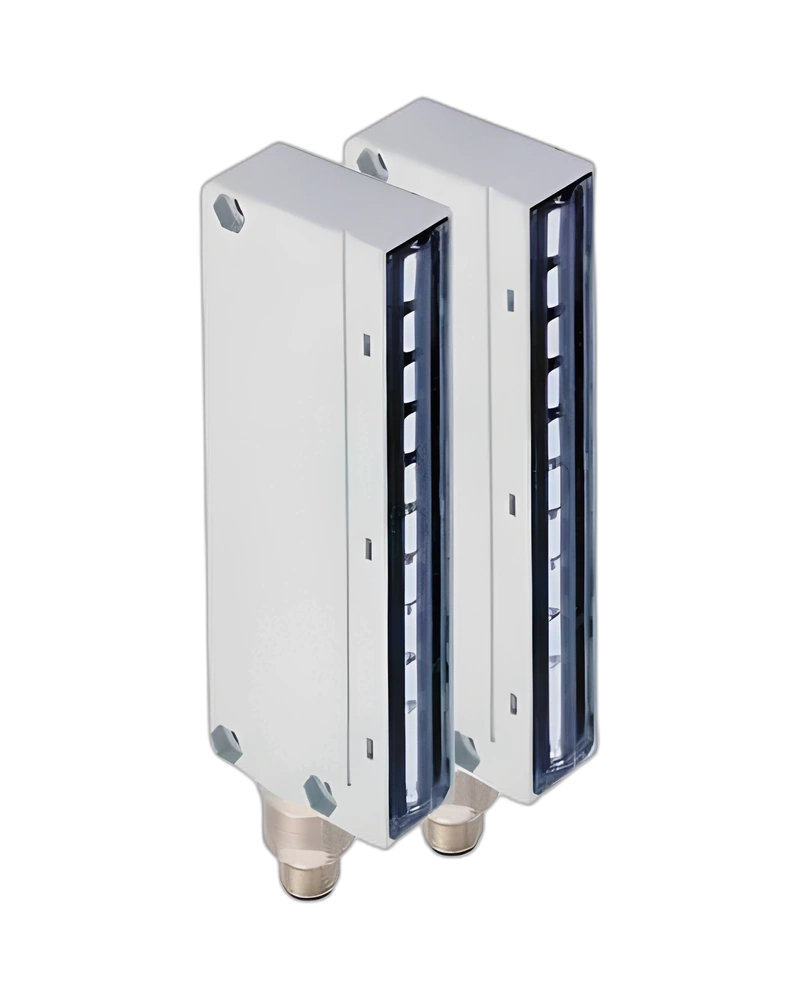

The manufacturer part number is BX10R/AD-HB6A. This model is manufactured by M.D. Micro Detectors. Number of beams is 10.
Controlled height is 90 mm. Time to availability is CE. External-light interference is limited to 1000 lx (Incandescent lamp), 1500 lx (Sunlight).
BX10R/AD-HB6A uses Receiver sensing with a nominal sensing distance of 0,3 … 6 m. For electrical integration, it provides output type NPN+PNP, operating voltage 10-26 VDC. The physical configuration includes PBT housing, dimensions 45 mm x 145 mm x 20 mm, M12 Connector connection. It is rated IP67 for an operating temperature range of 0 °C…+ 50° C (Non-freezing).
| Specification | Details |
|---|---|
| Model | BX10R/AD-HB6A |
| Manufacturer part number | BX10R/AD-HB6A |
| Manufacturer | M.D. Micro Detectors |
| Output type | NPN+PNP |
| Output function | No |
| Weight | 230 g |
| Housing material | PBT |
| Tightening torque | 25 nm |
| Operating temperature | 0 °C…+ 50° C (Non-freezing) |
| Dimensions | 45 mm x 145 mm x 20 mm |
| Connection | M12 Connector |
| Operating principle | Receiver |
| Number of beams | 10 |
| Controlled height | 90 mm |
| Nominal sensing distance | 0,3 … 6 m |
| Thermal drift Sr | ≤10% |
| Degree of protection | IP67 |
| EMC compatibility | EN 60947-5-2 |
| Time to availability | CE |
| Short-circuit protection | Automatic reset |
| Reverse polarity protection | Yes |
| Surge protection | Yes |
| Maximum ripple | ≤ 10% |
| External light interference | 1000 lx (Incandescent lamp), 1500 lx (Sunlight) |
| Operating voltage | 10-26 VDC |
| LED indicators | Red, Yellow |
| Load current | ≤100 mA |
| No-load supply current | 50 mA |
| Leakage current | 10 µA |
| Emission | Infrared |
