Product Overview

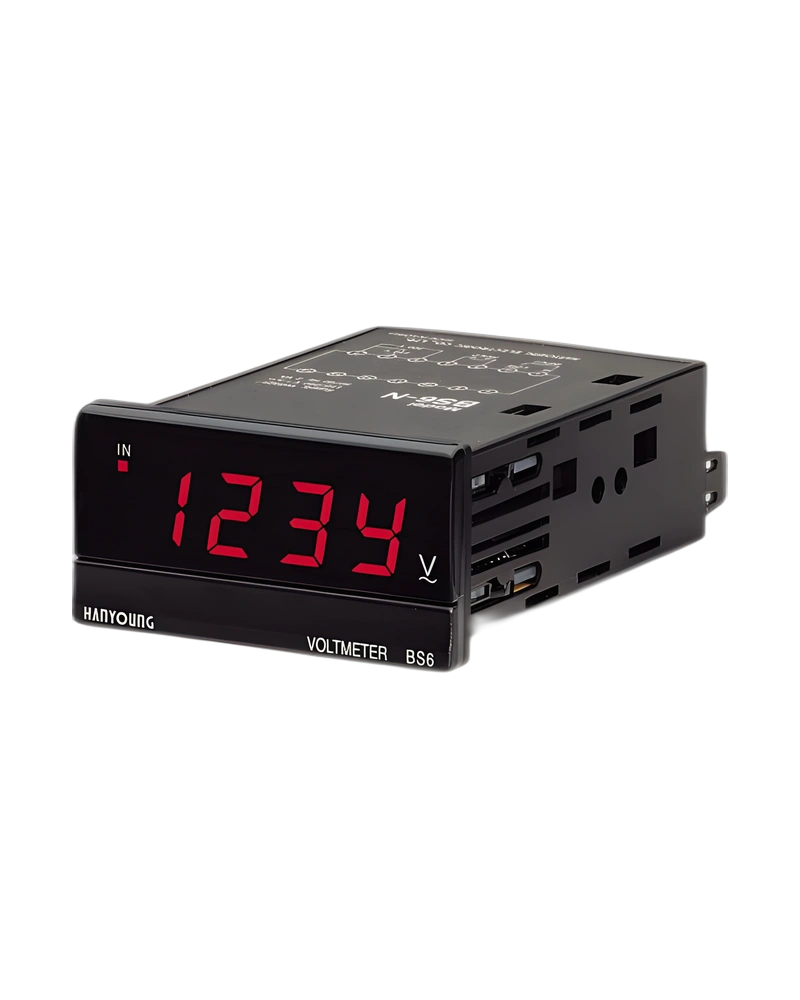

BS series is a Hanyoung NUX panel meter designed for industrial measurement, indication and process monitoring. Its configuration is determined by the available input signals, measurement or recording functions, display and output characteristics, with model information of BS1 | BS3 | BS6. Input signal: voltage, current, and instrumentation signal inputs (4 - 20 ㎃ d.c. or 1 - 5 V d.c.); Input type: A | 10 | AC Voltage input; input type: A | 10 | AC voltmeter (AC); Sampling cycle: 400 ms | 300 ms.

The listed measurement range, accuracy, input method, display format and connection details provide the main selection points for panel and control-system integration. Maximum number of rows displayed: 3½ digit ±1999; Display unit: 7-segment LED; Polarity display: If the input signal is reversed Automatically displays " - " (for DC specs); Display of range underrun: -1□□□ (for DC specifications).

Key Features

Key strengths of the BS series come from the combination of its functional configuration and practical installation specifications. The following characteristics highlight the values that matter most when comparing the product with equipment requirements.

Maximum number of rows displayed: 3½ digit ±1999; Measurement and indication method: Indication of RMS values using full-wave rectification; Input type: A | 10 | AC Voltage input; Input signal: voltage, current, and instrumentation signal inputs (4 - 20 ㎃ d.c. or 1 - 5 V d.c.); Power supply voltage: - | 110 / 220 V a.c..

• Maximum number of rows displayed: 3½ digit ±1999
• Measurement and indication method: Indication of RMS values using full-wave rectification
• Input type: A | 10 | AC Voltage input
• Input signal: voltage, current, and instrumentation signal inputs (4 - 20 ㎃ d.c. or 1 - 5 V d.c.)
• Power supply voltage: - | 110 / 220 V a.c.
• Power voltage: 100-240 V a.c. 50/60 ㎐ Allowable voltage fluctuation range : 85 to 110% | 110/220 V a.c. 50/60 Hz compatible 24 V d.c. 2.5 W
• Ambient temperature: -10 to 55 ℃ (however, there should be no icing) | 0 to 50 ℃ (however, there should be no icing)

Technical Characteristics

The main technical characteristics of BS series are defined by its electrical ratings, operating inputs or outputs, performance values and control or indication functions. These specifications provide the working limits for the selected configuration. Measurement range: 1 - 11 | Refer to Measuring Range; Measurement range: 1 | Refer to Measuring Range.; Measurement range: 1 - 11 | Refer to Measuring Range.; Measurement and indication method: Indication of RMS values using full-wave rectification.

Additional technical characteristics include Power voltage: 100-240 V a.c. 50/60 ㎐ Allowable voltage fluctuation range : 85 to 110% | 110/220 V a.c. 50/60 Hz compatible 24 V d.c. 2.5 W; Voltage fluctuation rate: 15 to 10% of power voltage | ±10% of power voltage; Power consumption: 4 VA or lower | 2 VA or lower.

Design and Construction

The physical design of BS series should be considered together with the installation environment and the available mounting or display arrangement. Weight: 150g | 350g | 250g; Insulation resistance: 100 MΩ or higher (500 V d.c. in megaohms), between the external terminal and the casse; Dielectric strength: 2000 V a.c. or higher, 1 Min. between the external terminal and the case | 1500 V a.c. for 1 minute, between the external terminal and the case; Vibration resistance: Malfunction : 10 - 55 Hz, single amplitude of 0.5 mm, 1 hour in each direction X· Y· Z Durability : 10 - 55 Hz, single amplitude of 0.75 mm, 2 hours in each direction X· Y.

Further construction and environmental details include Shock resistance: Malfunction : 100 m/s2, 3 times in each direction X·Y·Z Durability : 300 m/s2, 3 times in each direction X·Y·Z; Ambient temperature: -10 to 55 ℃ (however, there should be no icing) | 0 to 50 ℃ (however, there should be no icing); Ambient humidity: relative humidity 35 to 85% R.H..

Integration and Operation

Integration of BS series begins with matching its connection, input or control signal and output requirements to the surrounding equipment. Response time: approximately 3 seconds (maximum range) | approximately 2 seconds (maximum range); Output: N | Display Only; Output: N | Only for indication; Power supply voltage: - | 110 / 220 V a.c..

Additional operating and interface details include Power supply voltage: No-mark | 110/220 V a.c. 50/60 ㎐; Allowable voltage fluctuation range: 85 to 110%. These values provide a practical reference for wiring, setup and normal operation within the selected configuration.

Selection and Use

Choose BS series by confirming the exact model or configuration against the required operating conditions. The available model information is BS1 | BS3 | BS6. Model: BS1 | BS3 | BS6; Model: Code | Content; Storage temperature: -20 to 65 ℃ (however, there should be no icing) | -10 to 70 ℃ (however, there should be no icing); Maximum number of rows displayed: 3½ digit ±1999.

Before installation, confirm Measurement and indication method: Indication of RMS values using full-wave rectification; Input type: A | 10 | AC Voltage input; Input signal: voltage, current, and instrumentation signal inputs (4 - 20 ㎃ d.c. or 1 - 5 V d.c.). Matching the model, electrical ratings, signal requirements, physical arrangement and environmental limits helps keep the product within its specified operating conditions.
