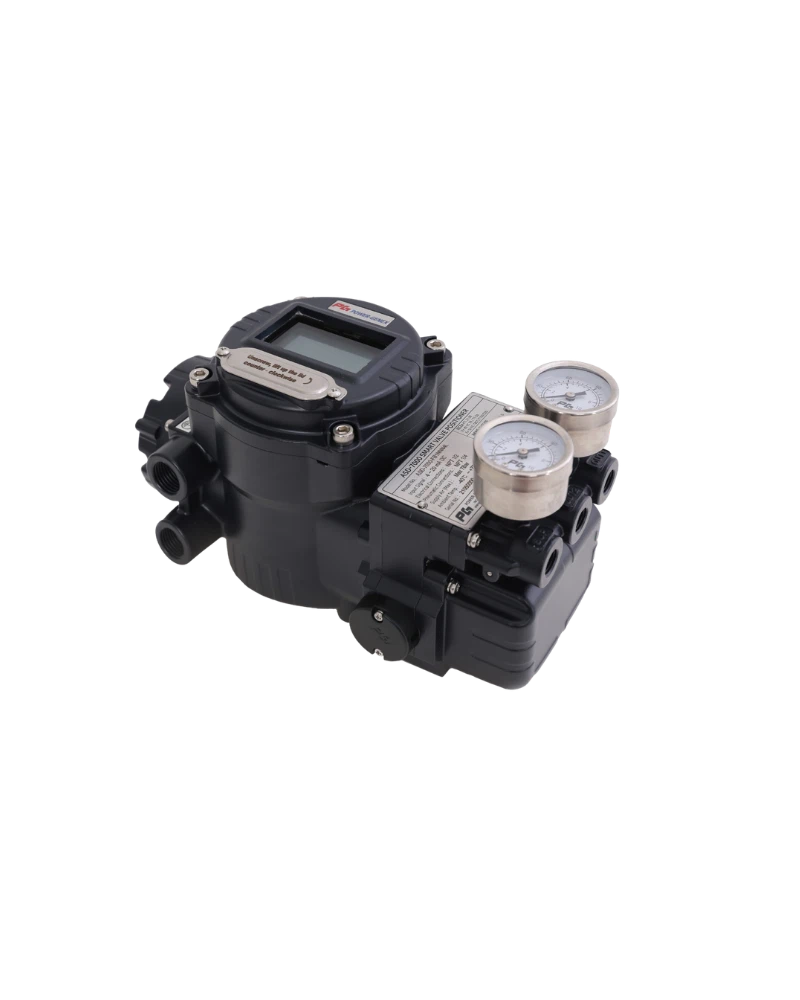

Product Overview ASD-7000 Smart positioner is designed for dependable industrial valve automation, with the control, pneumatic, feedback and protection characteristics required by its product family. The configuration supports practical installation and commissioning through defined interfaces and application-specific options. The technical values below are specific to this product family.
Technical Specifications 4–20 mA loop powered; 3.6–50 mA; 6.8 V/340 Ω without HART, 7.8 V/390 Ω with HART, 9.5 V/475 Ω with advanced diagnostics; output 0–7 bar; supply 1.4–7 bar; 250/300 L/min capacity at 1.4/6 bar; 2.5/3.0 L/min consumption; linear 10–120 mm; rotary 30–150°; remote 3–30 m; linearity <±0.5%; sensitivity/hysteresis <±0.3%; repeatability <±0.2%; IP66; aluminum/316 SS; -30 to +80 °C; IECEx/ATEX/KC; 4–20 mA transmitter option.
Key Features Product-specific control and pneumatic configuration Defined feedback and mounting interfaces Industrial-duty construction Configuration-dependent protection and options Application and Integration ASD-7000 Smart positioner is intended for industrial valve-control systems where compatible signal, air supply, actuator travel or angle and environmental protection are important to reliable operation.
The technical configuration for this product is defined by the following product-specific information: 4–20 mA loop powered 3.6–50 mA 6.8 V/340 Ω without HART, 7.8 V/390 Ω with HART, 9.5 V/475 Ω with advanced diagnostics output 0–7 bar supply 1.4–7 bar 250/300 L/min capacity at 1.4/6 bar 2.5/3.0 L/min consumption linear 10–120 mm rotary 30–150° remote 3–30 m linearity <±0.5% sensitivity/hysteresis <±0.3% repeatability <±0.2% IP66 aluminum/316 SS -30 to +80 °C IECEx/ATEX/KC 4–20 mA transmitter option.
Product-specific Power-Genex technical configuration Defined pneumatic and control interfaces Industrial-duty construction Configuration-dependent mounting and feedback options Application-focused valve automation
ASD-7000 Smart positioner is intended for integration into industrial process-control applications where dependable positioning, regulation, indication, air preparation, switching, or signal transmission is required, depending on the product function. Its documented technical characteristics provide the basis for selecting the appropriate configuration, connecting the product to the associated control system, and matching the device to the intended valve or pneumatic application.
Selection should be based on the exact product configuration, required input and output signals, operating medium, valve or actuator arrangement, environmental conditions, and the technical limits specified for the product. The detailed specification and feature information above should be used when matching this item with the surrounding control equipment.
| Feature | Specification |
|---|---|
| 4–20 mA loop | 4–20 mA loop powered |
| 3.6–50 mA | 3.6–50 mA |
| 6.8 V/340 Ω | 6.8 V/340 Ω without HART, 7.8 V/390 Ω with HART, 9.5 V/475 Ω with advanced diagnostics |
| output 0–7 bar | output 0–7 bar |
| supply 1.4–7 bar | supply 1.4–7 bar |
| Flow Capacity | 250/300 L/min capacity at 1.4/6 bar |
| Air Consumption | 2.5/3.0 L/min consumption |
| linear 10–120 mm | linear 10–120 mm |
| rotary 30–150° | rotary 30–150° |
| remote 3–30 m | remote 3–30 m |
| Linearity | <±0.5% |
| Sensitivity | sensitivity/hysteresis <±0.3% |
| Repeatability | <±0.2% |
| Ingress Protection | IP66 |
| Material | aluminum/316 SS |
| -30 to +80 | -30 to +80 °C |
| Approvals | IECEx/ATEX/KC |
| 4–20 mA transmitter | 4–20 mA transmitter option. |
