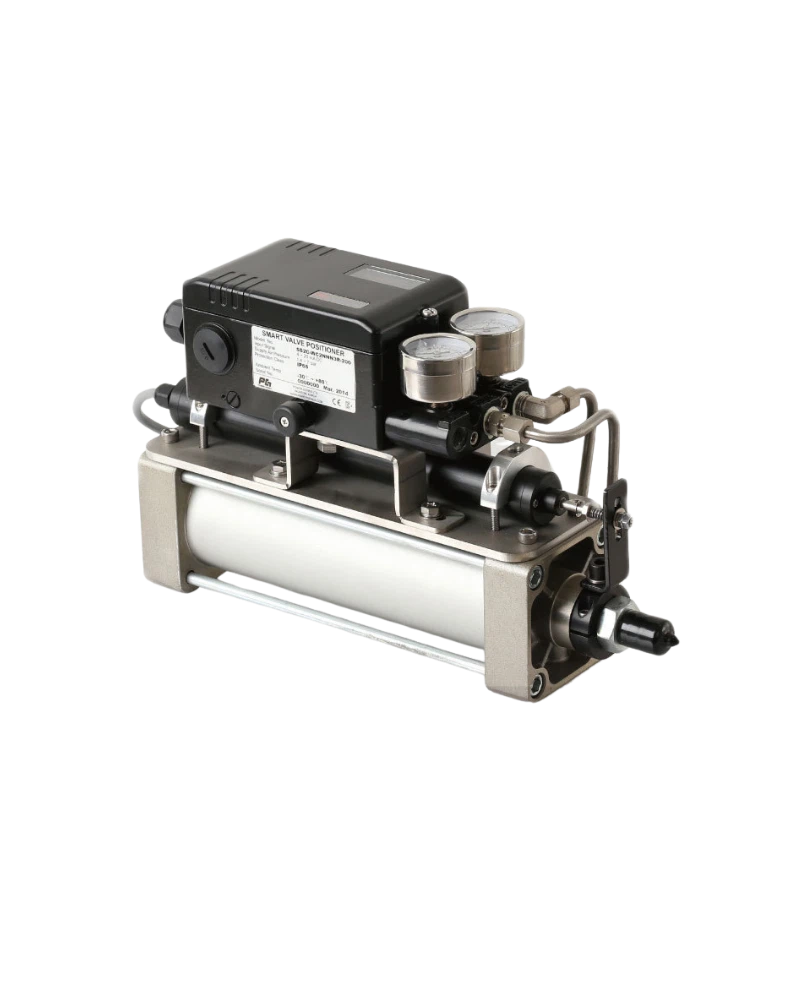

Product Overview CYLINDER POSITIONER - SS2-Cylinder is designed for dependable industrial valve automation, with the control, pneumatic, feedback and protection characteristics required by its product family. The configuration supports practical installation and commissioning through defined interfaces and application-specific options. The technical values below are specific to this product family.
Technical Specifications 4–20 mA @24 VDC; fieldbus 9–32 VDC; 3.6–50 mA; 1.4–7 bar supply; 0–100% supply output; 8–130 mm linear / 25–120° rotary; 80 L/min at 1.4 bar and 233 L/min at 6 bar; about 2.8 L/min air consumption; linearity <±0.3%; sensitivity <0.2%; hysteresis <0.2%; repeatability <0.2%; LCD; adjustable speed; 2 ms scan; direct/reverse; -40 to +80°C on SS2, flameproof SS3 T6 -30 to +75°C; IP66; HART/PROFIBUS PA/FOUNDATION Fieldbus options; 4–20 mA transmitter, alarm/SPDT and bypass options.
Key Features Product-specific control and pneumatic configuration Defined feedback and mounting interfaces Industrial-duty construction Configuration-dependent protection and options Application and Integration CYLINDER POSITIONER - SS2-Cylinder is intended for industrial valve-control systems where compatible signal, air supply, actuator travel or angle and environmental protection are important to reliable operation.
The technical configuration for this product is defined by the following product-specific information: 4–20 mA @24 VDC fieldbus 9–32 VDC 3.6–50 mA 1.4–7 bar supply 0–100% supply output 8–130 mm linear / 25–120° rotary 80 L/min at 1.4 bar and 233 L/min at 6 bar about 2.8 L/min air consumption linearity <±0.3% sensitivity <0.2% hysteresis <0.2% repeatability <0.2% LCD adjustable speed 2 ms scan direct/reverse -40 to +80°C on SS2, flameproof SS3 T6 -30 to +75°C IP66 HART/PROFIBUS PA/FOUNDATION Fieldbus options 4–20 mA transmitter, alarm/SPDT and bypass options.
Product-specific Power-Genex technical configuration Defined pneumatic and control interfaces Industrial-duty construction Configuration-dependent mounting and feedback options Application-focused valve automation
CYLINDER POSITIONER - SS2-Cylinder is intended for integration into industrial process-control applications where dependable positioning, regulation, indication, air preparation, switching, or signal transmission is required, depending on the product function. Its documented technical characteristics provide the basis for selecting the appropriate configuration, connecting the product to the associated control system, and matching the device to the intended valve or pneumatic application.
Selection should be based on the exact product configuration, required input and output signals, operating medium, valve or actuator arrangement, environmental conditions, and the technical limits specified for the product. The detailed specification and feature information above should be used when matching this item with the surrounding control equipment.
| Feature | Specification |
|---|---|
| 4–20 mA @24 | 4–20 mA @24 VDC |
| Communication | fieldbus 9–32 VDC |
| 3.6–50 mA | 3.6–50 mA |
| 1.4–7 bar supply | 1.4–7 bar supply |
| Output Pressure | 0–100% supply output |
| Feedback / Travel | 8–130 mm linear / 25–120° rotary |
| 80 L/min at | 80 L/min at 1.4 bar and 233 L/min at 6 bar |
| Air Consumption | about 2.8 L/min air consumption |
| Linearity | <±0.3% |
| Sensitivity | <0.2% |
| Hysteresis | <0.2% |
| Repeatability | <0.2% |
| Display | LCD |
| adjustable speed | adjustable speed |
| Scan Time | 2 ms scan |
| Action | direct/reverse |
| -40 to +80°C | -40 to +80°C on SS2, flameproof SS3 T6 -30 to +75°C |
| Ingress Protection | IP66 |
| Communication | HART/PROFIBUS PA/FOUNDATION Fieldbus options |
| 4–20 mA transmitter, | 4–20 mA transmitter, alarm/SPDT and bypass options. |
