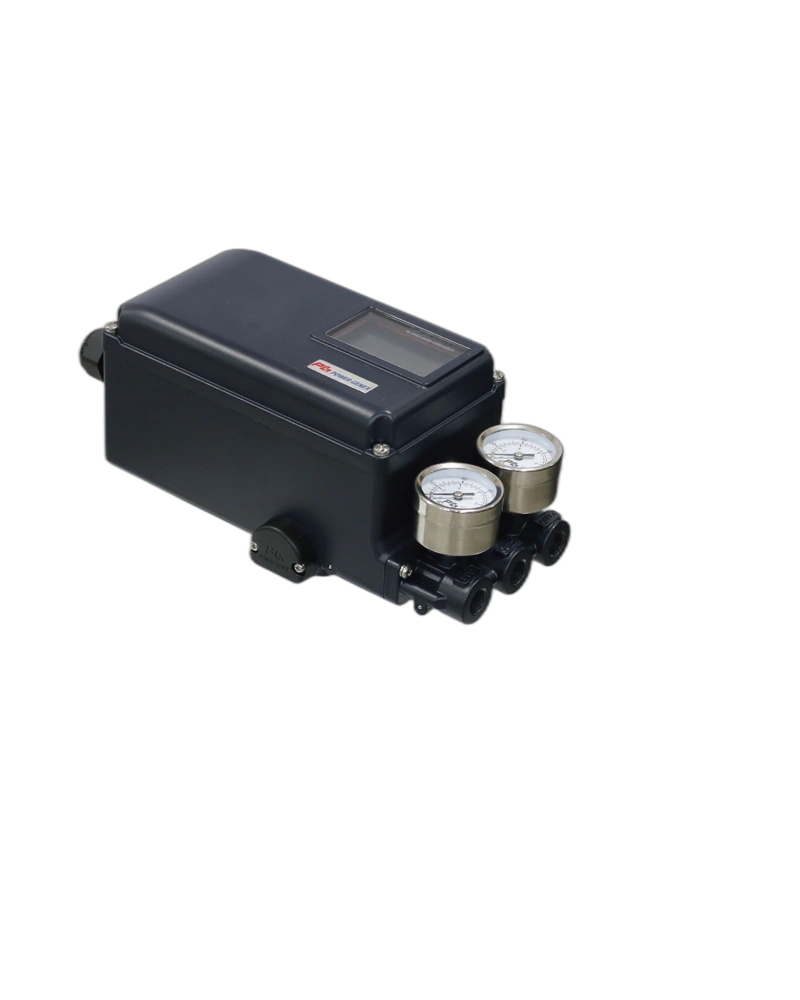

Product Overview ASD-5000 Smart positioner is designed for dependable industrial valve automation, with the control, pneumatic, feedback and protection characteristics required by its product family. The configuration supports practical installation and commissioning through defined interfaces and application-specific options. The technical values below are specific to this product family.
Technical Specifications ASD-5000: 4–20 mA loop powered, 3.6–50 mA; 6.8 V/340 Ω at 20 mA; HART 7; PROFIBUS PA/FOUNDATION Fieldbus 9–32 VDC; output 0–7 bar; 1.4–7 bar supply; 2.5 L/min at 1.4 bar and 3.0 L/min at 6 bar; 250/300 L/min capacity; linearity <±0.5%; sensitivity/hysteresis <±0.3%; repeatability <±0.2%; linear/EQ/quick/user characteristic; linear 10–180 mm or rotary 30–120° linkage, linkage-less 10–125 mm/30–120°; IP66; aluminum or 316 SS; -30 to +80°C; Ex ia approvals; optional 4–20 mA feedback, software limits, SPDT/P&F sensors.
Key Features Product-specific control and pneumatic configuration Defined feedback and mounting interfaces Industrial-duty construction Configuration-dependent protection and options Application and Integration ASD-5000 Smart positioner is intended for industrial valve-control systems where compatible signal, air supply, actuator travel or angle and environmental protection are important to reliable operation.
The technical configuration for this product is defined by the following product-specific information: ASD-5000: 4–20 mA loop powered, 3.6–50 mA 6.8 V/340 Ω at 20 mA HART 7 PROFIBUS PA/FOUNDATION Fieldbus 9–32 VDC output 0–7 bar 1.4–7 bar supply 2.5 L/min at 1.4 bar and 3.0 L/min at 6 bar 250/300 L/min capacity linearity <±0.5% sensitivity/hysteresis <±0.3% repeatability <±0.2% linear/EQ/quick/user characteristic linear 10–180 mm or rotary 30–120° linkage, linkage-less 10–125 mm/30–120° IP66 aluminum or 316 SS -30 to +80°C Ex ia approvals optional 4–20 mA feedback, software limits, SPDT/P&F sensors.
Product-specific Power-Genex technical configuration Defined pneumatic and control interfaces Industrial-duty construction Configuration-dependent mounting and feedback options Application-focused valve automation
ASD-5000 Smart positioner is intended for integration into industrial process-control applications where dependable positioning, regulation, indication, air preparation, switching, or signal transmission is required, depending on the product function. Its documented technical characteristics provide the basis for selecting the appropriate configuration, connecting the product to the associated control system, and matching the device to the intended valve or pneumatic application.
Selection should be based on the exact product configuration, required input and output signals, operating medium, valve or actuator arrangement, environmental conditions, and the technical limits specified for the product. The detailed specification and feature information above should be used when matching this item with the surrounding control equipment.
| Feature | Specification |
|---|---|
| ASD-5000 | 4–20 mA loop powered, 3.6–50 mA |
| 6.8 V/340 Ω | 6.8 V/340 Ω at 20 mA |
| Communication | HART 7 |
| Communication | PROFIBUS PA/FOUNDATION Fieldbus 9–32 VDC |
| output 0–7 bar | output 0–7 bar |
| 1.4–7 bar supply | 1.4–7 bar supply |
| 2.5 L/min at | 2.5 L/min at 1.4 bar and 3.0 L/min at 6 bar |
| Flow Capacity | 250/300 L/min capacity |
| Linearity | <±0.5% |
| Sensitivity | sensitivity/hysteresis <±0.3% |
| Repeatability | <±0.2% |
| linear/EQ/quick/user characteristic | linear/EQ/quick/user characteristic |
| Feedback / Travel | linear 10–180 mm or rotary 30–120° linkage, linkage-less 10–125 mm/30–120° |
| Ingress Protection | IP66 |
| Material | aluminum or 316 SS |
| -30 to +80°C | -30 to +80°C |
| Hazardous Area Approval | Ex ia approvals |
| Options | 4–20 mA feedback, software limits, SPDT/P&F sensors. |
